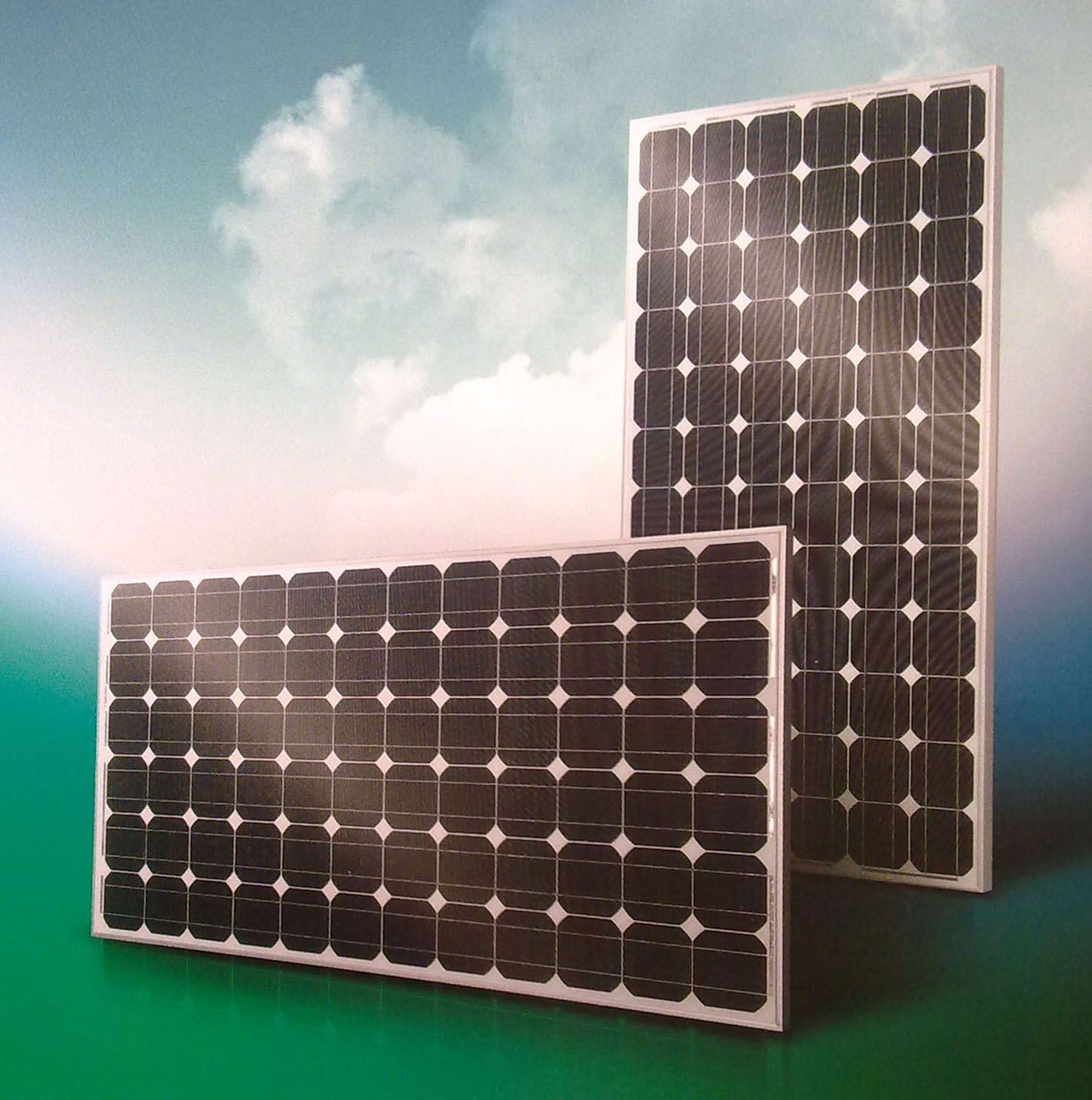

Bright solar panel is a high efficiency monocrystalline solar panel.
The panel adopts the international standard quality management system ISO9001: 2008 to control the quality.
The solar panel has passed the international certificate IEC 61215, IEC 61730, complying with CE standard
90%power output assurance for 10 years, and 80% power output assurance for 25 years. 5 years products warranty.
|
MECHANICAL CHARACTERISTCS ABSOLUTE MAXIMUM RATING |
|
Solar Cells |
Mono crystal Si 156 mm × 156 mm
Square, 6 × 12 pieces in series |
|
Dimension |
Length: 1956mm |
|
Width: 992mm |
|
Height: 50mm |
|
Weight |
27 kg |
|
Front Glass |
3.2 mm |
|
Frame |
Anodized aluminium alloy |
|
Cable |
0.9mwire (ø 4 mm² ) |
|
Diodes |
3 pieces schottky by-pass diodes |
|
Junction Box |
IP 65 Rated |
|
|
Parameter |
Values |
Unit |
|
Operating temperature |
From -40 to +85 |
º C |
|
Typical Application |
24 V DC |
|
Hail Diameter @ 80km/h |
Up to 25 |
mm |
|
Surface Maximum Load Capacity |
Up to 5400 |
Pa |
|
Maximum Series Fuse Rating |
10 |
|
|
IEC Application Class (IEC 61215) |
A |
|
Fire Rating (UL 1703) |
C |
|
Maximum System Voltage |
1000 V DC (IEC 61215) |
|
600 V (UL 1703) |
|
|
ELECTRICAL TYPICAL VALUES |
|
Model |
Rated Power
(Pmax) |
Tolerance |
Rated current (Imp) |
Rated Voltage
(Vmp) |
Short Circuit Current (Isc) |
Open circuit voltage (Voc) |
Module
Efficiency(%) |
|
BLD-72-6M240 |
240W |
± 3% |
6.94A |
34.6V |
7.75A |
43.4V |
12.37 |
|
BLD-72-6M245 |
245W |
± 3% |
7.06A |
34.7V |
7.87A |
43.6V |
12.63 |
|
BLD-72-6M250 |
250W |
± 3% |
7.18A |
34.8V |
7.90A |
43.8V |
12.88 |
|
BLD-72-6M255 |
255W |
± 3% |
7.31A |
34.9V |
7.97A |
44.0V |
13.14 |
|
BLD-72-6M260 |
260W |
± 3% |
7.43A |
35.0V |
8.05A |
44.2V |
13.40 |
|
BLD-72-6M265 |
265W |
± 3% |
7.54A |
35.1V |
8.10A |
44.4V |
13.66 |
|
BLD-72-6M270 |
270W |
± 3% |
7.67A |
35.2V |
8.15A |
44.6V |
13.92 |
|
BLD-72-6M275 |
275W |
± 3% |
7.79A |
35.3V |
8.22A |
44.8V |
14.17 |
|
BLD-72-6M280 |
280W |
± 3% |
7.91A |
35.4V |
8.30A |
45.0V |
14.43 |
|
BLD-72-6M285 |
285W |
± 3% |
8.03A |
35.5V |
8.38A |
45.2V |
14.69 |
|
BLD-72-6M290 |
290W |
± 3% |
8.15A |
35.6V |
8.45A |
45.4V |
14.95 |
|
BLD-72-6M295 |
295W |
± 3% |
8.26A |
35.7V |
8.53A |
45.6V |
15.20 |
|
BLD-72-6M300 |
300W |
± 3% |
8.39A |
35.8V |
8.60A |
45.8V |
15.46 |
|
BLD-72-6M305 |
305W |
± 3% |
8.50A |
35.9V |
8.67A |
46.0V |
15.72 |
|
BLD-72-6M310 |
310W |
± 3% |
8.61A |
36.0V |
8.75A |
46.2V |
15.98 |
|
NOCT ( Nominal Operation Temperature): 45º C± 2º C |
Voltage Temperature Coefficient: -0.35% / K |
|
Current Temperature Coefficient: -0.05% / K |
|
Power Temperature Coefficient: -0.48% / K |
|
