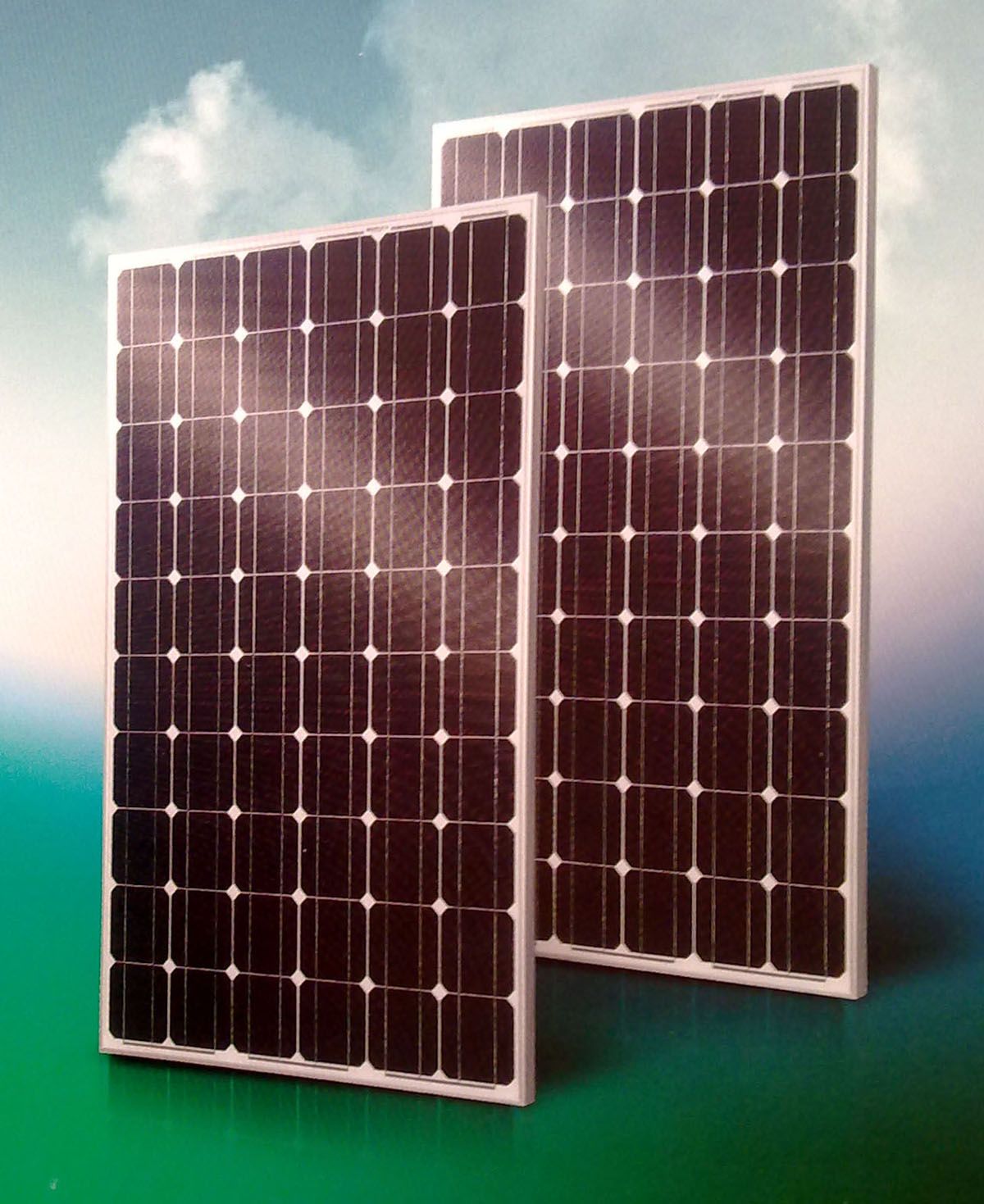

Bright solar panel is a high efficiency monocrystalline solar panel.
The panel adopts the international standard quality management system ISO9001: 2008 to control the quality.
The solar panel has passed the international certificate IEC 61215, IEC 61730, complying with CE standard
90%power output assurance for 10 years, and 80% power output assurance for 25 years. 5 years products warranty.
|
MECHANICAL CHARACTERISTCS ABSOLUTE MAXIMUM RATING |
|
Solar Cells |
Mono crystal Si 156 mm × 156 mm
Square, 6 × 10 pieces in series |
|
Dimension |
Length: 1640mm |
Width: 992mm
|
|
Height: 50mm |
|
Weight |
23.5kg |
|
Front Glass |
3.2 mm |
|
Frame |
Anodized aluminium alloy |
|
Cable |
0.9mwire (ø 4 mm² ) |
|
Diodes |
6 pieces schottky by-pass diodes |
|
Junction Box |
IP 65 Rated |
|
|
Parameter |
Values |
Unit |
|
Operating temperature |
From -40 to +85 |
º C |
|
Typical Application |
24 V DC |
|
Hail Diameter @ 80km/h |
Up to 25 |
mm |
|
Surface Maximum Load Capacity |
Up to 5400 |
Pa |
|
Maximum Series Fuse Rating |
10 |
|
|
IEC Application Class (IEC 61215) |
A |
|
Fire Rating (UL 1703) |
C |
|
Maximum System Voltage |
1000 V DC (IEC 61215) |
|
600 V (UL 1703) |
|
|
ELECTRICAL TYPICAL VALUES |
|
Model |
Rated Power
(Pmax) |
Tolerance |
Rated current (Imp) |
Rated Voltage
(Vmp) |
Short Circuit Current (Isc) |
Open circuit voltage (Voc) |
Module
Efficiency(%) |
|
BLD-60-6M210 |
210W |
± 3% |
7.30A |
28.8V |
7.85A |
36.8V |
12.90 |
|
BLD-60-6M215 |
215W |
± 3% |
7.42A |
29.0V |
7.95A |
36.9V |
13.21 |
|
BLD-60-6M220 |
220W |
± 3% |
7.54A |
29.2V |
8.05A |
37.0V |
13.52 |
|
BLD-60-6M225 |
225W |
± 3% |
7.66A |
29.4V |
8.15A |
37.1V |
13.83 |
|
BLD-60-6M230 |
230W |
± 3% |
7.78A |
29.6V |
8.25A |
37.3V |
14.14 |
|
BLD-60-6M235 |
235W |
± 3% |
7.90A |
29.8V |
8.35A |
37.5V |
14.44 |
|
BLD-60-6M240 |
240W |
± 3% |
8.00A |
30.0V |
8.45A |
37.6V |
14.75 |
|
BLD-60-6M245 |
245W |
± 3% |
8.13A |
30.2V |
8.55A |
37.8V |
15.06 |
|
BLD-60-6M250 |
250W |
± 3% |
8.24A |
30.4V |
8.65A |
37.9V |
15.37 |
|
BLD-60-6M255 |
255W |
± 3% |
8.35A |
30.6V |
8.75A |
38.0V |
15.67 |
|
BLD-60-6M260 |
260W |
± 3% |
8.46A |
30.8V |
8.85A |
39.1V |
15.98 |
|
BLD-60-6M265 |
265W |
± 3% |
8.58A |
31.0V |
8.95A |
39.3V |
16.28 |
|
NOCT ( Nominal Operation Temperature): 45º C± 2º C |
Voltage Temperature Coefficient: -0.35% / K |
|
Current Temperature Coefficient: -0.05% / K |
|
Power Temperature Coefficient: -0.48% / K |
|
