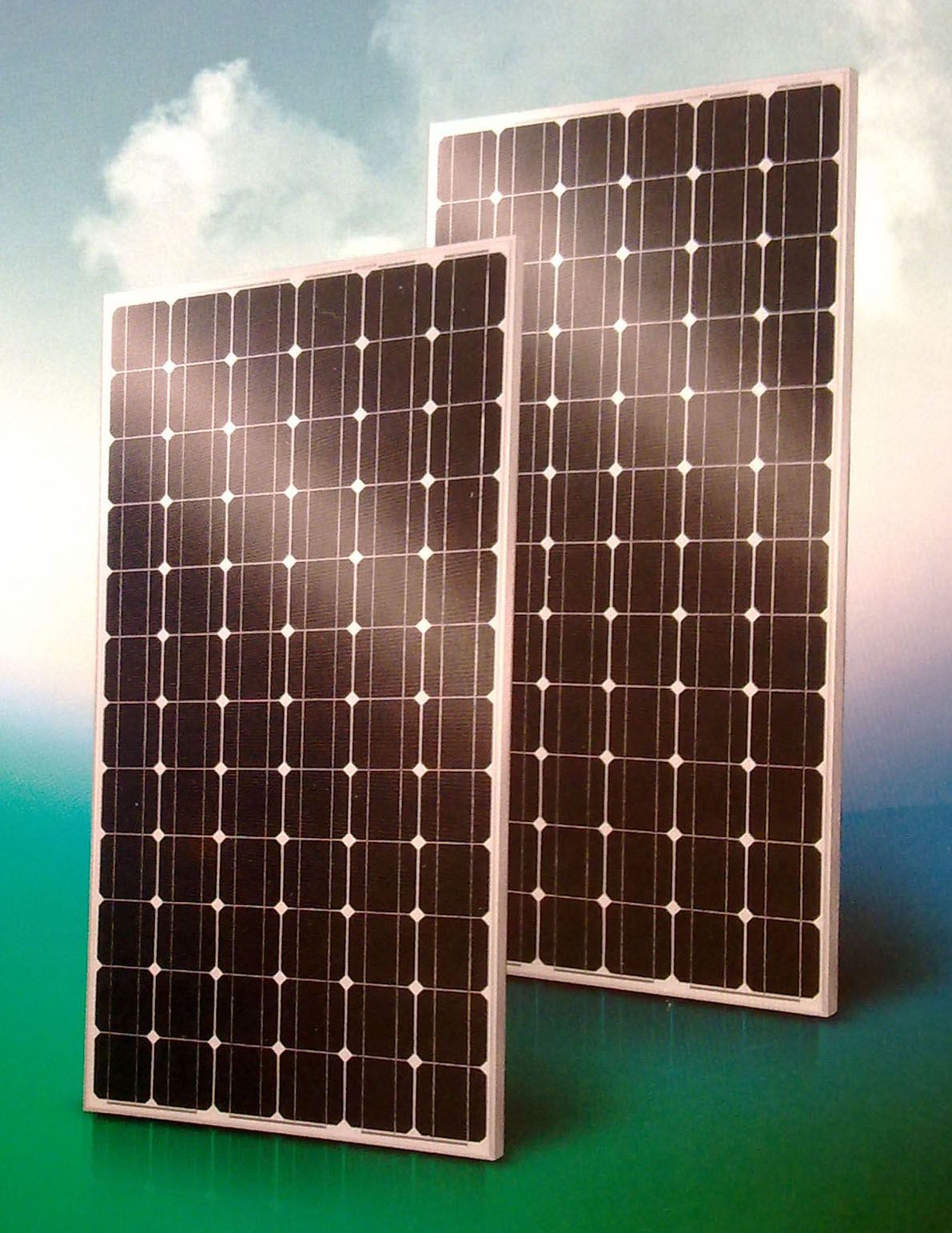

Bright solar panel is a high efficiency monocrystalline solar panel.
The panel adopts the international standard quality management system ISO9001: 2008 to control the quality.
The solar panel has passed the international certificate IEC 61215, IEC 61730, complying with CE standard
90%power output assurance for 10 years, and 80% power output assurance for 25 years. 5 years products warranty.
|
MECHANICAL CHARACTERISTCS ABSOLUTE MAXIMUM RATING |
|
Solar Cells |
Mono crystal Si 125 mm × 125 mm
Square, 6 × 12 pieces in series |
|
Dimension |
Length: 1580mm |
Width: 808mm
|
|
Height: 35mm |
|
Weight |
15 kg |
|
Front Glass |
3.2 mm |
|
Frame |
Anodized aluminium alloy |
|
Cable |
0.9mwire ( ø 4 mm² ) |
|
Diodes |
3 pieces schottky by-pass diodes |
|
Junction Box |
IP 65 Rated |
|
|
Parameter |
Values |
Unit |
|
Operating temperature |
From -40 to +85 |
º C |
|
Typical Application |
24 V DC |
|
Hail Diameter @ 80km/h |
Up to 25 |
mm |
|
Surface Maximum Load Capacity |
Up to 5400 |
Pa |
|
Maximum Series Fuse Rating |
10 |
|
|
IEC Application Class (IEC 61215) |
A |
|
Fire Rating (UL 1703) |
C |
|
Maximum System Voltage |
1000 V DC (IEC 61215) |
|
600 V (UL 1703) |
|
|
ELECTRICAL TYPICAL VALUES |
|
Model |
Rated Power
(Pmax) |
Tolerance |
Rated current (Imp) |
Rated Voltage
(Vmp) |
Short Circuit Current (Isc) |
Open circuit voltage (Voc) |
Module
Efficiency(%) |
|
BLD-72-5M160 |
160W |
± 3% |
4.68A |
34.7V |
5.04A |
43.7V |
12.53 |
|
BLD-72-5M165 |
165W |
± 3% |
4.72A |
35.1V |
5.08A |
44V |
12.92 |
|
BLD-72-5M170 |
170W |
± 3% |
4.79A |
35.5V |
5.11A |
44.4V |
13.32 |
|
BLD-72-5M175 |
175W |
± 3% |
4.87A |
35.9V |
5.18A |
44.7V |
13.71 |
|
BLD-72-5M180 |
180W |
± 3% |
4.97A |
36.2V |
5.26A |
44.9V |
14.10 |
|
BLD-72-5M185 |
185W |
± 3% |
5.03A |
36.7V |
5.29A |
45.1V |
14.49 |
|
BLD-72-5M190 |
190W |
± 3% |
5.11A |
37.1V |
5.36A |
45.2V |
14.88 |
|
BLD-72-5M195 |
195W |
± 3% |
5.22A |
37.4V |
5.40A |
45.4V |
15.27 |
|
BLD-72-5M200 |
200W |
± 3% |
5.30A |
37.8V |
5.45A |
45.5V |
15.66 |
|
BLD-72-5M205 |
205W |
± 3% |
5.35A |
38.3V |
5.49A |
45.7V |
16.06 |
|
BLD-72-5M210 |
210W |
± 3% |
5.40A |
38.9V |
5.55A |
45.8V |
16.45 |
|
NOCT ( Nominal Operation Temperature): 45º C± 2º C |
Voltage Temperature Coefficient: -0.35% / K |
|
Current Temperature Coefficient: -0.05% / K |
|
Power Temperature Coefficient: -0.48% / K |
|
