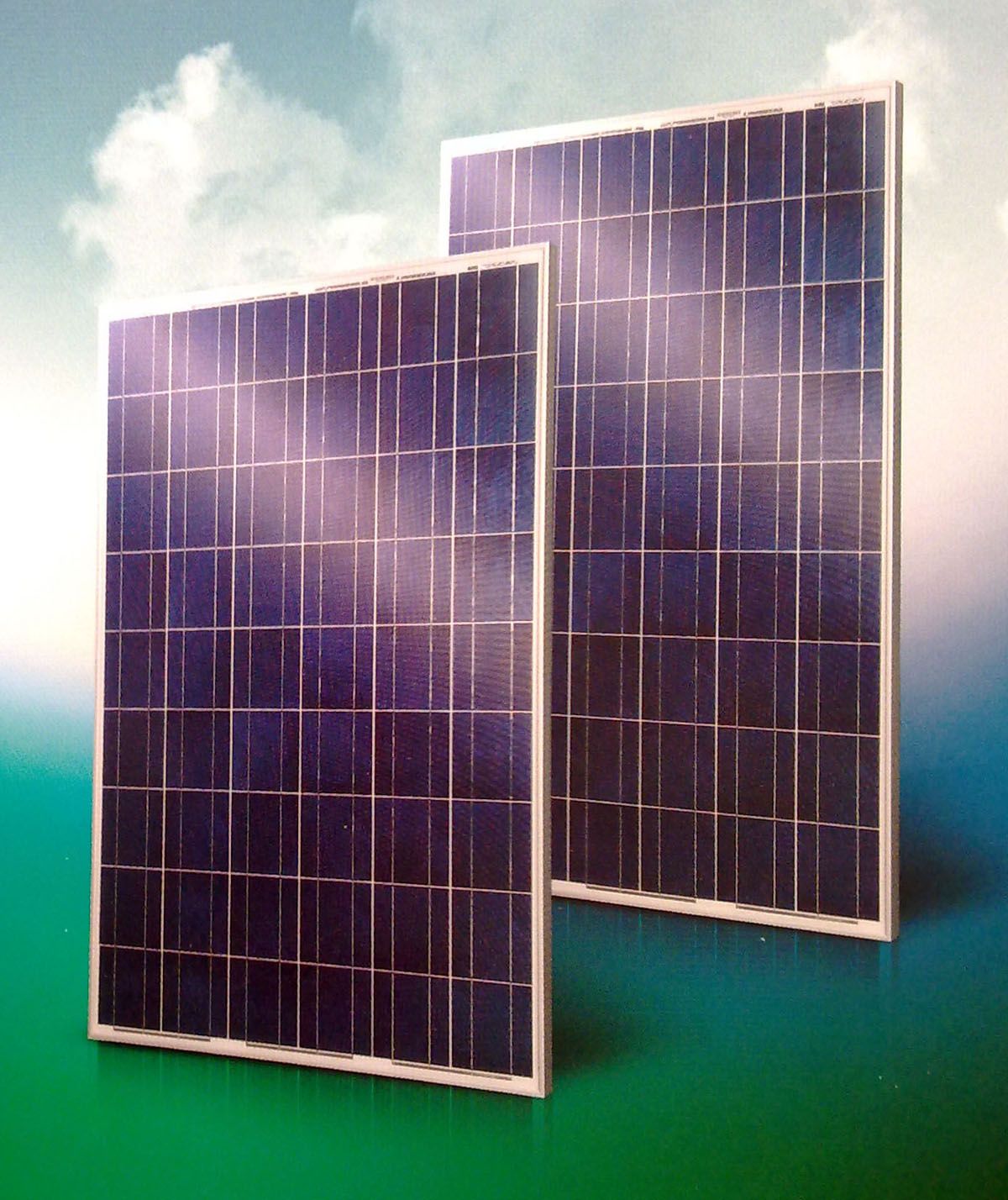

Solar Panel (BLD-54-6P)

Solar Panel (BLD-54-6P)
Price: Negotiable
Min Order: 1000/Piece
Bright solar panel is a high efficiency monocrystalline solar panel.

The panel adopts the international standard quality management system ISO9001: 2008 to control the quality.
The solar panel has passed the international certificate IEC 61215, IEC 61730, complying with CE standard

90%power output assurance for 10 years, and 80% power output assurance for 25 years. 5 years products warranty.
MECHANICAL CHARACTERISTCS                                            ABSOLUTE MAXIMUM RATING
Solar Cells Poly crystal Si 156 mm × 156 mm
Square, 6 × 9 pieces in series
Dimension Length: 1482mm
Width: 992mm
Height: 35mm
Weight 16.8 kg
Front Glass 3.2 mm
Frame Anodized aluminium alloy
Cable 0.9mwire (ø 4 mm² )
Diodes 3 pieces schottky by-pass diodes
Junction Box IP 65 Rated
Parameter Values Unit
Operating temperature From -40 to +85 º C
Typical Application 24 V DC
Hail Diameter @ 80km/h Up to 25 mm
Surface Maximum Load Capacity Up to 5400 Pa
Maximum Series Fuse Rating 10
IEC Application Class (IEC 61215) A
Fire Rating (UL 1703) C
Maximum System Voltage 1000 V DC (IEC 61215)
600 V (UL 1703)
ELECTRICAL TYPICAL VALUES
Model Rated Power
(Pmax)
Tolerance Rated current (Imp) Rated Voltage
(Vmp)
Short Circuit Current (Isc) Open circuit voltage (Voc) Module
Efficiency(%)
BLD-54-6P170 170W ± 3% 6.61A 25.7V 7.32A 32.7V 11.56
BLD-54-6P175 175W ± 3% 6.79A 25.7V 7.49A 32.7V 11.90
BLD-54-6P180 180W ± 3% 6.98A 25.8V 7.65A 32.7V 12.24
BLD-54-6P185 185W ± 3% 7.16A 25.9V 7.76A 32.9V 12.58
BLD-54-6P190 190W ± 3% 7.31A 26V 7.89A 33V 12.92
BLD-54-6P195 195W ± 3% 7.49A 26.1V 8.01A 33.2V 13.26
BLD-54-6P200 200W ± 3% 7.59A 26.4V 8.10A 33.2V 13.60
BLD-54-6P205 205W ± 3% 7.74A 26.5V 8.20A 33.3V 13.94
BLD-54-6P210 210W ± 3% 7.90A 26.6V 8.30A 33.4V 14.28
BLD-54-6P215 215W ± 3% 8.02A 26.8V 8.40A 33.6V 14.62
BLD-54-6P220 220W ± 3% 8.15A 27.0V 8.50A 33.8V 14.96
BLD-54-6P225 225W ± 3% 8.27A 27.2V 8.60A 34V 15.30
BLD-54-6P230 230W ± 3% 8.40A 27.4V 8.70A 34.2V 15.64
NOCT ( Nominal Operation Temperature): 45º C± 2º C Voltage Temperature Coefficient: -0.35% / K
Current Temperature Coefficient: -0.05% / K
Power Temperature Coefficient: -0.48% / K
Prod Model: BLD-54-6P
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Changzhou Dichuang International Trade Corp., Ltd. is an export company specializing in electric and electronic products: Solar Panel, Test Pen for more information, you can check our website.

With high quality and competitive price, with first class services and in-time delivery, our products exported to more than 20 countries and districts such as American, France, Canda, Germany, Pakistan, and Syria, Lebanon, Jordan, KSA, UAE, Iran, Singapore market etc.

CHANGZHOU DICHUANG INTERNATIONAL TRADE COMPANY is waiting for your kind attention, and hope to create progress with you by our sincere cooperation!
