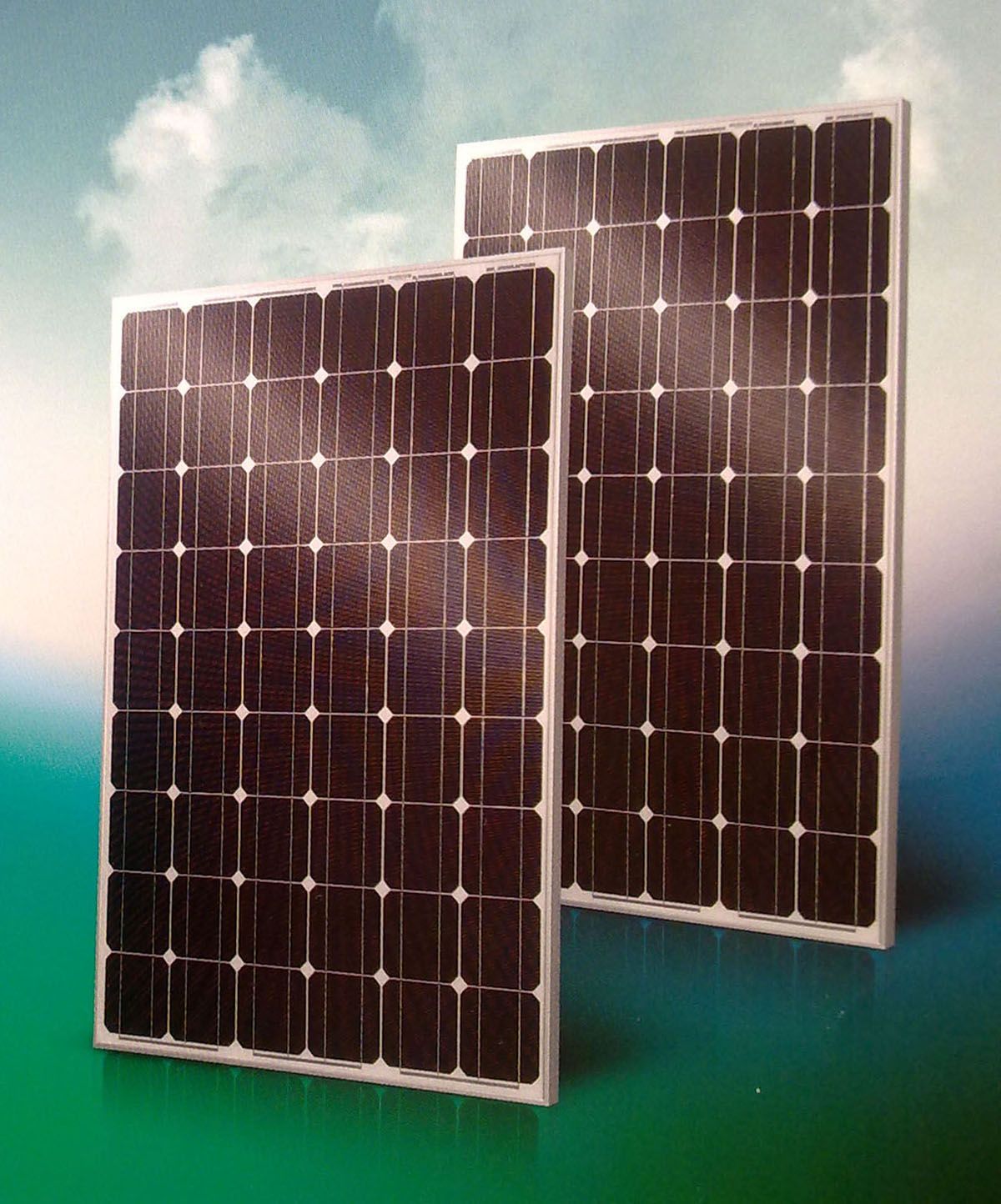

Bright solar panel is a high efficiency monocrystalline solar panel.
The panel adopts the international standard quality management system ISO9001: 2008 to control the quality.
The solar panel has passed the international certificate IEC 61215, IEC 61730, complying with CE standard
90%power output assurance for 10 years, and 80% power output assurance for 25 years. 5 years products warranty.
|
MECHANICAL CHARACTERISTCS ABSOLUTE MAXIMUM RATING |
|
Solar Cells |
Mono crystal Si 156 mm × 156 mm
Square, 6 × 9 pieces in series |
|
Dimension |
Length: 1482mm |
Width: 992mm
|
|
Height: 35mm |
|
Weight |
16.8 kg |
|
Front Glass |
3.2 mm |
|
Frame |
Anodized aluminium alloy |
|
Cable |
0.9mwire (ø 4 mm² ) |
|
Diodes |
3 pieces schottky by-pass diodes |
|
Junction Box |
IP 65 Rated |
|
|
Parameter |
Values |
Unit |
|
Operating temperature |
From -40 to +85 |
º C |
|
Typical Application |
24 V DC |
|
Hail Diameter @ 80km/h |
Up to 25 |
mm |
|
Surface Maximum Load Capacity |
Up to 5400 |
Pa |
|
Maximum Series Fuse Rating |
10 |
|
|
IEC Application Class (IEC 61215) |
A |
|
Fire Rating (UL 1703) |
C |
|
Maximum System Voltage |
1000 V DC (IEC 61215) |
|
600 V (UL 1703) |
|
|
ELECTRICAL TYPICAL VALUES |
|
Model |
Rated Power
(Pmax) |
Tolerance |
Rated current (Imp) |
Rated Voltage
(Vmp) |
Short Circuit Current (Isc) |
Open circuit voltage (Voc) |
Module
Efficiency(%) |
|
BLD-54-6M190 |
190W |
± 3% |
7.25A |
26.2V |
7.85A |
33V |
12.92 |
|
BLD-54-6M195 |
195W |
± 3% |
7.39A |
26.4V |
7.95A |
33.1V |
13.26 |
|
BLD-54-6M200 |
200W |
± 3% |
7.55A |
26.5V |
8.05A |
33.3V |
13.60 |
|
BLD-54-6M205 |
205W |
± 3% |
7.71A |
26.6V |
8.15A |
33.4V |
13.94 |
|
BLD-54-6M210 |
210W |
± 3% |
7.84A |
26.8V |
8.25A |
33.6V |
14.28 |
|
BLD-54-6M215 |
215W |
± 3% |
7.99A |
26.9V |
8.35A |
33.8V |
14.62 |
|
BLD-54-6M220 |
220W |
± 3% |
8.12A |
27.1V |
8.45A |
33.9V |
14.96 |
|
BLD-54-6M225 |
225W |
± 3% |
8.25A |
27.3V |
8.45A |
34.1V |
15.30 |
|
BLD-54-6M230 |
230W |
± 3% |
8.36A |
27.5V |
8.65A |
34.3V |
15.64 |
|
BLD-54-6M235 |
235W |
± 3% |
8.49A |
27.7V |
8.75A |
34.5V |
15.98 |
|
BLD-54-6M240 |
240W |
± 3% |
8.61A |
27.9V |
8.85A |
34.6V |
16.32 |
|
NOCT ( Nominal Operation Temperature): 45º C± 2º C |
Voltage Temperature Coefficient: -0.35% / K |
|
Current Temperature Coefficient: -0.05% / K |
|
Power Temperature Coefficient: -0.48% / K |
|
