Axis Type:
Horizontal
Rotating Shaft:
Horizontal
Stress Way Of Blade:
Resistance
Number Of Blade:
Three Blade
Phase:
3 Phase
Product Description

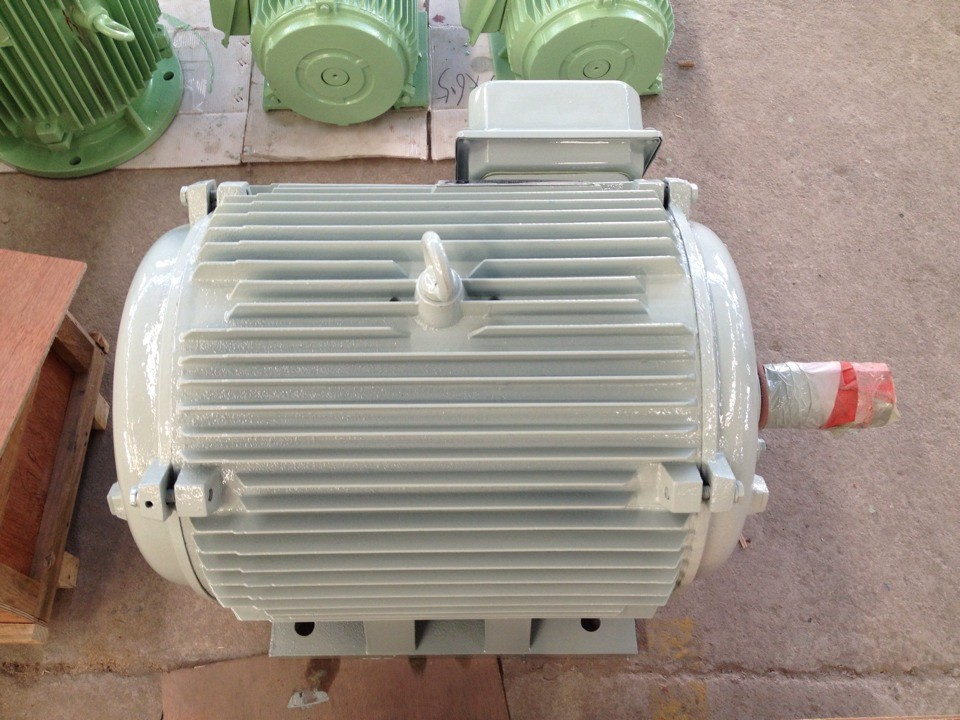

(1)Low speed permanent magnet generators, leaving out reduction box, generating high voltage at low speed. (2)High efficient PM generators, optimal design, compact structure, no carbon brush, no spark, do not need excitation. Protection Class: IP44. Prevent water, mud or dust getting into the generator, long life. (3)No excitation control box, sample structure, high reliability. (4)Small cubage, light weight, high energy density, suitable for special situations. (5)Running effectively in the whole speed range, high generating efficiency. (6)Using embedded type rare-earth magnet steel, suitable for bumping, reduplicate startup, and reversible operation. (7)Adopting imported oil-contained bearings, maintenance free, high reliability, long life. (8)The voltage, speed ,power of the generator can be customized. The shape can be changed, using spine shaft, biaxial stretch, front edge output ways.
5KW
50rpm
48V-400V, 3 phase
12Hz
32 poles
Y225
260KG
5kw
60rpm
400V, 3 phase
8Hz
16 poes
Y250
400KG
5Kw
100rpm
48~400V, 3 phase
20Hz
24 poles
Y200
260KG
5KW
120rpm
48-400V, 3 phase
24Hz
24 poles
Y200
220KG
5kw
150rpm
48-400V, 3 phase
15Hz
12 poles
Y180
170kg
5KW
250rpm
48-400V, 3 phase
45Hz
22 poles
Y160
125KG
5kw
273rpm
48-400V, 3 phase
50Hz
22 poles
Y160
130KG
5KW
300rpm
48-400V, 3 phase
60Hz
24 poles
Y180
140KG
5KW
350rpm
48-400V, 3 phase
46Hz
16 poles
Y160
130kg
5kw
400rpm
48-400V, 3 phase
53Hz
16 poles
Y160
130KG
5KW
500rpm
48~400V, 3 phase
92Hz
22 poles
Y160
110KG
Willgain Power Industry Co., Limited is specialized in manufacturing and supplying wind turbine and generatering system since 2008. We mainly supply horizontal/vertical axis wind turbine from 300W-500kw, horizontal/vertical permanent magnet generator from 300W-1000kw with various speed based on customer's requirements and Francis/Kaplan type hydro turbine system below and over 50kw.
