| Prod Model: |
YGDL |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rotating Shaft: |
Vertical |
| Stress Way Of Blade: |
Resistance |
| Number Of Blade: |
Multiple-Blade |
| Phase: |
3 Phase |
| Power: |
300W-10kw |
Product Description
50RPM

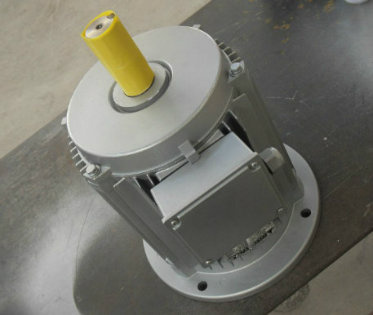

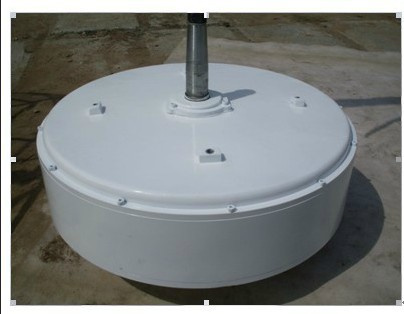

vertical permanent magent generator for wind turbine
Unique performance:
Superior efficiency: No mechanical drive losses
Very low started torque and torque ripple for long life
Superior reliability: No mechanical belt, gear or lubrication unit to worry about
Superior for environment: Oil-free system, no gearbox
Permanent magenet generator300W-10kw
| Model | Speed | Start torque(N.M) | Rated torque(N.M) | Rated voltage | Net weight |
| 300W | 80rpm | 0.9 | 66.5 | 12VAC/24VAC/48VAC | 45kg |
|
| 500W | 80rpm | 0.9 | 101 | 12VAC/24VAC/48VAC | 54kg |
|
| 1KW | 55rpm | 10.7 | 286 | 48VAC/96VAC/120VAC/220VAC/240VAC | 95kg |
| 65kg |
| 2KW | 50rpm | 12.6 | 553 | 48VAC/96VAC/120VAC/220VAC/240VAC | 157kg |
| 110kg |
| 3KW | 50rpm | 14.7 | 573 | 48VAC/96VAC/120VAC/220VAC/240VAC/360VAC/380VAC | 275kg |
| 175kg |
| 5KW | 50rpm | 15.6 | 955 | 48VAC/96VAC/120VAC/220VAC/240VAC/360VAC/380VAC | 300kg |
| 16.66 | 200kg |
| 10KW | 50rpm | 37.2 |
| 220VAC/240VAC/360VAC/380VAC | 450kg |
|
Willgain Power Industry Co., Limited is specialized in manufacturing and supplying wind turbine and generatering system since 2008. We mainly supply horizontal/vertical axis wind turbine from 300W-500kw, horizontal/vertical permanent magnet generator from 300W-1000kw with various speed based on customer's requirements and Francis/Kaplan type hydro turbine system below and over 50kw.
Our partner manufacturers are committed to continuously improving our operations and meeting the needs of our customers through innovation and new product development. We work closely with them to optimize the performance and cost-effectiveness of their processes.
