| Prod Model: |
HAWT |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Axis Type: |
Horizontal |
| Blades: |
3 PCS |
| Rotating Shaft: |
Horizontal |
| Stress Way Of Blade: |
Resistance |
| Number Of Blade: |
Three Blade |
| Phase: |
3 Phase |
Product Description

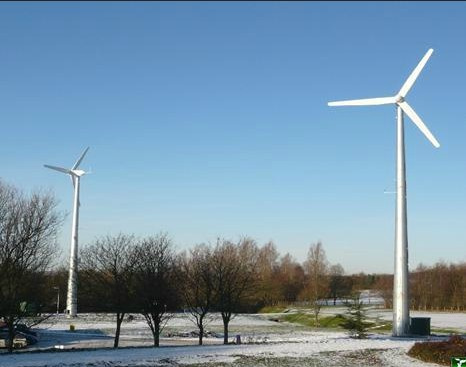

500KW Horizontal Axis Wind turbine Generator Technical Data
1 Rate Power: 500KW
2 Max power : 510KW
3 Rotate Diameter: 44M
4 Blades quantity: 3PCS
5 Blades Size: 3MX22M
6 Max Height: 60M
7 Total weight: 86MT
8 start-up wind speed: 3M/S
9 Rated Wind speed: 12M/S
10 Safe Wind speed: 40M/S
11 Turbine generator rotate speed : 100R/MIN
12 Wind turbine rotate speed: 20R/MIN
13 Voltage of generator: 400V
14 Output voltage 400V/250V
15 On grid Controller and Inverter 500KW
Rated Power | 500kw |
| Blades Number | 3 pcs |
| Rotor Diameter | 44m |
| Rated Rotated Speed | 100r/m |
| Rated Wind Speed | 12m/s |
| Output Voltage | 380v |
| Start Up Wind Speed | 3m/s |
| Operating Wind Speed | 3-30m/s |
| Security Wind Speed | 40m/s |
| Output Controller System | controller and inverter |
Willgain Power Industry Co., Limited is specialized in manufacturing and supplying wind turbine and generatering system since 2008. We mainly supply horizontal/vertical axis wind turbine from 300W-500kw, horizontal/vertical permanent magnet generator from 300W-1000kw with various speed based on customer's requirements and Francis/Kaplan type hydro turbine system below and over 50kw.
Our partner manufacturers are committed to continuously improving our operations and meeting the needs of our customers through innovation and new product development. We work closely with them to optimize the performance and cost-effectiveness of their processes.
