Blades:
5 PCS
Axis:
Vertical
Rotating Shaft:
Vertical
Number Of Blade:
Multiple-Blade
Stress Way Of Blade:
Resistance
Phase:
3 Phase
Product Description

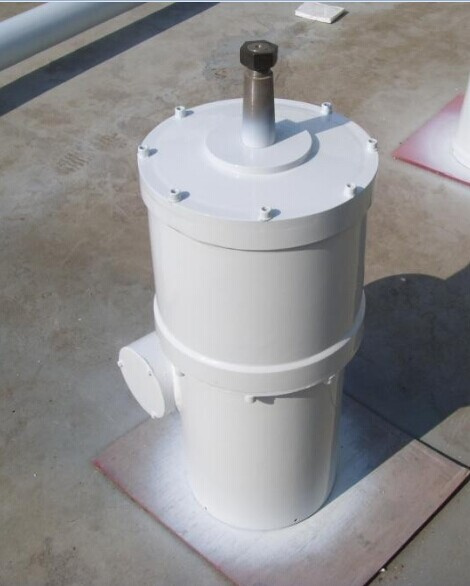

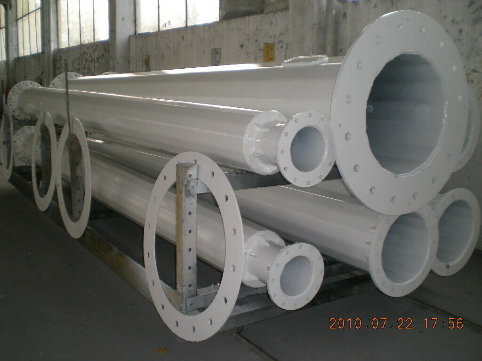

Main technical data as follows: 1. Machine Type: Vertical-axis wind turbine 2. Blade form: propeller 3. Blade number: 5 pcs 4. Blade material: glass fiber reinforced plastic 5. Type of generator: permanent-magnet direct drive 3 phase AC 6. Type of tower: guy wire or free standing Power: 5KW Blade diameter (m): 3.65 Rated Rotated speed (r/min):100 Rated speed (m/s): 10 Rated power: 5KW Max power: 7KW Output voltage (v): 220 Start up wind speed (m/s): 2 Work speed (m/s): 3-25 Security wind speed(m/s):40 speed regulation: leaning tail + electric brake Capacity and quantity of battery: 12V200AH18 pcs Can supply power for: Air conditioners, Refrigerators, Water pumps, Cookers, Color TV sets, Washing machines, Lighting, Electric fans, and Charge Life span:20-25 years;

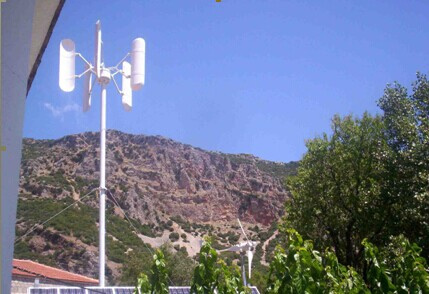

HF-VAC-5KW vertical axis wind turbine generator
Rated Power
5KW
Blades
C-shaped
Blades number
5 pc
Rotor Diameter
3.8 m
Blade Length
3650 mm
Blade Width
300 mm
Blade Weight
20 kg
Rated Rotated Speed
100 r/m
Rated Wind Speed
10m/s
Output Voltage
220v
Start Up Wind Speed
2m/s
Operating Wind peed
3-25m/s
Security Wind Speed
40m/s
Output Controller System
charger and inverter
Battery
12V200AH 18pcs
Willgain Power Industry Co., Limited is specialized in manufacturing and supplying wind turbine and generatering system since 2008. We mainly supply horizontal/vertical axis wind turbine from 300W-500kw, horizontal/vertical permanent magnet generator from 300W-1000kw with various speed based on customer's requirements and Francis/Kaplan type hydro turbine system below and over 50kw.
