Rotating Shaft:
Horizontal
Stress Way Of Blade:
Resistance
Number Of Blade:
Three Blade
Product Description

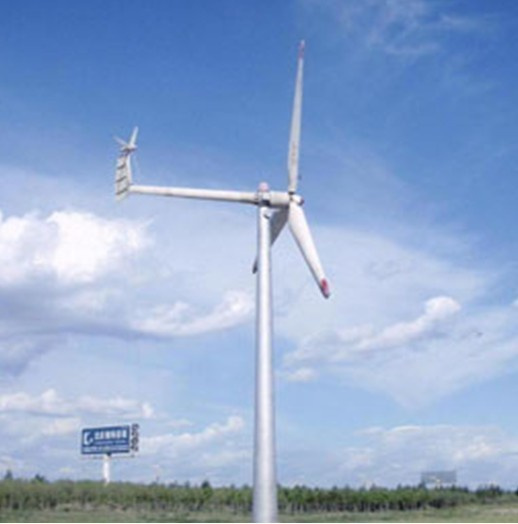

Main technical parameter of 20kw horizontal axis wind turbine as follows: 1. Machine Type: horizontal-axis wind turbine 2. blade form: propeller 3. blade number: 3 pcs 4. balde material: glass fibre reinforced plastic 5. type of generator:permanent-magnet 3 phase AC 6. type of tower: guy wire or free standing Power: 20KW Blade diameter (m): 10.0 Rated Rotated speed(r/min): 120 Rated speed (m/s): 12 Rated power: 20KW Max power: 30KW Output voltage (v): 380 Start up wind speed (m/s): 3 Work speed (m/s): 3-30 Security wind speed(m/s):50 High of tower (m): 18 Top quality except tower: 700kg Tower Steel tube model (mm):φ325 speed regulation: leaning tail + electric brake Capacity and quantity of battery: 12V200AH56 pcs Can supply power for: Small villages, Air conditioners, Refrigerators, Water pumps, Cookers, Color television sets, Washing machines, Lighting, Electric fans, and Charge
Rated Power
20kw
Blades Number
3 pcs
Rotor Diameter
10m
Rated Rotated Speed
120r/m
Rated Wind Speed
12m/s
Output Voltage
380v
Start Up Wind Speed
3m/s
Operating Wind Speed
3-30m/s
Security Wind Speed
50m/s

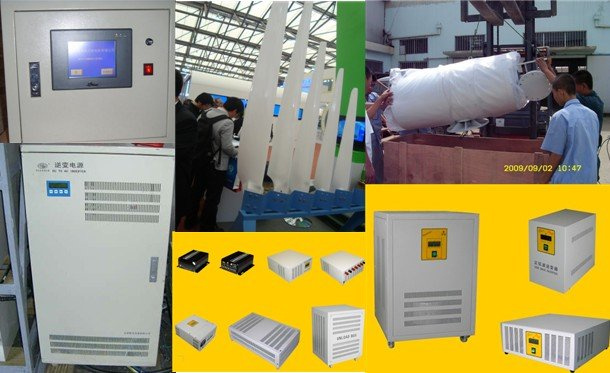

Output Controller System
controller and inverter
Battery
12V200AH 56pcs
Willgain Power Industry Co., Limited is specialized in manufacturing and supplying wind turbine and generatering system since 2008. We mainly supply horizontal/vertical axis wind turbine from 300W-500kw, horizontal/vertical permanent magnet generator from 300W-1000kw with various speed based on customer's requirements and Francis/Kaplan type hydro turbine system below and over 50kw.
Our partner manufacturers are committed to continuously improving our operations and meeting the needs of our customers through innovation and new product development. We work closely with them to optimize the performance and cost-effectiveness of their processes.
