Axis Type:
Vertical
Rotating Shaft:
Vertical
Stress Way Of Blade:
Resistance
Number Of Blade:
Multiple-Blade
Phase:
3 Phase

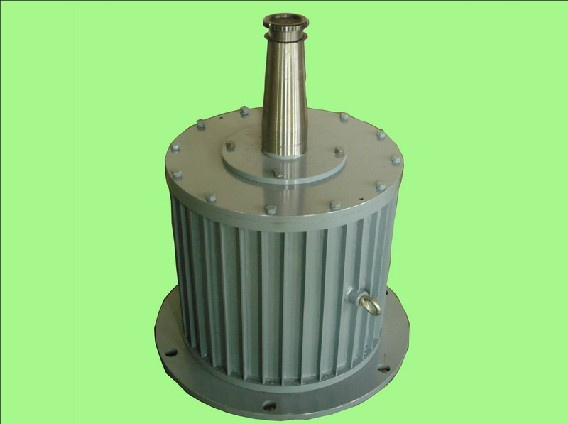

Product Description
1. More poles in the permanent generator,improved the frequency when the speed of fan is low. Solve the problems of instability voltage , Improves the efficiency of the converter, saving the cost of subsequent processing equipment. 2. Our company has the ABB wind turbine testing center, which can effectively guarantee the quality of products. 3. After finite element analysis and design, structure is appropriate, starting torque is small, it is not hard to startup anymore when the fan is low speed, improved wind energy utilization. 4. low velocity magnent generator; eliminates step-up drive, raised reliability, raised power generation efficiency, maintenance. 5. No carbon brush,no excitation winding,no excitation controlling-box,sample structure,no spark.high reliability, IP Code:IP54, long life. 6.The rotor is strength, that makes the motor can get high speed. 7. Small size, light weight, high energy density, fitness for a particular occasion. 8. Motors is running efficiently throughout the entire speed range, high efficiency 9. Motor adopts imported high speed bear with oil. Maintenance-free, high reliability, long life. 10. You can change the motor voltage, speed, power and other parameters, the out size of the motor can be also changed. You can use splined shaft, dual shaft, flange and other installation methods.
20kw
30rpm
400V 3 phase
6Hz
24 poles
Y355
1700kg
20kw
150rpm
400V 3 phase
20Hz
16 poles
Y280
700kg
20kw
50rpm
400V 3phase
10Hz
24 poles
Y355
1700kg
20kw
60rpm
400V 3phase
12Hz
24 poles
Y315
1300kg
20kw
187.5rpm
400V 3 phase
50Hz
32 poles
Y250
400kg
20kw
273rpm
400V 3 phase
50hz
22 poles
Y225
330kg
20kw
300rpm
400V 3phase
55hz
22 poles
Y225
330kg
20kw
500rpm
400V 3 phase
50
12 poles
Y180
180kg
20kw
750rpm
400V 3 phase
50Hz
8 poles
Y225
300kg
20KW
1000rpm
400V 3 phase
50HZ
6 poles
Y200
230KG
1500rpm
400V 3 phase
50HZ
4 poles
Y180
180KG
Willgain Power Industry Co., Limited is specialized in manufacturing and supplying wind turbine and generatering system since 2008. We mainly supply horizontal/vertical axis wind turbine from 300W-500kw, horizontal/vertical permanent magnet generator from 300W-1000kw with various speed based on customer's requirements and Francis/Kaplan type hydro turbine system below and over 50kw.
