Axis Type:
Horizontal
Rotating Shaft:
Horizontal
Stress Way Of Blade:
Resistance
Number Of Blade:
Three Blade
Phase:
3 Phase
Product Description

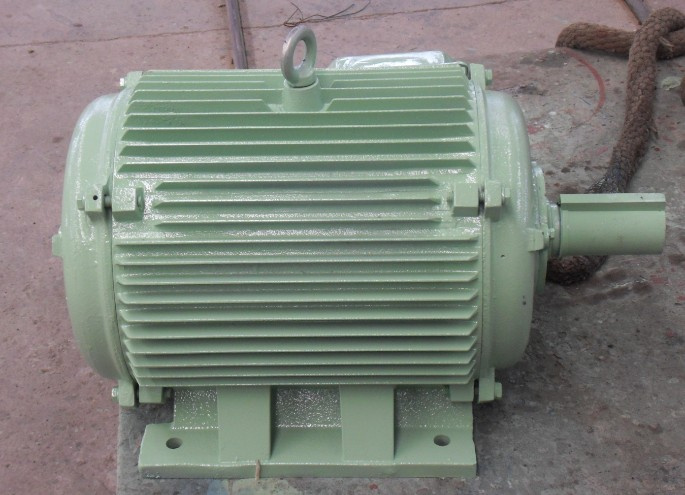

(1)Low speed permanent magnet generators, leaving out reduction box, generating high voltage at low speed. (2)High efficient PM generators, optimal design, compact structure, no carbon brush, no spark, do not need excitation. Protection Class: IP44. Prevent water, mud or dust getting into the generator, long life. (3)No excitation control box, sample structure, high reliability. (4)Small cubage, light weight, high energy density, suitable for special situations. (5)Running effectively in the whole speed range, high generating efficiency. (6)Using embedded type rare-earth magnet steel, suitable for bumping, reduplicate startup, and reversible operation. (7)Adopting imported oil-contained bearings, maintenance free, high reliability, long life. (8)The voltage, speed ,power of the generator can be customized. The shape can be changed, using spine shaft, biaxial stretch, front edge output ways.
Model
Rated power W
Rated voltage V
Rated current A
Rated rotated speed rpm
Startup torque N*M
Efficiency
FF-300W/400r/DC28V
300
DC28
10.7
400
0.35
75%
FF-500W/360r/DC56V
500
DC56
8.93
360
0.55
78%
FF-600W/360R/DC56V
600
DC56
10.7
360
0.65
78%
FF-1KW/360r/DC56V
1K
DC56
17.9
360
1.2
80%
FF-2KW/300r/DC115V
2K
DC115
17.4
300
2.0
85%
FF-3KW/290r/DC115V
3K
DC115
26.1
290
2.5
85%
FF-5KW/220r/DC230V
5K
DC230
21.7
220
4.0
88%
FF-10KW/200r/DC230V
10K
DC 230
43.5
200
6.5
90%
FF-20KW/140r/AC400V
20K
AC400
28.87
140
20
90%
FF-50KW/150r/DC690V
50K
DC690
41.8
150
40
90%
FF-100KW/140r/AC690V
100K
AC690
83.68
140
85
90%
Willgain Power Industry Co., Limited is specialized in manufacturing and supplying wind turbine and generatering system since 2008. We mainly supply horizontal/vertical axis wind turbine from 300W-500kw, horizontal/vertical permanent magnet generator from 300W-1000kw with various speed based on customer's requirements and Francis/Kaplan type hydro turbine system below and over 50kw.
Our partner manufacturers are committed to continuously improving our operations and meeting the needs of our customers through innovation and new product development. We work closely with them to optimize the performance and cost-effectiveness of their processes.
