Axis Type:
Horizontal
Blades:
3 PCS
Rotating Shaft:
Horizontal
Stress Way Of Blade:
Resistance
Number Of Blade:
Three Blade
Product Description

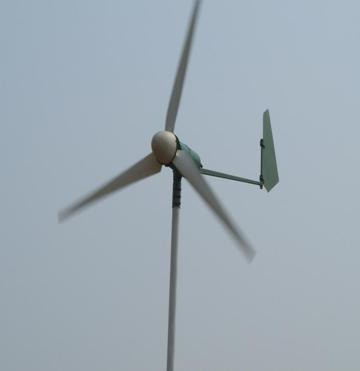

Main technical data as follows: 1. Machine Type: horizontal-axis wind turbine 2. Blade form: propeller 3. Blade number: 3 pcs 4. Blade material: glass fiber reinforced plastic 5. Type of generator: permanent-magnet 3 phase AC 6. Type of tower: guy wire or free standing Power: 150W Blade diameter (m): 2.0 Rated Rotated speed(r/min):400 Rated speed (m/s):8 Rated power: 150W Max power: 250W Output voltage (v): 24/12 Start up wind speed (m/s):3 Work speed (m/s): 3-25 Security wind speed(m/s):50 High of tower (m): 6 Top quality except tower: 35kg Tower Steel tube model (mm): φ60 speed regulation: leaning tail + electric brake Capacity and quantity of battery: 12V100AH1 pcs Life span: 20-25 years; Warranty: 1 year Can supply power for: Color TV sets, Electric fans, Lighting, Charge
Rated Power
150w
Blades Number
3 pcs
Rotor Diameter
2m
Rated Rotated Speed
400r/m
Rated Wind Speed
8m/s
Output Voltage
24v/12v
Start Up Wind Speed
3m/s
Operating Wind Speed
3-25m/s
Security Wind Speed
50m/s
Output Controller System
controller and inverter
Battery
12V100AH 1pc
Willgain Power Industry Co., Limited is specialized in manufacturing and supplying wind turbine and generatering system since 2008. We mainly supply horizontal/vertical axis wind turbine from 300W-500kw, horizontal/vertical permanent magnet generator from 300W-1000kw with various speed based on customer's requirements and Francis/Kaplan type hydro turbine system below and over 50kw.
Our partner manufacturers are committed to continuously improving our operations and meeting the needs of our customers through innovation and new product development. We work closely with them to optimize the performance and cost-effectiveness of their processes.
