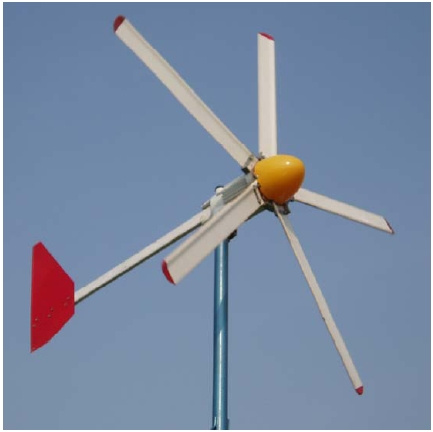

A 5 blades wind generator with beautiful shape, safe, portable and
Reliable. It is especially designed to meet the demand from individual householders for a renewable energy source.
The WFD750W is used to charge 24V or 36V or 48V batteries. Equipped with suitable DC to AC inverter, it is capable of supplying power for:
Refrigeration
Electric fan
Lights
Navigational equipment
Communication equipment
Advantages of 5-blade wind
Turbines over 3-blade wind turbines
1) 5-blade wind turbines will greatly improve annual energy production in low wind conditions. For areas with average wind speeds of 11 MPH (5m/s). If you compare annual energy output to conventional 3-blade wind turbine, there is an increase of annual energy output of more than 60%.
2) 5-blade wind turbines will dramatically improve the reliability and safety of the wind turbine. The blade rotation speed of a 5-blade turbine is 60% of the rotational speed for a 3-blade wind turbine. 5-blade wind turbines will greatly reduce the chance of overspeed control malfunction. This will ensure operational reliability from a long term perspective.
3) The lower blade rotation speed of a 5-blade wind turbine will lower wind turbine noise and make 5-blade wind turbines more community friendly than 3-blade wind turbines.
Features:
Reliable passive self furling
Autobrake slows down the blades spin when the batteries are charged
Marine quality powder coated aluminum body, all stainless steel hardware, water tight housing
Iron Boron Neodymium magnet alternator.
Reliability: The design of the body efficiently flows excess heat into the wind reducing operating temperature
Strong aluminum alloy blades, silent when working.
Simple to install, easy to use and requires little maintenance.
Two year warranty; Operational life expected to be in excess of 15 years.
Model: WFD750W
Rated Power: 750 W
Max Power: 1000 W
Voltage Options: 24V or 36V or 48V
Start Wind Speed: 2 m/s
Rated Wind Speed: 10 m/s
MAX WIND SPEED: 40m/s
Cut-Out Wind Speed: 12 m/second
Blade Pitch Control None, Fixed Pitch
Over speed Protection: Side furling with gravity return
Temperature Range: -40 to +60 Deg. C
Rotor Diameter: 2 m
Rotor speed: 450 rpm
Blade number: 5
Blade material: Aluminum alloy
Height of tower: Recommended 6.0 m
Generator: 3 phase permanent magnet alternator
Inverter power output: AC 110/220V, 50Hz/60Hz
Turbine Weight(kg) 31
Packing Carton 1: 90x39.5x21 cm 40 kg
Carton 2: 155x20x15 cm 35 kg
Apparent Sound Power Level for the Acoustic Reference Wind Speed
Model WFD750W
Rated Power 750 W
Max Power 1000 W
Voltage Options 24V or 36V or 48V
Start Wind Speed 2 m/s
Rated Wind Speed 10 m/s
MAX WIND SPEED 40m/s
Cut-Out Wind Speed 12 m/second
Blade Pitch Control None, Fixed Pitch
Over speed Protection Side furling with gravity return
Temperature Range -40 to +60 Deg. C
Rotor Diameter 2 m
Rotor speed 450 rpm
Blade number 5
Blade material Aluminum alloy
Height of tower recommended 6.0 m
Generator 3 phase permanent magnet alternator
Inverter power output AC 110/220V, 50Hz/60Hz
Turbine Weight(kg) 31
Packing Carton 1: 90x39.5x21 cm 40 kg
Carton 2: 155x20x15 cm 35 kg
*Turbine Sound Pressure Level at 7.3~8.7 m/s: 66.7~81.7 dB
*Background Sound Pressure Level at 7.3~8.7 m/s: 54.6~66.8 dB
*Different between background and turbine: 12.1~14.9 dB
Test was made at 8 meters from the turbine.
Warranty: 2 years
