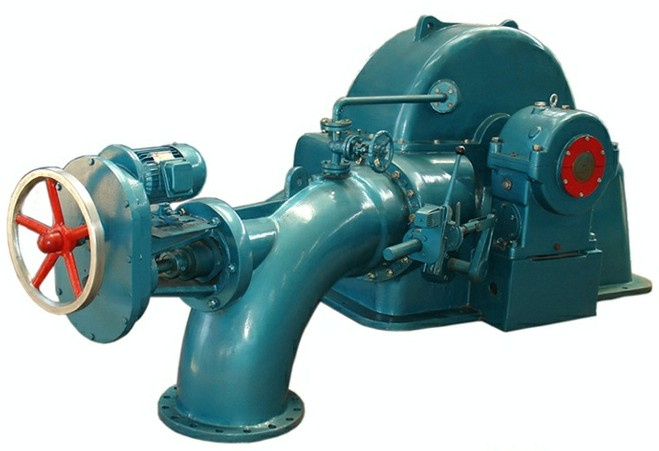

630KW Pelton Turbine Generator
P160-630 W-95 is a AC direct systems consist of a turbine-generator unit producing AC power which is used as needed. That is, it is fed directly to the appliances. No need of battery and inverter, P160-630 W-95 offers a complete water to wire system with integral turgo turbine, generator and valve flow control. Designed to deliver ready-to-use 380V AC /3 phase power, it employs a brushless, special rare-earth permanent magnet alternator and therefore has a higher efficiency than ordinary alternator. Output voltage and frequency are controlled by the electronic load controller(with ballast). Water as 510 liter per second (l/s) falling 160 meter through a 500mm thick pipe, it can supply enough power to comfortably run a household. This machine is compact, easy to install and requires little maintenance except lubricating the bearing every few months.
The Pelton turbine was designed for families in remote areas to produce power for their households easily and inexpensively. These units have been incredibly successful and today thousands are installed throughout the world.
Water is collected upstream from the turbine and channeled in a pipe down to the turbine location. At the turbine, the water passes through a nozzle, where it accelerates, strike the turbine runner, and turn a AC three-phase brushless permanent magnet alternator. A electric load controller is built on the alternator which stabilizes the voltage to 400V to protect electrical appliances during use. Installation is very simple and explained in the manual. Once installed there are no running costs and maintenance costs are very low.
|
Item |
Parameters |
|
Model |
P160-630 W-95 |
|
Water Head Range |
155 – 160 meter |
|
Water Flow Range |
400 – 510 liter/second |
|
Rated Power Output |
630KW |
|
Intended voltage |
Three phase, AC380V~ |
|
Rotary Speed |
1000 rpm |
|
Turbine runner type |
Pelton |
|
Number of nozzles |
1 |
|
Jet diameter |
450 mm |
|
Generator |
Single phase permanent magnet alternator |
|
Power factor |
1.0 |
|
Temperature |
-20°C~50°C |
|
Humidity |
≤90% |
|
Safety protection |
Short circuit, over load, Islanding, Grounding fault |
