Turgo Turbine Generator
The Turgo turbine is an impulse water turbine designed for medium head applications. Mini Operational Turgo Turbines achieve efficiencies of about 60%. It works with net heads between 15 and 300 m.
The Turgo has some advantages over Francis and Pelton designs for certain applications. First, the runner is less expensive to make than a Pelton wheel. Second, it doesn't need an airtight housing like the Francis. Third, it has higher specific speed and can handle a greater flow than the same diameter Pelton wheel, leading to reduced generator and installation cost.
Small Turgo Turbine are popular where low cost is very important. Like all turbines with nozzles, blockage by debris must be prevented for effective operation.

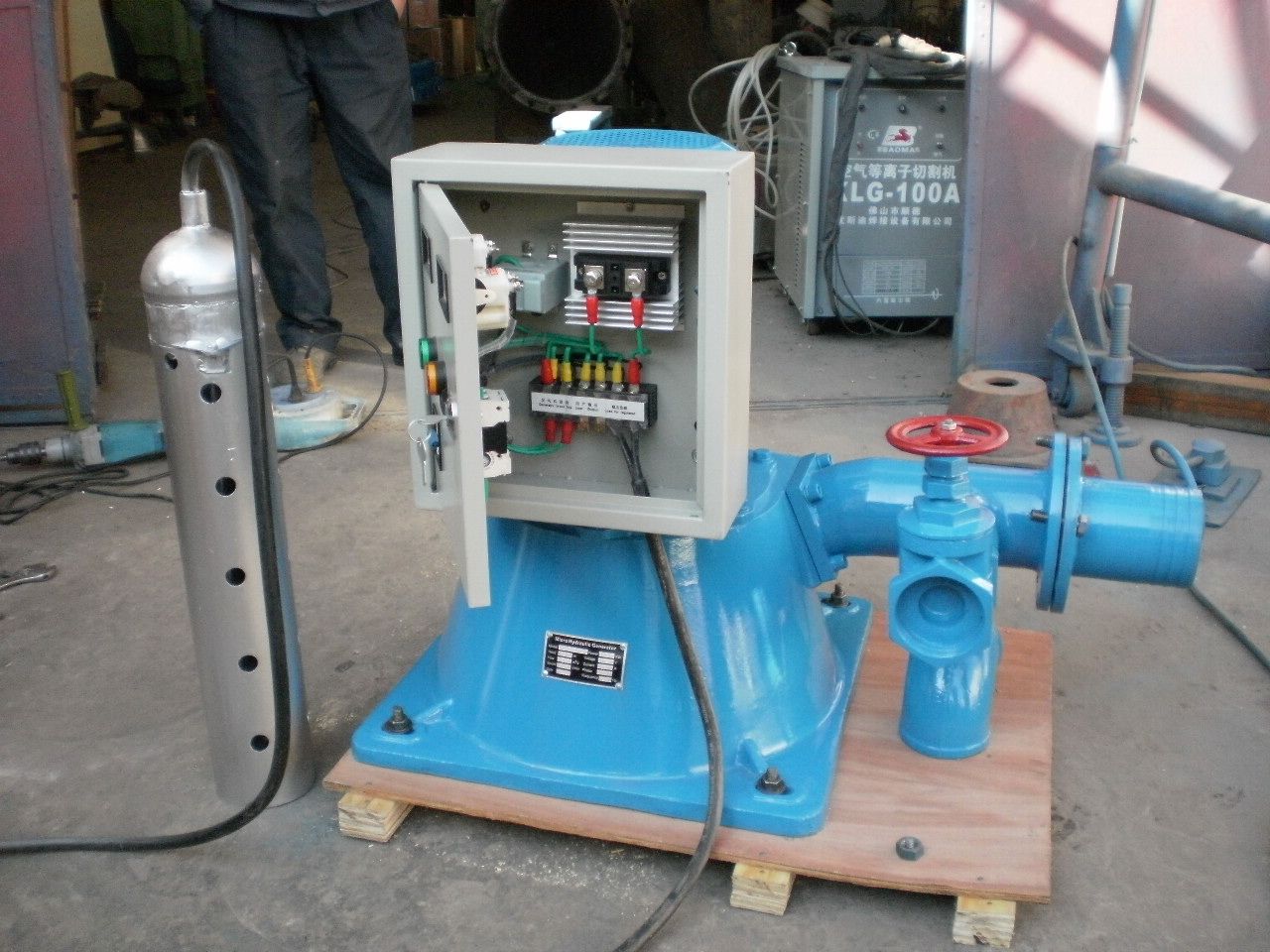

The Turgo Turbine Generator System we supply is a AC direct systems consist of a turbine-generator unit producing AC power which is used as needed. That is, it is fed directly to the appliances. No need of battery and inverter, it offers a complete water to wire system with integral turgo turbine, generator and valve flow control. Designed to deliver ready-to-use 115V/230V AC power, it employs a brushless, special rare-earth permanent magnet alternator and therefore has a higher efficiency than ordinary alternator. Output voltage and frequency are controlled by the electronic load controller(with ballast). The power is monitored and that which is not used by the appliances is directed to the ballast.
Water is collected upstream from the turbine and channeled in a pipe down to the turbine location. At the turbine, the water passes through a nozzle, where it accelerates, strike the turbine runner, and turn a AC single-phase brushless permanent magnet alternator. A electric load controller is built on the alternator which stabilizes the voltage to 110V or 220V to protect electrical appliances during use. Installation is very simple and explained in the manual. Once installed there are no running costs and maintenance costs are very low.
If you feel you may have a suitable site, please email specific information on your actual site. The information that is required for a preliminary assessment is:
1. The volume of water flowing in your stream, expressed as liters per second.
2. The head (height of drop) of the falling water, expressed in meters.
3. The length of the penstock (pipeline) in meters.
Model |
Water Head
meter |
Water Flow
Liter/sec |
Rated Power |
Runner Speed |
Weight |
Price |
T14-0.3DCT4 |
11~14 m |
3~5 l/s |
300W |
1500rpm |
18 kg |
Sample USD457
> 10 set USD307 |
T18-0.5DCT4 |
13~18m |
5 ~ 7 l/s |
500W |
|
20 kg |
Sample USD582
> 10 pc USD426 |
T18-0.75DCT4 |
13~18m |
6 ~ 9 l/s |
750W |
|
32 kg |
Sample USD725
> 10 pc USD575 |
T10-0.75DCTH4 |
7 ~ 10m |
10~12 l/s |
750W |
|
65 kg |
Sample USD994
> 10 pc USD844 |
T11-1.1DCTH4 |
8~11m |
12~15 l/s |
1100W |
|
68 kg |
Sample USD1414
> 10pc USD1314 |
T25-1.5DCT4 |
18~25m |
8~11 l/s |
1500W |
|
70 kg |
Sample USD1321
> 10 pc USD1202 |
T25-1.5DCTH4 |
12~15m |
12~18 l/s |
1500W |
|
104 kg |
Sample USD1451
> 10pc USD1329 |
T40-1.5DCT4 |
35~40m |
5~7 l/s |
1500W |
|
75 kg |
Sample USD1463
> 10pc USD1363 |
T25-2.2DCTH4 |
35~40m |
7~10 l/s |
2200W |
|
75 kg |
Sample USD2008
> 5pc USD1908 |
T50-2.5DCT4 |
40~50m |
7~10 l/s |
2500W |
|
95 kg |
USD2, 020 |
T25-3.0DCT4 |
25~35m |
15~19 l/s |
3KW |
|
97 kg |
USD2.057 |
T25-3.0DCTF4 |
12~20m |
22~30 l/s |
3KW |
|
122 kg |
USD2, 104 |
T28-6.0DCT4/6 |
28~35m |
30~36 l/s |
6KW |
|
210 kg |
USD3, 814 |
T28-6.0DCTF4/6 |
18~20m |
38~55 l/s |
6KW |
|
260 kg |
USD4, 018 |
T25-7.5DCTF4 |
22~25m |
38~55 l/s |
7.5KW |
|
300 kg |
USD6, 369 |
T30-8.0SCT4 |
30~50m |
25~30 l/s |
8KW |
|
300 kg |
USD6, 693 |
T30-10DCT4 |
30~38m |
40~50 l/s |
10KW |
|
300 kg |
USD6, 357 |
T30-10DCTF6 |
25~30m |
50 ~60 l/s |
10KW |
|
320 kg |
USD6, 560 |
TP100-10DCTF2 |
90~105m |
14~17 l/s |
10KW |
|
295 kg |
USD8, 200 |
T30-12SCTF4 |
28~35m |
50~60 l/s |
12KW |
|
350 kg |
USD7, 729 |
T30-15SCTF4/6 |
30~40m |
60~70 l/s |
15KW |
|
380 kg |
USD8, 492 |
T39-18 |
30~39m |
58~70 l/s |
18KW |
|
410 kg |
USD9, 960 |
T85-20SCT4/6 |
70~85m |
28~35 l/s |
18KW |
|
320 kg |
USD13, 972 |
T30-20SCTF4/6 |
35~45m |
60~80 l/s |
20KW |
|
592 kg |
USD11, 189 |
T38-25SCTF4/6 |
20~-25m |
140~160l/s |
25KW |
|
660 kg |
USD14, 898 |
TA70-W26 |
60~70m |
40~50 l/s |
26KW |
|
590 kg |
USD12, 250 |
TA45-W40 |
38~45m |
90~120 l/s |
40KW |
|
620 kg |
USD17, 903 |
TA30-40 |
25~30m |
165~180 l/s |
40KW |
|
780 kg |
USD21, 100 |
TA85-W55 |
70~85m |
75~90 l/s |
55KW |
|
650 kg |
USD21, 330 |
TA45-W58 |
35 – 45m |
120~180 l/s |
58KW |
|
820 kg |
USD22, 330 |
Suzhou Yueniao Machinery & Electronics Imp & Exp Co., Ltd. is one of the pioneer renewable energy business and has been in this field since 2002. We are dedicated exclusively to the business of small wind generator, mini hydroelectric generator and solar energy.
As a manufacturer with advanced technology, we are making in our own workshop the wind turbine from 300W to 20kw with CE certificates. Beside that we are dealing with business of mini hydroelectric generator from 200W up to 60KW and solar panel from 20W to 280W.
We do not claim any of its products to be the best, but we are proud to hear the owners of our products praise them. And that is what makes all the time and effort we spend on our products worthwhile.
Thank you for your support!
