Turgo Turbine Generator 8 to 100kw

Price:	Negotiable/Piece
Trade Terms:	CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Suzhou Yueniao Machinery & Electronics Imp & Exp Co., Ltd.

Showroom Product Company Profile

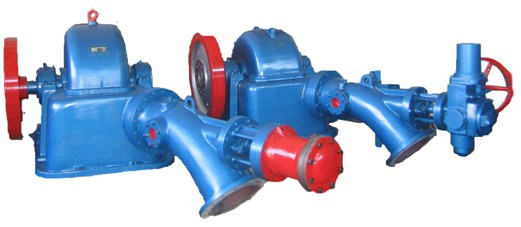

Turgo Turbine Generator

We supply these larger hydroelectric systems. Sizes start at about 8kW and are available to 100KW. These are custom designed to your site parameters and consist of AC generators driven by Turgo turbines. The systems are designed to be tied to the grid to sell back any excess electricity to your local power utility.
A typical system consists of a turgo turbine with one or more nozzles, AC brushless generator, belt or direct drive, 50Hz or 60Hz three phase output, 380VAC or higher, frequency protection and load management controller/governor. Typical factory lead times are 6-10 weeks after complete technical data for site is submitted with order.

Turbine						Generator
Model		Water Head meter		Water Flow m3/s		Model	Speed r/min		Capacity		FOB Price
T60-17/1x4		35		0.032		SFW12-6	1000		8KW
		40		0.034		SFW12-6	1000		10KW
		45		0.036		SFW12-6	1000		12KW
		50		0.038		SFW18-6	1000		14KW
		55		0.040		SFW18-6	1000		16KW
		60		0.041		SFW18-6	1000		17KW
T100-39/1x4		65		0.043		SFW18-4	1500		18KW
		70		0.045		SFW30-4	1500		23KW
		75		0.046		SFW30-4	1500		25KW
		80		0.048		SFW30-4	1500		28KW
		90		0.051		SFW30-4	1500		34KW
		100		0.053		SFW40-4	1500		39KW
Turgo Turbine						Generator
Model		Water Head meter		Water Flow m 3/s		Model		Speed r/min		Capacity	FOB Price
T55-30/1X6		35		0.072		SFW18-6		1000		17.5KW
		40		0.077		SFW18-6		1000		18KW
		45		0.081		SFW30-6		1000		25KW
		50		0.086		SFW30-6		1000		29KW
		55		0.09		SFW30-6		1000		30KW
T65-40/1X6		60		0.094		SFW40-6		1000		37.6KW
		65		0.098		SFW40-4		1500		40KW
T80-55/1X6		70		0.10		SFW55-4		1500		49KW
		75		0.105		SFW55-4		1500		55KW
		80		0.108		SFW55-4		1500		55KW
T90-73/1X6		90		0.115		SFW75-4		1500		73KW
T100-85/1X6		100		0.12		SFW100-4		1500		85KW
Turgo Turbine					Generator
Model	Water Head meter		Water Flow m 3/s		Model		Speed r/min		Capacity
T45-30/1X7	35		0.089		SFW18-6		1000		18KW
	40		0.095		SFW30-6		1000		26KW
	45		0.101		SFW30-6		1000		30KW
T60-40/1 x7	50		0.106		SFW40-6		1000		35KW
	55		0.111		SFW40-6		1000		40KW
	60		0.116		SFW40-6		1000		40KW
T70-55/1 x7	65		0.121		SFW55-4		1500		51KW
	70		0.125		SFW55-4		1500		55KW
T80-72/1 x7	75		0.13		SFW75-4		1500		66KW
	80		0.134		SFW75-4		1500		72KW
T100-103/1 x7	90		0.142		SFW100-4		1500		88KW
	100		0.15		SFW100-4		1500		103KW

Markets:	South America,Eastern Europe,Oceania,Western Europe

Suzhou Yueniao Machinery & Electronics Imp & Exp Co., Ltd. is one of the pioneer renewable energy business and has been in this field since 2002. We are dedicated exclusively to the business of small wind generator, mini hydroelectric generator and solar energy.

As a manufacturer with advanced technology, we are making in our own workshop the wind turbine from 300W to 20kw with CE certificates. Beside that we are dealing with business of mini hydroelectric generator from 200W up to 60KW and solar panel from 20W to 280W.
We do not claim any of its products to be the best, but we are proud to hear the owners of our products praise them. And that is what makes all the time and effort we spend on our products worthwhile.
