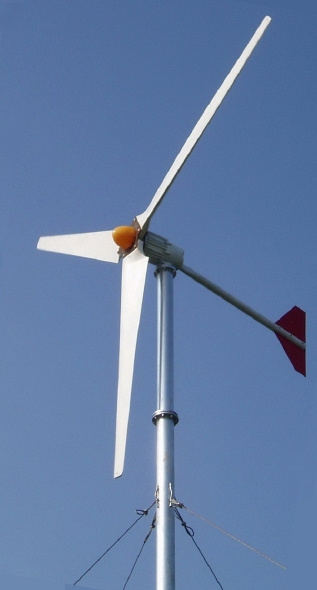

A wind generator with beautiful shape, safe, portable and reliable. It is especially designed to meet the demand from individual householders for a renewable energy source.
The WFD2KW is used to charge 48V or 120V batteries. Equipped with suitable DC to AC inverter, it is capable of supplying power for:
Refrigeration, Electric fan, Lights and Navigational equipment
When used in conjunction with a suitable Grid Tie inverter WFD2KW can also be connected to the power grid.
Features:
Reliable passive self furling
Autobrake slows down the blades spin when the batteries are charged
Marine quality powder coated aluminium body, all stainless steel hardware, water
Tight housing
Iron Boron Neodymium magnet alternator.
Reliability: The design of the body efficiently flows excess heat into the wind
Reducing operating temperature
One year warranty; Operational life expected to be in excess of 15 years.
Electrical Installation
1) On Grid Connecting
2) Off Grid Connecting
In most cases the loads will be AC(alternating current) and they will be supplied through a DC-to-AC inverter. Communication equipment
Specifications:
Rated Power: 2 KW
Max Power: 2.60 KW
Voltage Options: 48V, 96V, 120V, 240V & Grid Tie
Start Wind Speed: 3m/s
Rated Wind Speed: 10 m/s
Survival Wind Speed: 40m/s
Cut-Out Wind Speed: 13 m/second
Blade Pitch Control: None, Fixed Pitch
Over speed Protection: Side furling with gravity return
Gearbox: None, Direct Drive
Temperature Range: -40 to +60 Deg. C
Rotor Diameter: 4.16 m
Rotor speed: 360 rpm
Blade number: 3
Blade material: Reinforced fibreglass
Height of tower recommended: 9.0 m
Generator: 3 phase permanent magnet alternator
Inverter power output: AC 110/220V, 50Hz/60Hz
Turbine Weight(kg): 42
Apparent Sound Power Level for the Acoustic Reference Wind Speed
*Turbine Sound Pressure Level at 7.3~8.7 m/s: 70.3~85.8 dB
*Background Sound Pressure Level at 7.3~8.7 m/s: 54.6~66.8 dB
*Different between background and turbine: 15.7~19 dB
Suzhou Yueniao Machinery & Electronics Imp & Exp Co., Ltd. is one of the pioneer renewable energy business and has been in this field since 2002. We are dedicated exclusively to the business of small wind generator, mini hydroelectric generator and solar energy.
As a manufacturer with advanced technology, we are making in our own workshop the wind turbine from 300W to 20kw with CE certificates. Beside that we are dealing with business of mini hydroelectric generator from 200W up to 60KW and solar panel from 20W to 280W.
We do not claim any of its products to be the best, but we are proud to hear the owners of our products praise them. And that is what makes all the time and effort we spend on our products worthwhile.
Thank you for your support!
