Small Electric Steam Generator (LDR 4-150KG)

Name: Small Electric Steam Generator (LDR 4-150KG)
Brand: aboutgenerator.com
SKU: 676458625
Availability: InStock
Rating: 4.8 (114 reviews)

Price:	US $ 1500-1580/Set
Trade Terms:	FOB,CFR,EXW
Min Order:	1/Set
Pay Type:	L/C,T/T,D/P,Money Gram

Contact Supplier

Zhangjiagang Future Boiler Manufacture Co., Ltd.

Showroom Product Company Profile

Small Electric Steam Generator (LDR 4-150KG)

I. Brief Introduction:
Small electric steam generator is run by power energy, no noise, no pollution. Using high quality heating elements, with a lower surface heat load and higher thermal efficiency. This product adopts cabinet design style, elegant appearance, compact internal structure and it's ideal for saving space.

1. Small Input Power(3-108KW) with higher output(4-150Kg/h).
2. Use of Nichrome Heating Element, it ensures long-term effective operation of the boiler.
3. Mini Electric Steam Generator has a compact structure with fast heating speed, reaching to use pressure by several minutes.
4. Unique built-in steam-water separator solved a problem of steam with water which brought by similar products.

II. Technical Parameters:

Model		LDR0.004-0.4	LDR0.009-0.7	LDR0.013-0.7	LDR0.017-0.7	LDR0.025-0.7	LDR0.033-0.7	LDR0.042-0.7
Item	Unit	LDR0.004-0.4	LDR0.009-0.7	LDR0.013-0.7	LDR0.017-0.7	LDR0.025-0.7	LDR0.033-0.7	LDR0.042-0.7
Rated steam capacity	Kg/h	4	9	13	17	25	33	42
Rated working pressure	MPa	0.4 (0.7)	0.7 (0.8, 1.0)
Saturated steam temp.	°C	150 (171)	171 (175, 184)
Input Power	KW	3	6	9	12	18	24	30
Input current	A	6	9	14	18	27	36	45
Electric Voltage	V	220	220/380	380 ( / Made to order)
Water inlet dia.	DN	15	15	15	15	15	15	15
Steam outlet dia.	DN	15	15	15	15	15	15	15
Blowdown valve dia.	DN	15	15	15	15	15	15	15
Safety valve dia.	DN	15	15	15	15	15	15	15
Overall dimension (L×W×H)	mm	480×520×850	500×550×920	500×550×920	500×550×920	520×600×1000	520×600×1000	550×730×1130
Net weight	kg	50	75	79	85	92	118	136

Model		LDR0.05-0.7	LDR0.065-0.7	LDR0.074-0.7	LDR0.082-0.7	LDR0.1-0.7	LDR0.13-0.7	LDR0.15-0.7
Item	Unit	LDR0.05-0.7	LDR0.065-0.7	LDR0.074-0.7	LDR0.082-0.7	LDR0.1-0.7	LDR0.13-0.7	LDR0.15-0.7
Rated steam capacity	Kg/h	50	65	74	82	100	130	150
Rated working pressure	MPa	0.7 (0.8, 1.0)
Saturated steam temp.	°C	171 (175, 184)
Input power	KW	36	48	54	60	72	96	108
Input current	A	54	72	81	90	110	145	163
Electric voltage	V	380 ( / Made to order)
Water inlet dia.	DN	15	15	15	15	15	15	20
Steam outlet dia.	DN	15	15	15	20	20	20	25
Blowdown valve dia.	DN	15	15	15	20	20	20	25
Safety valve dia.	DN	15	15	15	20	20	20	25
Overall dimension (L×W×H)	mm	550×730×1130	550×730×1190	550×730×1190	560×770×1250	560×770×1290	630×810×1450	630×810×1450
Net weight	kg	136	149	149	190	210	236	270

III. Details of Electric Steam Generator:

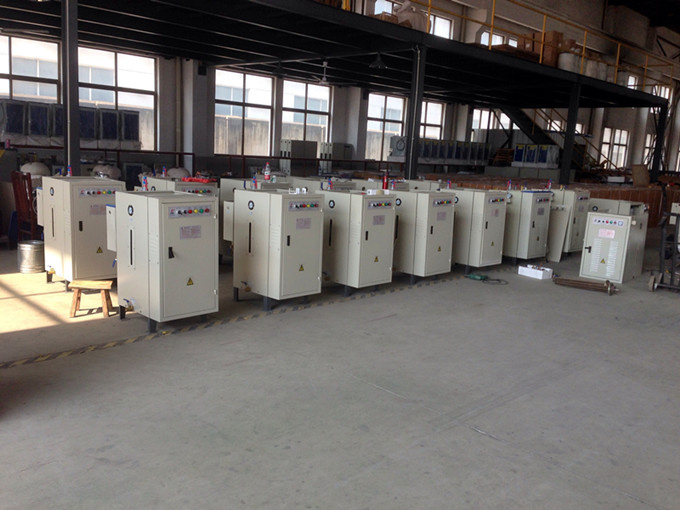

1) Assembly Area:

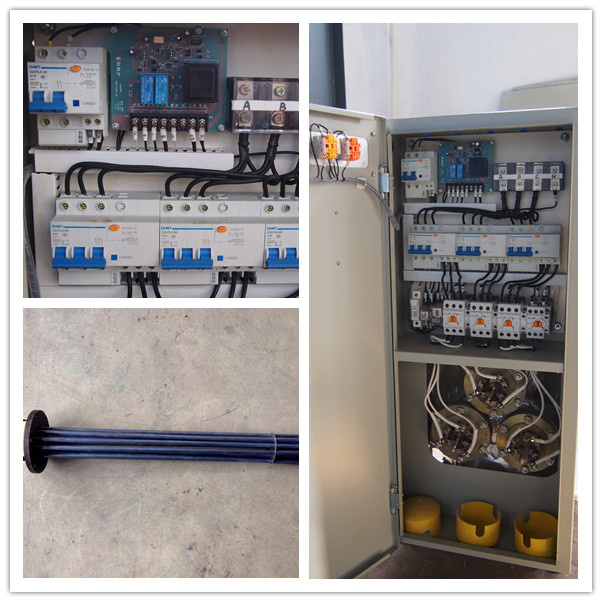

2. High Quality Components & Parts

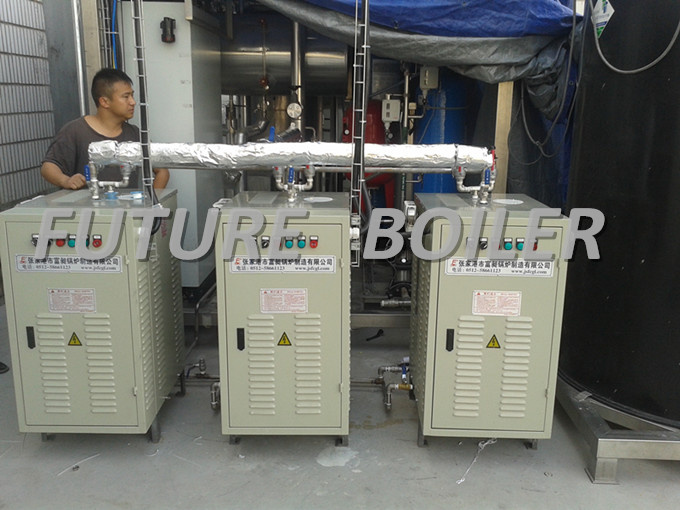

3. Using Site:

Prod Model:	LDR 3-108kW
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product Name:	Small Electric Steam Generator
Heating Elements:	Titanium Alloy, #316L Stainless Steel
Electrical Components:	Schneider, Omron, LG...
Steam Capacity:	4-150kg/H
Rated Working Pressure:	0.7MPa (Made to Order)
Saturated Steam Temp.:	171 °c
Paint:	Blue, White
Feedwater Pump:	Nikuni, Aolong
Main Power Source:	3phase/220-600V/50-60Hz
Lead Time:	5-20days/Set
Function:	Steam Boilers
Fuel:	Electric Heating
Pressure:	Low Pressure
Drum Placement:	Vertical Boiler
Media:	Steam
Installation:	Packaged Boiler
Manufacturing Level:	B
Usage:	Laundry
Burning Style:	Internal Firing Boiler
Structure:	Tubeless
Water Circulation:	Boiling

Zhangjiagang Future Boiler Manufacture Co., Ltd., is a National boiler manufacture license enterprise, which has the certified for the certificate of ISO9001: 2000 quality assurance system. Future Boiler specializes in Oil (Gas) Fired Steam Boiler, Electric Steam Boiler, Small Electric Steam Generator, Electric Hot Water Boiler, Oil(Gas) Fired Hot Water Boiler, Marine Boilers, Boiler Accessories & Auxiliary Machines, etc...We satisfy the requirements of different customers to a maximum extent. In the last few years, we brought products development and sales into the field of high-tech energy conservation and environmental protection.

The company enjoys a good reputation in domestic and abroad by the outstanding quality and consummation service, our products already exported to more than 50 countries and regions, including USA, Europe and other developed countries. Continues growing market needs numerous innovative product concepts.

"Chariness, Carefulness, Patience and Permanent fine quality" is our company's entrepreneurial spirit, which is embodied in our sustainable advancing pace, and in getting along with customers, partners, internal staff and competitors.
