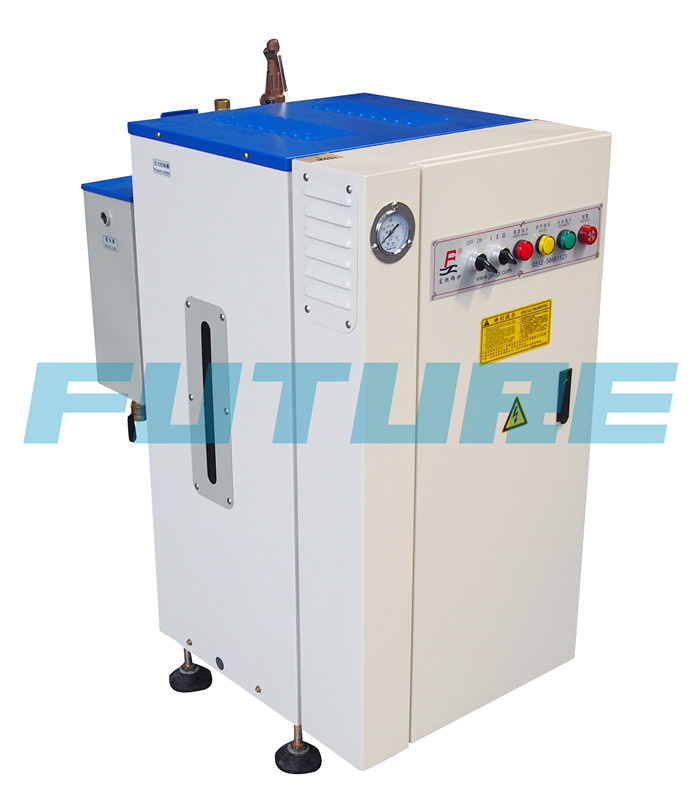

China Automatic Electrical Steam Generator
| Price: |
US $ 1880-2080/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,D/P |
China Automatic Electrical Steam Generator:
I. Product Introduction:
"FUTURE" automatic Electrical Steam Generator(Boiler) is run by power energy, no noise, no pollution. Using high quality heating elements, with a lower surface heat load and higher thermal efficiency. This product adopts cabinet design style, elegant appearance, compact internal structure and it's ideal for saving space.
II. Characteristics of Boiler Control System:
1. Adjustable for steam pressure.
2. Power sub-file with switching function.
3. Boiler body uses of stainless steel material, espeically in the field of Pharmaceutical, laboratory, etc...
4. Electric cabinet adopt water and electricity separation type, preventing electrical aging and easy to maintain.
5. Adopt of advanced Micro-computer controller, has the features of reliable performance, high automation and easy to operate, etc.
6. Main Electrical Components adopt world famous brands, scuh as SCHNEIDER, Siemens, LG, etc...
7. By use of TitaniumAlloy Heating Element (Options for WATLOM-USA), high temperature resistance of electric wire more than 1000° C, service life is 5-10 times than traditional one, the application of magnesium rod anode technology, it ensures that that heating element difficult to form scale, any other product is incomparable.
Details of Electrical Steam Generator:

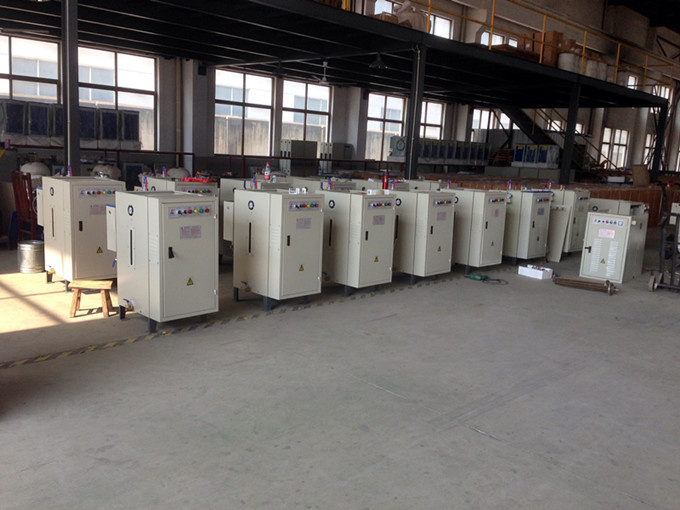

1) Assembly Area:

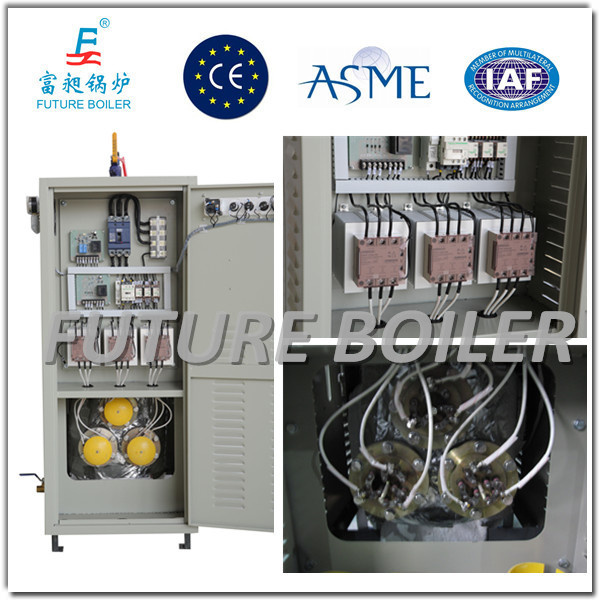

2) World First-class Electrical Components & Parts:

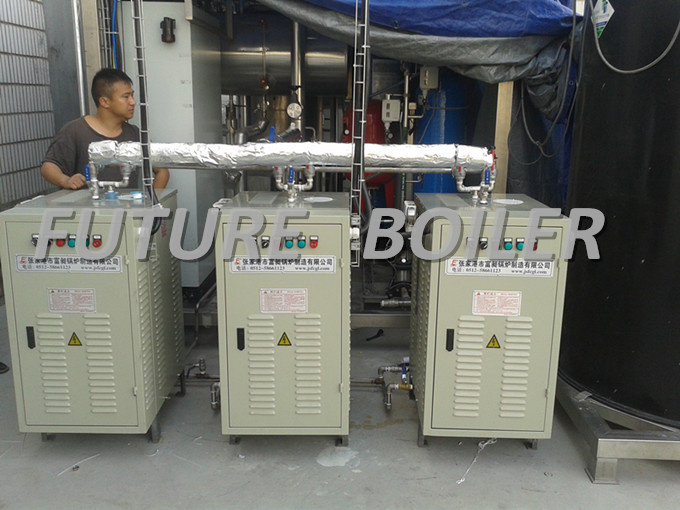

3) Customer Using Site:
IV. Technical Paramters:| Model | LDR0.004
-0.7 | LDR0.009
-0.7 | LDR0.013
-0.7 | LDR0.017
-0.7 | LDR0.025
-0.7 | LDR0.035
-0.7 | LDR0.05
-0.7 | LDR0.065
-0.7 | LDR0.085-0.7 |
| Item | Unit |
| Rated Steam Capacity | Kg/h | 4 | 9 | 13 | 17 | 25 | 35 | 50 | 65 | 85 |
| Rated Working Pressure |
MPa/
bar | 0.7/7 (Available for adjustment) |
| Saturated Steam Temperature | ° C | 171 (Available for adjustment) |
| Input Power | KW | 3 | 6 | 9 | 12 | 18 | 24 | 36 | 48 | 60 |
| Input Current | A | 6 | 9 | 14 | 18 | 27 | 41 | 55 | 73.8 | 92 |
| Voltage | V | 220 / 380 (Available for adjustment ) |
| Water Inlet | DN | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 |
| Steam Outlet | DN | 15 | 15 | 15 | 15 | 15 | 15 | 20 | 20 | 25 |
| Blowdown Valve | DN | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 25 |
| Safety Valve | DN | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 25 |
| Dimension | mm | 680× 520× 850 | 750× 550× 920 | 850× 600× 1000 | 920× 700× 1250 | 960× 730× 1390 |
| Weight | kg | 60 | 89 | 92 | 100 | 110 | 135 | 151 | 183 | 230 |
| Prod Model: |
LDR 3-8.5BHP |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Electrical Steam Generat: |
China Automatic Electrical Steam Generator |
| Main Power Source: |
3phase/220-600V/50-60Hz |
| Heating Element: |
Titanium Alloy, SUS316L |
| Rated Working Pressure: |
0.7MPa (101psig) |
| Saturated Steam Temp.: |
171°c |
| Thermal Efficiency: |
98% |
| Paint Color: |
White, Blue |
| Insulation Thickness: |
60mm |
| Lead Time: |
5-10days/Set |
| Certificate: |
CE |
| Usage: |
Industrail Boiler |
| Structure: |
Vertical |
| Fuel: |
Electric |
| Flow Path: |
Shell Boiler |
| Installation: |
Fast Loading |
| Pressure: |
Low Pressure |
| Combustion: |
Electric Heating |
| Type: |
Tubular |
| Series: |
Ldr |
| Brand: |
Future |
Zhangjiagang Future Boiler Manufacture Co., Ltd., is a National boiler manufacture license enterprise, which has the certified for the certificate of ISO9001: 2000 quality assurance system. Future Boiler specializes in Oil (Gas) Fired Steam Boiler, Electric Steam Boiler, Small Electric Steam Generator, Electric Hot Water Boiler, Oil(Gas) Fired Hot Water Boiler, Marine Boilers, Boiler Accessories & Auxiliary Machines, etc...We satisfy the requirements of different customers to a maximum extent. In the last few years, we brought products development and sales into the field of high-tech energy conservation and environmental protection.
The company enjoys a good reputation in domestic and abroad by the outstanding quality and consummation service, our products already exported to more than 50 countries and regions, including USA, Europe and other developed countries. Continues growing market needs numerous innovative product concepts.
"Chariness, Carefulness, Patience and Permanent fine quality" is our company's entrepreneurial spirit, which is embodied in our sustainable advancing pace, and in getting along with customers, partners, internal staff and competitors.
