Compact Oil Fired Steam Generator (50-2000Kg/h)
| Price: |
US $ 9860-9980/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1Set |
| Pay Type: |
L/C,T/T |

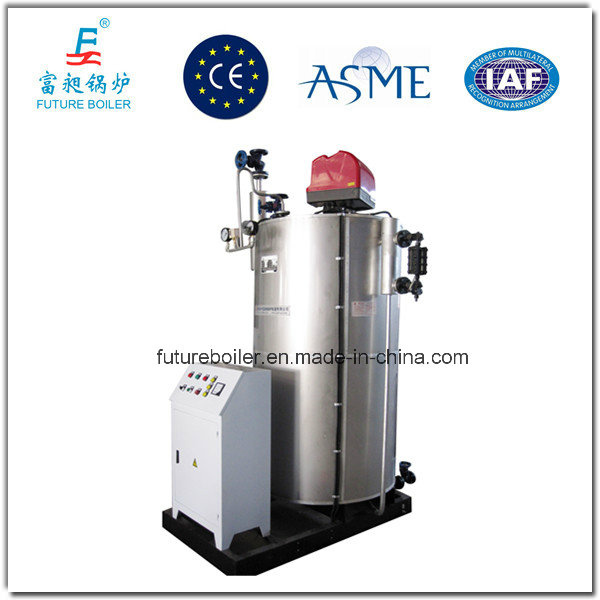

Compact Oil Fired Steam Generator (50-2000Kg/h)
I. Brief Introduction:
Future Boiler Manufacture Co., Ltd offers a wide range of innovative, highly efficient vertical oil(gas)steam boilers(50-1000Kg/h). Our steam boilers provide a safe, reliable and rapid method of steam generation for the industrial user.
1. Compact Design
Vertical top fired design ensures minimum floor space required.
2. Easy of Operation
LSS Series of steam boilers are designed for fully automatic operation and have minimal maintenance requirements.
3. Highly Efficient Operation
Experts from Chinese Natonal Industrial Boiler Research Institute made a rigorous testing of the boiler, the thermal efficiency reached to 90% (with Economizer).
4. Safety Features
The LSS steam boilers are fitted with safety valves in excess of the requirements of the standards covering the boiler design.
5. Quick Steam Generation Time
Future boilers generate steam at the prescribed pressure in 10-15 minutes after starting the operation. Quick steam generation allows users to set work at any time. II. Technical Parameters: | Model | LSS0.05-0.7-Y.Q | LSS0.1-0.7-Y.Q | LSS0.15-0.7-Y.Q | LSS0.2-0.7-Y.Q | LSS0.3-0.7-Y.Q |
| Item Name | Unit |
| Rated Steam Capacity | Kg/h | 50 | 100 | 150 | 200 | 300 |
| Boiler Horse Power | BHP | 3.2 | 6.4 | .9.6 | 12.8 | 18.2 |
| Rated Working Pressure | MPa | 0.7 |
| Saturated Steam Temp. | °C | 171 |
| Fuel Consumption | Light Diesel | Kg/h | 3.4 | 6.7 | 9.9 | 13.5 | 20.3 |
| Natural Gas | Nm3/h | 3.7 | 7.3 | 11.6 | 14.7 | 22.1 |
| LPG | Nm3/h | 1.6 | 3.3 | 4.9 | 6.7 | 10.1 |
| Water Inlet Dia. | DN | 15 | 15 | 15 | 15 | 25 |
| Steam Outlet Dia. | DN | 15 | 15 | 25 | 40 | 40 |
| Safety Valve Dia. | DN | 20 | 20 | 25 | 40 | 40 |
| Blowdown Valve Dia. | DN | 20 | 20 | 25 | 25 | 32 |
| Overall Dimension | mm | Φ580×1400 | Φ730x1810 | Φ770×2000 | Φ770×2000 | Φ940×2630 |
| Net Weight | kg | 230 | 320 | 480 | 660 | 780 |
| Model | LSS0.5-0.8-Y.Q | LSS0.8-0.8-Y.Q | LSS1-1.0-Y.Q | LSS1.5-1.0-Y.Q | LSS2-1.0-Y.Q |
| Item Name | Unit |
| Rated Steam Capacity | Kg/h | 500 | 800 | 1000 | 1500 | 2000 |
| Boiler Horse Power | BHP | 32 | 51.2 | 64 | 96 | 128 |
| Rated Working Pressure | bar | 8 | 10 |
| Saturated Steam Temp. | °C | 175 | 184 |
| Fuel Consumption | Light Diesel | Kg/h | 34 | 54.5 | 68 | 102 | 136 |
| Natural Gas | Nm3/h | 37 | 59.2 | 74 | 112 | 148 |
| LPG | Nm3/h | 13 | 21 | 26 | 39 | 52 |
| Water Inlet Dia. | DN | 25 | 25 | 25 | 32 | 32 |
| Steam Outlet Dia. | DN | 40 | 40 | 50 | 50 | 65 |
| Safety Valve Dia. | DN | 40 | 40 | 40 | 40 | 2×40 |
| Blowdown Valve Dia. | DN | 40 | 40 | 50 | 50 | 50 |
| Overall Dimension | mm | Φ1240x2930 | Φ1480x3030 | Φ1660x3110 | Φ1660x3320 | Φ1760x3750 |
| Net Weight | kg | 1800 | 2760 | 3890 | 4300 | 4900 |
Details of Oil Fired Steam Generator

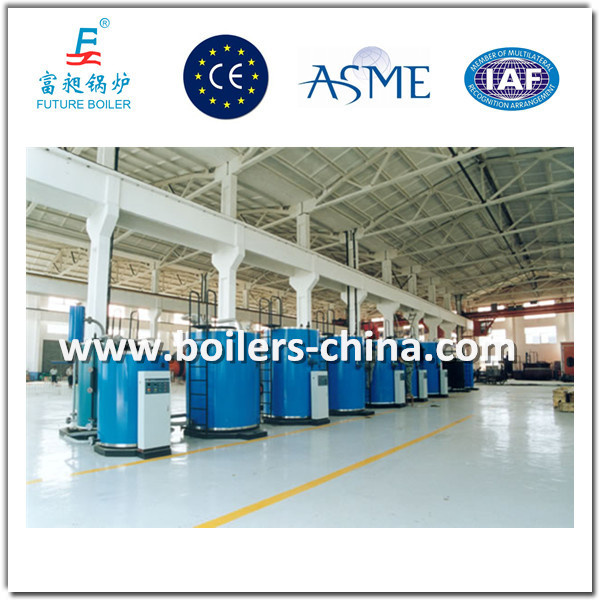

1) Assembly in Factory:

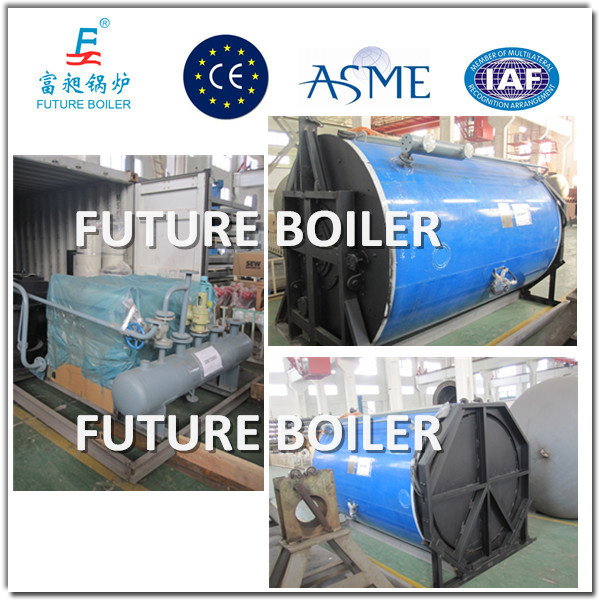

2) Transportation of goods:
III. Why Choose US!
We are a professional boiler manufacturer and exporter. Very sincerely looking for long-term win-win business here.
Major exports include electric steam boiler, oil(gas) steam boiler, oil(gas) hot water boiler, and oil(gas)thermal oil boiler and marine boilers, etc.
We warmly welcome you to enquiry us, and also appreciate any of your comments!
| Prod Model: |
LSS Oil Fired Steam Generator |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe |
| Oil Fired Steam Generator: |
Compact Oil Fired Steam Generator (50-2000kg/H) |
| Steam Capacity: |
50-2000kg/H |
| Working Pressure: |
7-25bar |
| Available Fuel: |
Light Diesel, Natural Gas/LPG |
| Cladding Material: |
SUS304, 316L |
| Insulation Thickness: |
80-120mm |
| Main Power Source: |
3p/220-600V/50-60Hz |
| Lead Time: |
30-60days/Set |
| Burner: |
Weishaupt, Riello, Baltur |
| Min. Order: |
1set |
| Function: |
Steam Boilers |
| Fuel: |
Oil-Fired |
| Installation: |
Packaged Boiler |
| Structure: |
Water Tube |
| Media: |
Steam |
| Water Circulation: |
Natural Circulation |
| Drum Placement: |
Vertical Boiler |
| Pressure: |
Low Pressure |
| Manufacturing Level: |
B |
| Usage: |
Industrial |
| Burning Style: |
Internal Combustion |
