Chinese Electric Steam Generator for Sale
Price: |
US $ 2200-2280/Set |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Set |
Pay Type: |
L/C,T/T,D/P |

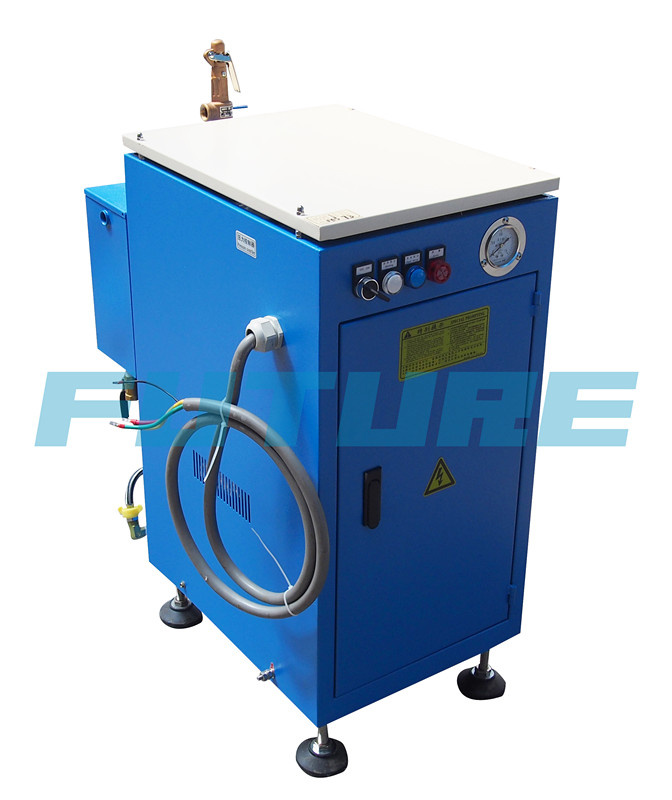

Chinese Electric Steam Generator for Sale
I. Introduction:
"FUTURE" Small electric steam generator is run by power energy, no noise, no pollution. Using high quality heating elements, with a lower surface heat load and higher thermal efficiency. This product adopts cabinet design style, elegant appearance, compact internal structure and it's ideal for saving space.
II. Featues:
1. Small Input Power(3-108KW) with higher output(4-150Kg/h).
2. Use of Titanium Alloy Heating Element, it ensures long-term effective operation of the boiler.
3. Electric Steam Generator has a compact structure with fast heating speed, reaching to use pressure by several minutes.
4. Unique built-in steam-water separator solved a problem of steam with water which brought by similar products.
IDEAL FOR CLOTHES PRESSING, LAUNDRY, HOSPITAL, FOOD PROCESSING AND STEAM ROOM APPLICATIONS, etc...III. Technical Parameters:Model | LDR0.004-0.4 | LDR0.009-0.7 | LDR0.013-0.7 | LDR0.017-0.7 | LDR0.025-0.7 | LDR0.033-0.7 | LDR0.042-0.7 |
Item | Unit |
Rated steam capacity | Kg/h | 4 | 9 | 13 | 17 | 25 | 33 | 42 |
Rated working pressure | MPa | 0.4 (0.7) | 0.7 (0.8, 1.0) |
Saturated steam temp. | °C | 150 (171) | 171 (175, 184) |
Input Power | KW | 3 | 6 | 9 | 12 | 18 | 24 | 30 |
Input current | A | 6 | 9 | 14 | 18 | 27 | 36 | 45 |
Electric Voltage | V | 220 | 220/380 | 380 (Made to order) |
Water inlet dia. | DN | 15 | 15 | 15 | 15 | 15 | 15 | 15 |
Steam outlet dia. | DN | 15 | 15 | 15 | 15 | 15 | 15 | 15 |
Blowdown valve dia. | DN | 15 | 15 | 15 | 15 | 15 | 15 | 15 |
Safety valve dia. | DN | 15 | 15 | 15 | 15 | 15 | 15 | 15 |
Overall dimension (L×W×H) | mm | 480×520×850 | 500×550×920 | 500×550×920 | 500×550×920 | 520×600×1000 | 520×600×1000 | 550×730×1130 |
Net weight | kg | 50 | 75 | 79 | 85 | 92 | 118 | 136 |
Model | LDR0.05-0.7 | LDR0.065-0.7 | LDR0.074-0.7 | LDR0.082-0.7 | LDR0.1-0.7 | LDR0.13-0.7 | LDR0.15-0.7 |
Item | Unit |
Rated steam capacity | Kg/h | 50 | 65 | 74 | 82 | 100 | 130 | 150 |
Rated working pressure | MPa | 0.7 (0.8, 1.0) |
Saturated steam temp. | °C | 171 (175, 184) |
Input power | KW | 36 | 48 | 54 | 60 | 72 | 96 | 108 |
Input current | A | 54 | 72 | 81 | 90 | 110 | 145 | 163 |
Electric voltage | V | 380 (Made to order) |
Water inlet dia. | DN | 15 | 15 | 15 | 15 | 15 | 15 | 20 |
Steam outlet dia. | DN | 15 | 15 | 15 | 20 | 20 | 20 | 25 |
Blowdown valve dia. | DN | 15 | 15 | 15 | 20 | 20 | 20 | 25 |
Safety valve dia. | DN | 15 | 15 | 15 | 20 | 20 | 20 | 25 |
Overall dimension (L×W×H) | mm | 550×730×1130 | 550×730×1190 | 550×730×1190 | 560×770×1250 | 560×770×1290 | 630×810×1450 | 630×810×1450 |
Net weight | kg | 136 | 149 | 149 | 190 | 210 | 236 | 270 |

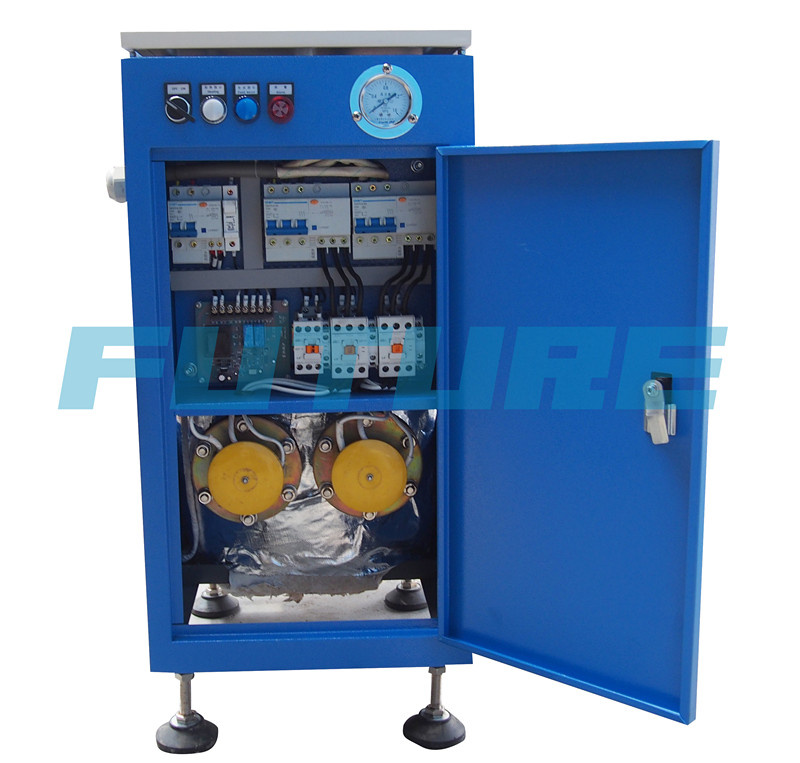

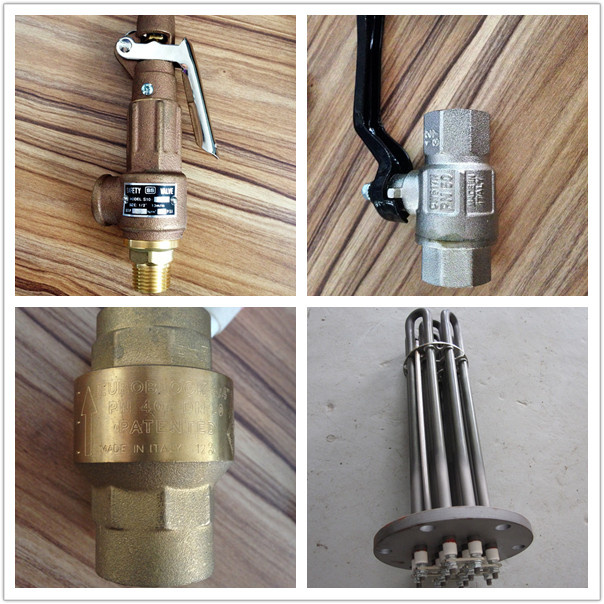

IV. Inside View of Electric Steam Generator:V. Top Quality Parts & Components1) Heating heatings: Titanium alloy (3-year warranty)2) Valves: Imported from Italy & Taiwan

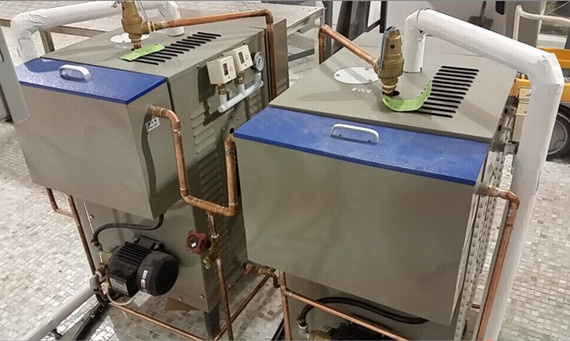

VI. Customer Using Site (In Canada):
Prod Model: |
LDR Series |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Name: |
Chinese Electric Steam Generator |
Steam Capacity: |
4-150kg/H |
Input Power: |
3-108kw |
Main Power Source: |
3phase 220-660V |
Rated Working Pressure: |
0.7MPa (Made to Order) |
Saturated Steam Temperature: |
171°c |
Heating Element: |
Titanium Alloy, #316L Stainless Steel |
Electric Components: |
Schneider, Siemens, Omron, ABB, LG... |
Paint: |
Blue, White |
Lead Time: |
5-15days/Set |
Usage: |
Industrail Boiler |
Structure: |
Vertical |
Fuel: |
Electric |
Flow Path: |
Shell Boiler |
Installation: |
Fast Loading |
Pressure: |
Low Pressure |
Combustion: |
Boiling Boiler |
Type: |
Tubular |
Series: |
Ldr |
Brand: |
Future |
Zhangjiagang Future Boiler Manufacture Co., Ltd., is a National boiler manufacture license enterprise, which has the certified for the certificate of ISO9001: 2000 quality assurance system. Future Boiler specializes in Oil (Gas) Fired Steam Boiler, Electric Steam Boiler, Small Electric Steam Generator, Electric Hot Water Boiler, Oil(Gas) Fired Hot Water Boiler, Marine Boilers, Boiler Accessories & Auxiliary Machines, etc...We satisfy the requirements of different customers to a maximum extent. In the last few years, we brought products development and sales into the field of high-tech energy conservation and environmental protection.
The company enjoys a good reputation in domestic and abroad by the outstanding quality and consummation service, our products already exported to more than 50 countries and regions, including USA, Europe and other developed countries. Continues growing market needs numerous innovative product concepts.
"Chariness, Carefulness, Patience and Permanent fine quality" is our company's entrepreneurial spirit, which is embodied in our sustainable advancing pace, and in getting along with customers, partners, internal staff and competitors.
