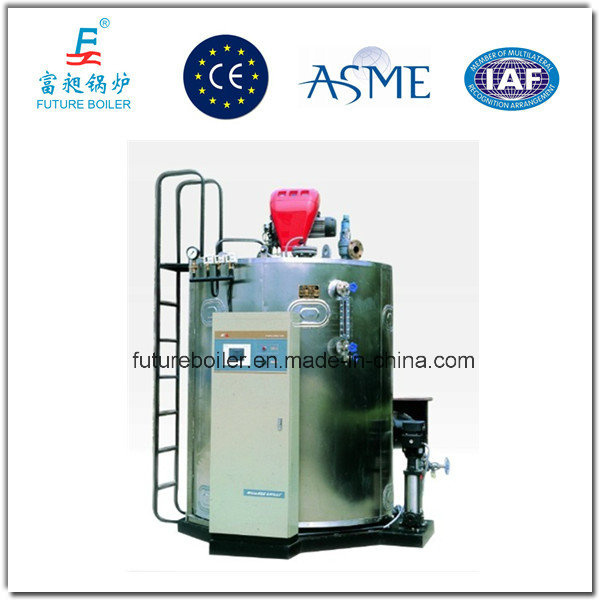

Industrial Gas Fired Steam Generator (LSS2-1.0)I. Introduction: Future Boiler Manufacture Co., Ltd. offers a wide range of innovative, top quality gas(oil) powered industrial steam generators(500-4000Kg/h). Our steam boilers provide a safe, reliable and rapid method of steam generation for the industrial user.
Future steam generator has high efficiency in steam cycling and heat exchange. The thermal efficiency reaches to 90% or above and the flue discharge meets the European EN 267 standards. It is an E. P. And energy-saving product. This boiler has reached the international industrial standards in the aspects of safety, environment protection, and economical technology. The boiler has a rationally designed structure, and the area of heat exchange surface is twice of the boilers of the same model.
II. Technical Parameters:
Item/Model | LSS0.5-0.7 -Y/Q | LSS0.8-1.0 -Y/Q | LSS1-1.0 -Y/Q | LSS1.51.0 -Y/Q | LSS2-1.0 -Y/Q | LSS3-1.25 -Y/Q | LSS4-1.25 -Y/Q | Unit |
Rated steam capacity | 0.5 | 0.8 | 1.0 | 1.5 | 2.0 | 3.0 | 4.0 | t/h |
Rated steam pressure | 0.7 / 7 | 1.0 / 10 (Available for adjustment) | 1.25 / 12.5 (Available for adjustment) | Mpa / Bar |
Rated steam temperature | 170 | 184 | 193 | ° C |
Rated water supply temperature | 25 | ° C |
Thermal efficiency | ≥ 90 | % |
Rated thermal output | 372 | 568 | 743 | 1115 | 1485 | 2230 | 2977 | KW |
Heat transfer area | 17.6 | 19.8 | 22 | 30.5 | 37.68 | 48.85 | 57.96 | m 2 |
Pressure hydraulic test | 1.05 | 1.4 | 1.4 | 1.4 | 1.4 | 1.65 | 1.65 | MPa |
Running Fuel | Natural Gas, LPG, Town Gas / Diesel Oil , Heavy Fuel Oil |
Diesel Oil | 34 | 55 | 68 | 102 | 136 | 205 | 272 | Kg/h |
Heavy Fuel Oil |
|
| 70.7 | 106.1 | 141.5 | 213.2 | 282.9 | Kg/h |
Natural Gas | 39.7 | 63.5 | 79.4 | 119 | 158.8 | 238.2 | 317.6 | NM 3 /h |
LPG | 13 | 21 | 26 | 39 | 52 | 78 | 104 | NM 3 /h |
Town Gas | 91 | 146 | 182 | 273 | 364 | 546 | 728 | NM 3 /h |
Burning method | Pressurized firing |
Adjusting method | Two-stage burning control | Three-stage / Fully Modulation burning control |
Air supply pressure | Natural gas | ≥ 5000 | Pa |
LPG | ≥ 5000 |
Town Gas | ≥ 6000 |
Service power source | 380V/50HZ (Available for adjustment) |
Power of fan and oil pump | 1.5 | 2.2 | 3 | 4 | 7.5 | 11 | 13 | KW |
Power of feed pump | 1.5 | 2.2 | 3 | 5.5 |
Volume of water supply tank | According to the user' s requirement |
Boiler diameter x height | 1240x2930 | 1480x3030 | 1660x3110 | 1660x3320 | 1760x3570 | 1900x3925 | 2000x4200 | mm |
Dimension of external interface | Steam outlet | PN | 1.6 |
DN | 40 | 50 | 50 | 65 | 80 | 100 | mm |
Water inlet | PN | 1.6 |
DN | 25 | 32 | 32 | 40 | 50 | mm |
Drainage | PN | 1.6 |
DN | 32 | 40 | 50 | 65 | mm |
Safety valve | PN | 1.6 |
DN | 40 | 50 | 2 x 50 | mm |
Chimney interface | 320 | 360 | 360 | 400 | 450 | 510 | 590 | mm |
Boiler net weight | 2000 | 3080 | 4120 | 4500 | 5250 | 7850 | 9510 | Kg |
III. Details:

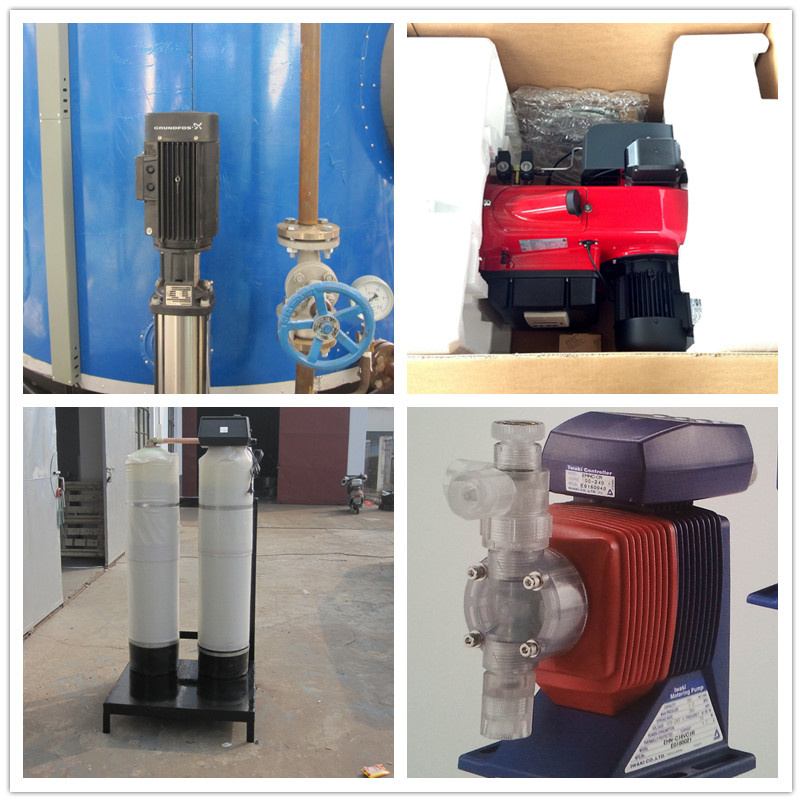

1) World First-class Quality Accessories:

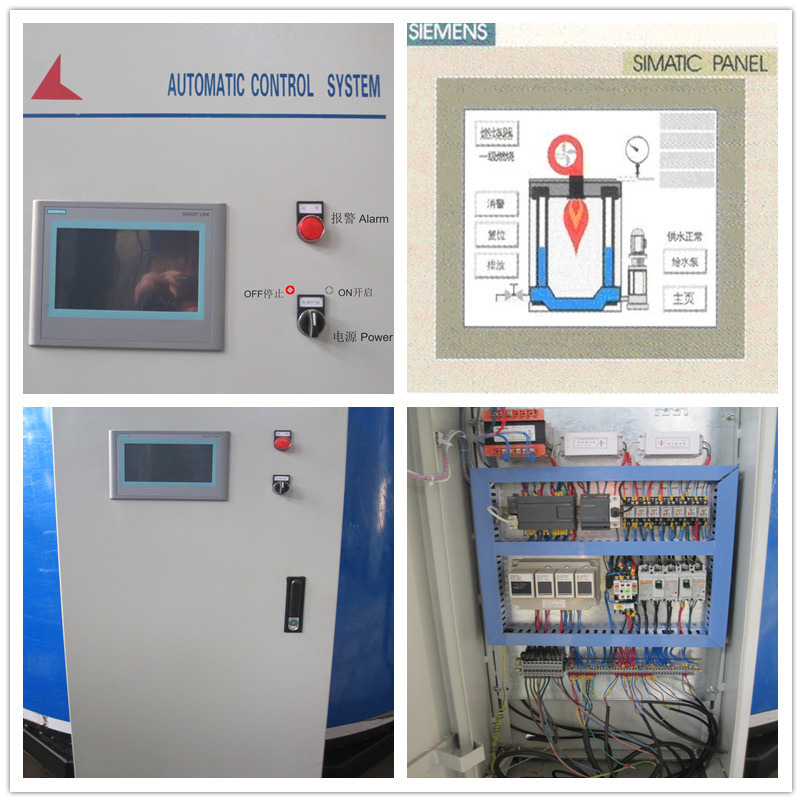

2) Electric Control Box(Only for reference):

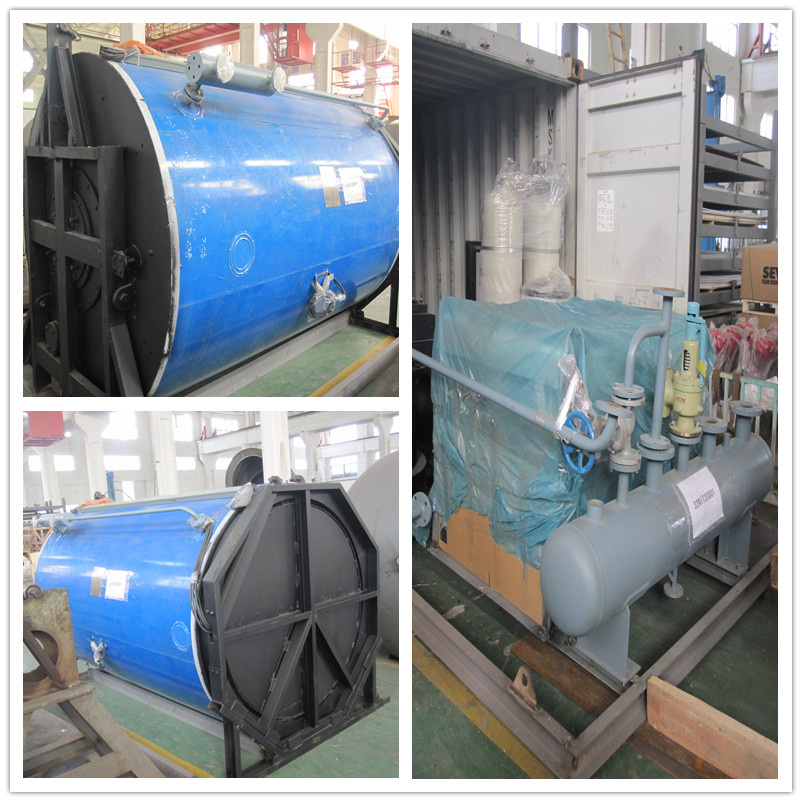

3) Package & Delivery:
