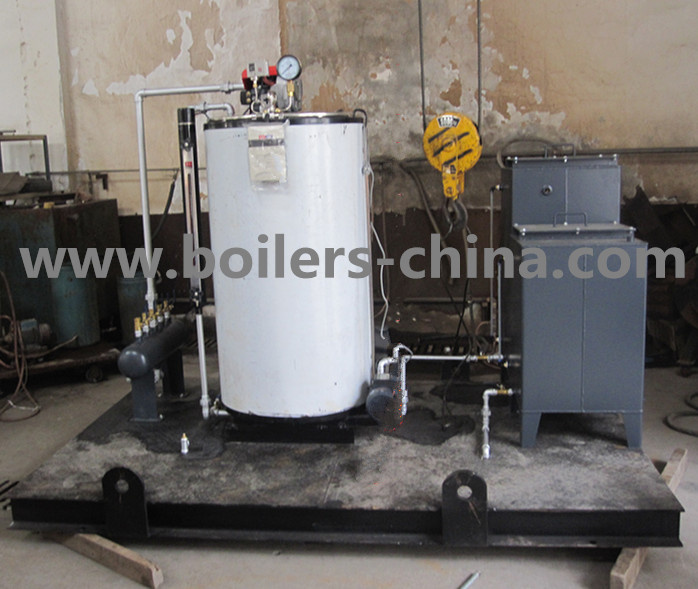

Portable Diesel Steam Generator:
1) Steam Capacity: 50-300kg/h
2) Working Pressure: 101PSIG (7bar)
3) Saturated Steam Temp.: 171° C
4) Available Fuel: Diesel / Natural Gas, LPG
I. Details Introduction:
Future Boiler Manufacture Co., Ltd offers a wide range of innovative, highly efficient portable diesel/gas steam generators(50-300Kg/h). Our steam generators provide a safe, reliable and rapid method of steam generation for the industrial user.
The whole system combines boiler, steam header, water treatment, daily oil tank, soft water tank, steam pipelines into one complete set, the user only connects to electric power, in&out pot of medium for pipeline. With characteristics. Of reasonable structure, complete facility, short instrallation cycle, convenient operation and maintenance, facilitate boiler layout, etc.
II. Technical Parameters
|
Model |
LSS0.05-0.7-Y.Q |
LSS0.1-0.7-Y.Q |
LSS0.15-0.7-Y.Q |
LSS0.2-0.7-Y.Q |
LSS0.3-0.7-Y.Q |
|
Item Name |
Unit |
|
Rated Steam Capacity |
Kg/h |
50 |
100 |
150 |
200 |
300 |
|
Boiler Horse Power |
BHP |
3.2 |
6.4 |
.9.6 |
12.8 |
18.2 |
|
Rated Working Pressure |
bar |
7 |
|
Saturated Steam Temp. |
°C |
171 |
|
Fuel Consumption |
Light Diesel |
Kg/h |
3.4 |
6.7 |
9.9 |
13.5 |
20.3 |
|
Natural Gas |
Nm3/h |
3.7 |
7.3 |
11.6 |
14.7 |
22.1 |
|
LPG |
Nm3/h |
1.6 |
3.3 |
4.9 |
6.7 |
10.1 |
|
Water Inlet Dia. |
DN |
15 |
15 |
15 |
15 |
25 |
|
Steam Outlet Dia. |
DN |
15 |
15 |
25 |
40 |
40 |
|
Safety Valve Dia. |
DN |
20 |
20 |
25 |
40 |
40 |
|
Blowdown Valve Dia. |
DN |
20 |
20 |
25 |
25 |
32 |
|
Overall Dimension |
mm |
Φ580×1400 |
Φ730x1810 |
Φ770×2000 |
Φ770×2000 |
Φ940×2630 |
|
Net Weight |
kg |
230 |
320 |
480 |
660 |
780 |
