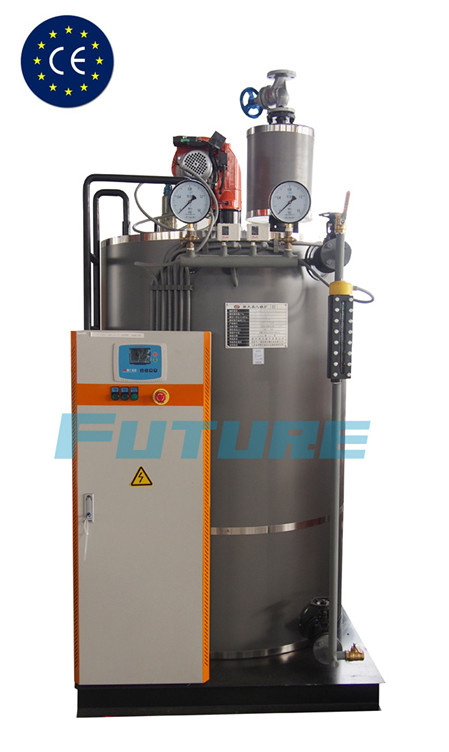

Compact Oil Fired Steam Generator (50-2000Kg/h)
I. Brief Introduction:
Future Boiler Manufacture Co., Ltd offers a wide range of innovative, highly efficient vertical oil(gas)steam boilers(50-1000Kg/h). Our steam boilers provide a safe, reliable and rapid method of steam generation for the industrial user.
1. Compact Design
Vertical top fired design ensures minimum floor space required.
2. Easy of Operation
LSS Series of steam boilers are designed for fully automatic operation and have minimal maintenance requirements.
3. Highly Efficient Operation
Experts from Chinese Natonal Industrial Boiler Research Institute made a rigorous testing of the boiler, the thermal efficiency reached to 90% (with Economizer).
4. Safety Features
The LSS steam boilers are fitted with safety valves in excess of the requirements of the standards covering the boiler design.
5. Quick Steam Generation Time
Future boilers generate steam at the prescribed pressure in 10-15 minutes after starting the operation. Quick steam generation allows users to set work at any time.
II. Technical Parameters:
Model | LSS0.05-0.7-Y.Q | LSS0.1-0.7-Y.Q | LSS0.2-0.8-Y.Q | LSS0.3-0.8-Y.Q | LSS0.4-0.8-Y.Q |
Item | Unit |
Rated Steam Capacity | Kg/h | 50 | 100 | 200 | 300 | 400 |
Rated Working Pressure | MPa | 0.7 | 0.8 |
Saturated Steam Temperature | ºC | 171 | 175 |
Fuel Consumption | Light Diesel | kg/h | 3.4 | 6.7 | 9.9 | 13.5 | 20.3 |
Natural Gas | Nm3/h | 3.7 | 7.3 | 11.6 | 14.7 | 22.1 |
LPG | Nm3/h | 1.6 | 3.3 | 4.9 | 6.7 | 10.1 |
Water inlet dia. | DN | 15 | 15 | 15 | 15 | 25 |
Steam outlet dia. | DN | 15 | 15 | 25 | 40 | 40 |
Safety valve dia. | DN | 20 | 20 | 25 | 40 | 40 |
Blowdown valve dia. | DN | 20 | 20 | 25 | 25 | 32 |
Overall dimension (Diameter×Height) | mm | Φ580×1400 | Φ730x1810 | Φ770×2000 | Φ940×2630 | Φ980×2680 |
Net weight | kg | 230 | 320 | 660 | 780 | 950 |
Model | LSS0.5-0.8-Y.Q | LSS0.8-0.8-Y.Q | LSS1-1.0-Y.Q | LSS1.5-1.0-Y.Q | LSS2-1.0-Y.Q |
Item | Unit |
Rated Steam Capacity | kg/h | 500 | 800 | 1000 | 1500 | 2000 |
Rated Working Pressure | MPa | 0.8 | 1.0 |
Saturated Steam Temperature | ºC | 175 | 184 |
Fuel Consumption | Light Diesel | kg/h | 34 | 54.5 | 68 | 102 | 136 |
Natural Gas | Nm3/h | 37 | 59.2 | 74 | 112 | 148 |
LPG | Nm3/h | 13 | 21 | 26 | 39 | 52 |
Water inlet dia. | DN | 25 | 25 | 25 | 32 | 32 |
Main steam outlet dia. | DN | 40 | 40 | 50 | 50 | 65 |
Safety valve dia. | DN | 40 | 40 | 40 | 40 | 2×40 |
Blowdown valve dia. | DN | 40 | 40 | 50 | 50 | 50 |
Overall dimension (Diameter×Height) | mm | Φ1240x2930 | Φ1480x3030 | Φ1660x3110 | Φ1660x3320 | Φ1760x3750 |
Net weight | kg | 2000 | 3080 | 4120 | 4500 | 5250 |
III. Why Choose US!
We are a professional boiler manufacturer and exporter. Very sincerely looking for long-term win-win business here.
Major exports include electric steam boiler, oil(gas) steam boiler, oil(gas) hot water boiler, and oil(gas)thermal oil boiler and marine boilers, etc.
We warmly welcome you to enquiry us, and also appreciate any of your comments!
Zhangjiagang Future Boiler Manufacture Co., Ltd., is a National boiler manufacture license enterprise, which has the certified for the certificate of ISO9001: 2000 quality assurance system. Future Boiler specializes in Oil (Gas) Fired Steam Boiler, Electric Steam Boiler, Small Electric Steam Generator, Electric Hot Water Boiler, Oil(Gas) Fired Hot Water Boiler, Marine Boilers, Boiler Accessories & Auxiliary Machines, etc...We satisfy the requirements of different customers to a maximum extent. In the last few years, we brought products development and sales into the field of high-tech energy conservation and environmental protection.
The company enjoys a good reputation in domestic and abroad by the outstanding quality and consummation service, our products already exported to more than 50 countries and regions, including USA, Europe and other developed countries. Continues growing market needs numerous innovative product concepts.
"Chariness, Carefulness, Patience and Permanent fine quality" is our company's entrepreneurial spirit, which is embodied in our sustainable advancing pace, and in getting along with customers, partners, internal staff and competitors.
