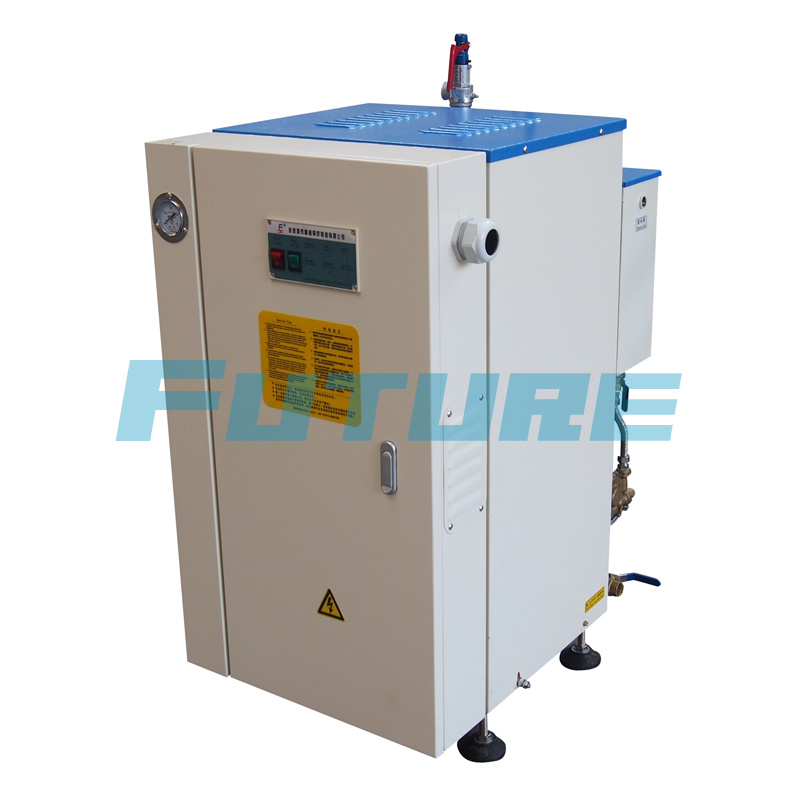

Chinese 54kw Electric Steam Generator
Price: |
US $ 2580-2650/Set |
Trade Terms: |
FOB,CFR,EXW |
Min Order: |
1/Set |
Pay Type: |
L/C,T/T,D/P |
Chinese 54kw Electric Steam Generator
1)Steam Capacity: 74Kg/h
2)Power: 54KW
3)Pressure: 101PSIG
3)Power Voltage: 3P/380V/50Hz
I. Product Introduction:
Mini Electric Steam Generator(Boiler) is run by power energy, no noise, no pollution. Using high quality heating elements, with a lower surface heat load and higher thermal efficiency. This product adopts cabinet design style, elegant appearance, compact internal structure and it's ideal for saving space.
II. Technical Paramters:Model | LDR0.074-0.7 |
Item | Unit |
Rated Steam Capacity | kg/h | 74 |
Rated Working Pressure | MPa | 0.7 (Made to order) |
Saturated Steam Temperature | °C | 171 |
Input Power | KW | 54 |
Rated Current | A | 82 |
Main Power Source | V/Hz | 3Phase, 380/50 (Made to order) |
Water Inlet | DN | 15 |
Steam Outlet | DN | 20 |
Blowdown Valve | DN | 20 |
Safety Valve | DN | 20 |
Overall Dimension(L×W×H) | mm | 730×550×1250 |
Net Weight | kg | 156 |
III. Characteristics of Steam Generator Control System:
1. Adjustable for steam pressure.
2. Power sub-file with switching function.
3. Boiler body uses of stainless steel material, espeically in the field of Pharmaceutical, laboratory, etc...
4. Electric cabinet adopt water and electricity separation type, preventing electrical aging and easy to maintain.
5. Adopt of advanced Micro-computer controller, has the features of reliable performance, high automation and easy to operate, etc.
6. Main Electrical Components adopt world famous brands, scuh as SCHNEIDER, OMRON, LG, etc...
7. By use of high quality Incoloy800 Heating Element, high temperature resistance of electric wire more than 1200° C, service life is 8-12 times than traditional one, the application of magnesium rod anode technology, it ensures that that heating element difficult to form scale, any other product is incomparable.
Prod Model: |
LDR0.074-0.7 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
54kw Electric Steam Generator: |
Chinese 54kw Electric Steam Generator |
Steam Capacity: |
74kg/H |
Input Power: |
54kw |
Rated Working Pressure: |
0.7MPa |
Rated Current: |
82A |
Paint: |
White, Blue |
Main Power Voltage: |
3phase/220-480V/50Hz |
Heating Elements: |
Incoloy800, SUS316L |
Port Of Loading: |
Shanghai, China |
Lead Time: |
5days/Set |
Function: |
Steam Boilers |
Fuel: |
Electric Heating |
Installation: |
Packaged Boiler |
Media: |
Steam |
Drum Placement: |
Vertical Boiler |
Pressure: |
Low Pressure |
Manufacturing Level: |
B |
Usage: |
Industrial |
Structure: |
Tubular |
Water Circulation: |
Boiling Boiler |
Burning Style: |
None |
