Intelligent Controls 216kw Electric Steam Generator
| Price: |
US $ 8800-9180/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,D/P |
Intelligent Controls 216KW Electric Steam Generator1)Steam Capacity: 300Kg/h
2)Input Power: 216KW
3)Working Pressure: 0.8MPa
4)Main Power Source: 3P/380V/50Hz, 5-Wire
I. Technical Parameters:| Model | LDR0.3-0.8 |
| Item | Unit |
| Rated Steam Capacity | kg/h | 300 |
| Rated Working Pressure | Bar | 8 (Made to order) |
| Saturated Steam Temperature | °C | 175 |
| Input Power | KW | 216 |
| Rated Current | A | 328 |
| Main Power Source | V/Hz | 380/50 (Made to order) |
| Water Inlet | DN | 32 |
| Steam Outlet | DN | 32 |
| Blowdown Valve | DN | 25 |
| Safety Valve | DN | 32 |
| Overall Dimension(L×W×H) | mm | 1320×1040×1920 |
| Net Weight | kg | 780 |
II. Main Features:
1. Electric steam generator is high efficient, quiet, and safe for your process needs.
2. Vertical design requires minimal floor space.
3. The heating elements are easily accessible-permit quick removal for service or inspection.
4. No NOX(Nitrogen oxides) emission.Electric boilers have no wasted fuel going out the stack as electric boilers are environmentally friendly.
5. Completely wired control box located in front of the boiler.
6. All electrical components have demonstrated signs CE and equipped with world famous brands (SCHNEIDER, OMRON, and LG) to ensure product safety and service life.
7. 98% thermal efficient because the heating elements (CE tested) are totally immersed in water.
8. Power switch function to allow different steam using requirement.
9. Heating elements start one by one, reducing the electric loading.
IDEAL FOR CLOTHES PRESSING, LAUNDRY, HOSPITAL, FOOD PROCESSING AND STEAM ROOM APPLICATIONS etc...

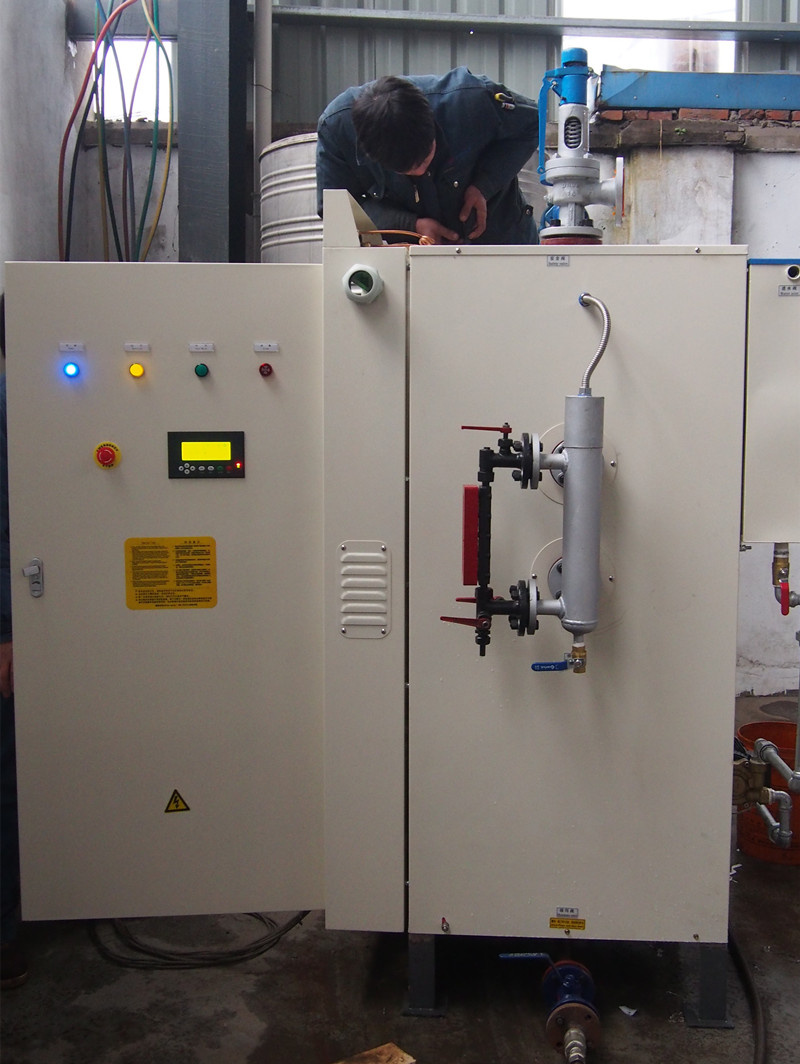

III. Details of 216KW Electric Steam Generator:
1.1 Double Pressure Systems(Pressuge gauge + Pressure controller)
1.2 Imported Brand of Electrical Components(Main Schneider, Omron, LG)
1.3 Control System: Intelligent LCD display

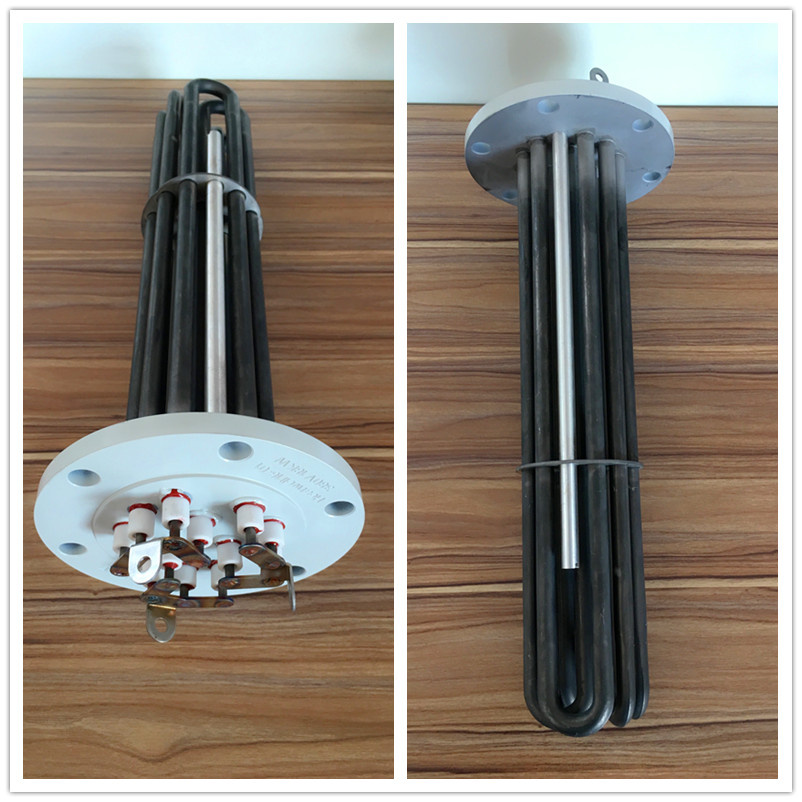

2) High Quality Heating Element
2.1 Material: Inco 800
2.2 Watt density: 14.96W/cm2
2.3 Guarantee: 3 years without faults (12-hour operation)
IV. Why Choose US!
We are a professional electric steam generator manufacturer and exporter.
Very sincerely looking for long-term win-win business here.
Major exports include electric boiler, electric steam boiler, oil(gas) steam boiler, oil(gas) hot water boiler, and oil(gas)thermal oil boiler, etc.
We warmly welcome you to enquiry us, and also appreciate any of your comments!
| Prod Model: |
LDR0.3-0.8 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
Intelligent Control 216kw Electric Steam Generator |
| Steam Capacity: |
300kg/H |
| Boiler Output: |
660 Lbs |
| Heating Elements: |
Titanium Alloy |
| Rated Working Pressure: |
Avaialable 0.8MPa |
| Saturated Steam Temp.: |
175 °c |
| Thermal Efficiency: |
98% |
| Boiler Horse Power: |
19.2bhp |
| Lead Time: |
15 Days/Set |
| OEM: |
Yes |
| Function: |
Steam Boilers |
| Fuel: |
Electric Heating |
| Installation: |
Packaged Boiler |
| Media: |
Steam |
| Drum Placement: |
Vertical Boiler |
| Pressure: |
Low Pressure |
| Manufacturing Level: |
B |
| Usage: |
Industrial |
| Structure: |
Tubular |
| Water Circulation: |
Boiling Boiler |
| Burning Style: |
Heating Element |
