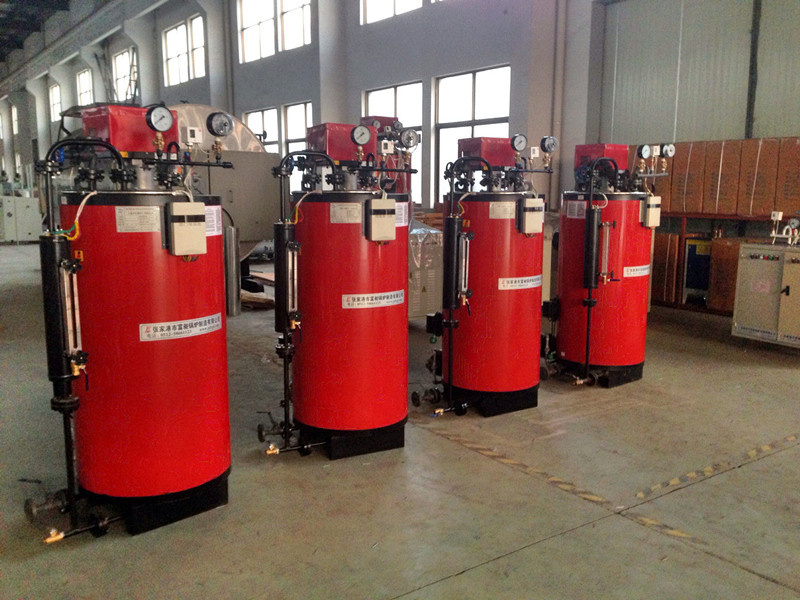

Small Capacity Gas Fired Steam Generator
| Price: |
US $ 2890-2990/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,D/P |
Small Capacity Gas Fired Steam Generator
1)Steam Capacity: 50-300Kg/h
2)Boiler Horse Power: 3.2-19.2BHP
3)W. P: 7-10bar
4)Running Fuel: NG, LPG
I. Details Introduction:
Future Boiler Manufacture Co., Ltd offers a wide range of innovative, highly efficient small diesel/gas steam boilers(50-300Kg/h). Our steam boilers provide a safe, reliable and rapid method of steam generation for the industrial user.
II. Advantages:
1. Compact Design
Vertical top fired design ensures minimum floor space required.
2. Easy of Operation
LSS Series of steam boilers are designed for fully automatic operation and have minimal maintenance requirements.
3. Highly Efficient Operation
Experts from Chinese Natonal Industrial Boiler Research Institute made a rigorous testing of the boiler, the thermal efficiency reached to 90%.
4. Safety Features
The LSS steam boilers are fitted with safety valves in excess of the requirements of the standards covering the boiler design.
5. Quick Steam Generation Time
Future boilers generate steam at the prescribed pressure in 10-15 minutes after starting the operation. Quick steam generation allows users to set work at any time.
III. Technical Parameters: | Model | LSS0.05-0.7-Y.Q | LSS0.1-0.7-Y.Q | LSS0.15-0.7-Y.Q | LSS0.2-0.7-Y.Q | LSS0.3-0.7-Y.Q |
| Item Name | Unit |
| Rated Steam Capacity | Kg/h | 50 | 100 | 150 | 200 | 300 |
| Boiler Horse Power | BHP | 3.2 | 6.4 | .9.6 | 12.8 | 18.2 |
| Rated Working Pressure | MPa | 0.7 |
| Saturated Steam Temp. | °C | 171 |
| Fuel Consumption | Light Diesel | Kg/h | 3.4 | 6.7 | 9.9 | 13.5 | 20.3 |
| Natural Gas | Nm3/h | 3.7 | 7.3 | 11.6 | 14.7 | 22.1 |
| LPG | Nm3/h | 1.6 | 3.3 | 4.9 | 6.7 | 10.1 |
| Water Inlet Dia. | DN | 15 | 15 | 15 | 15 | 25 |
| Steam Outlet Dia. | DN | 15 | 15 | 25 | 40 | 40 |
| Safety Valve Dia. | DN | 20 | 20 | 25 | 40 | 40 |
| Blowdown Valve Dia. | DN | 20 | 20 | 25 | 25 | 32 |
| Overall Dimension | mm | Φ580×1400 | Φ730x1810 | Φ770×2000 | Φ770×2000 | Φ940×2630 |
| Net Weight | kg | 230 | 320 | 480 | 660 | 780 |
| Prod Model: |
LSS 50-300kg/h |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe |
| Gas Fired Steam Generator: |
Small Capacity Gas Fired Steam Generator |
| Steam Capacity: |
50-300kg/H |
| Rated Working Pressure: |
0.7MPa (101psi) |
| Main Power Voltage: |
220-380V |
| Lead Time: |
5-20days/Set |
| Function: |
Steam Boilers |
| Fuel: |
Gas-Fired |
| Pressure: |
Low Pressure |
| Structure: |
Water Tube |
| Drum Placement: |
Vertical Boiler |
| Media: |
Steam |
| Installation: |
Packaged Boiler |
| Water Circulation: |
Mixed Circulation |
| Manufacturing Level: |
B |
| Usage: |
Milk, Drinking,etc... |
| Burning Style: |
Interal Combustion |
