| Price: | US $ 26000-26800/Set |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T,D/P |
We are a professionl boiler manufacturer and exporter. Very sincerely looking for long-term win-win business here.
Major exports include oil(gas) steam boiler, electric steam boiler, oil(gas) hot water boiler, oil(gas)thermal oil boiler and marine boilers, etc.
We warmly welcome you to enquiry us, and also appreciate any of your comments!
| Item/Model | LSS0.5-0.7 -Y/Q | LSS0.8-1.0 -Y/Q | LSS1-1.0 -Y/Q | LSS1.5-1.0 -Y/Q | LSS2-1.0 -Y/Q | LSS3-1.25 -Y/Q | LSS4-1.25 -Y/Q | Unit | ||
| Rated evaporation capacity | 0.5 | 0.8 | 1.0 | 1.5 | 2.0 | 3.0 | 4.0 | t/h | ||
| Rated steam pressure | 0.7 / 7 | 1.0 / 10 | 1.25 / 12.5 | Mpa / Bar | ||||||
| Rated steam temperature | 170 | 184 | 193 | °C | ||||||
| Rated water supply temperature | 25 | °C | ||||||||
| Thermal efficiency | ≥ 90 | % | ||||||||
| Rated thermal output | 372 | 568 | 743 | 1115 | 1485 | 2230 | 2977 | KW | ||
| Heat transfer area | 17.6 | 19.8 | 22 | 30.5 | 37.68 | 48.85 | 57.96 | m 2 | ||
| Pressure hydraulic test | 1.05 | 1.4 | 1.4 | 1.4 | 1.4 | 1.65 | 1.65 | MPa | ||
| Running Fuel | 0# Diesel Oil /Heavy Oil/Natural Gas/ LPG/ Town Gas | |||||||||
| Diesel Oil | 34 | 55 | 68 | 102 | 136 | 205 | 272 | Kg/h | ||
| Natural Gas | 39.7 | 63.5 | 79.4 | 119 | 158.8 | 238.2 | 317.6 | NM 3 /h | ||
| LPG | 13 | 21 | 26 | 39 | 52 | 78 | 104 | NM 3 /h | ||
| Town Gas | 91 | 146 | 182 | 273 | 364 | 546 | 728 | NM 3 /h | ||
| Burning method | Pressurized firing | |||||||||
| Adjusting method | Two-stage burning control | Three-stage burning control | ||||||||
| Air supply pressure | Natural gas | ≥ 5000 | Pa | |||||||
| LPG | ≥ 5000 | |||||||||
| Town Gas | ≥ 6000 | |||||||||
| Service power source | 380V/50HZ | |||||||||
| Power of fan and oil pump | 1.5 | 2.2 | 3 | 4 | 7.5 | 11 | 13 | KW | ||
| Power of feed pump | 1.5 | 2.2 | 3 | 5.5 | ||||||
| Volume of water supply tank | According to the user' s requirement | |||||||||
| Boiler diameter x height | 1240x2930 | 1480x3030 | 1660x3110 | 1660x3320 | 1760x3570 | 1900x3925 | 2000x4200 | mm | ||
| Dimension of external interface | Steam outlet | PN | 1.6 | |||||||
| DN | 40 | 50 | 50 | 65 | 80 | 100 | mm | |||
| Water inlet | PN | 1.6 | ||||||||
| DN | 25 | 32 | 32 | 40 | 50 | mm | ||||
| Drainage | PN | 1.6 | ||||||||
| DN | 32 | 40 | 50 | 65 | mm | |||||
| Safety valve | PN | 1.6 | ||||||||
| DN | 40 | 50 | 2 x 50 | mm | ||||||
| Chimney interface | 320 | 360 | 360 | 400 | 450 | 510 | 590 | mm | ||
| Boiler weight | 2000 | 3080 | 4120 | 4500 | 5250 | 7850 | 9510 | Kg | ||
| Prod Model: | LSS0.8-1.0-Q |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe |

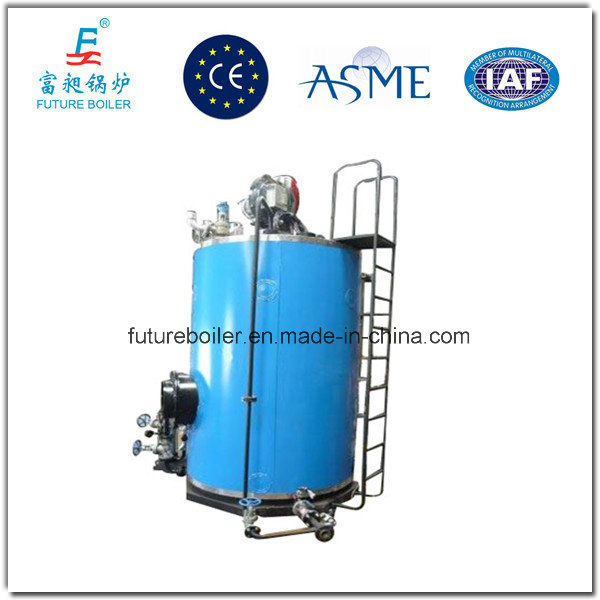

| Product Name: | CE Certified 800kg/H Gas Steam Generator |
| Boiler Horse Power: | 51.2bhp |
| Available Fuel: | Natural Gas, LPG, Town Gas |

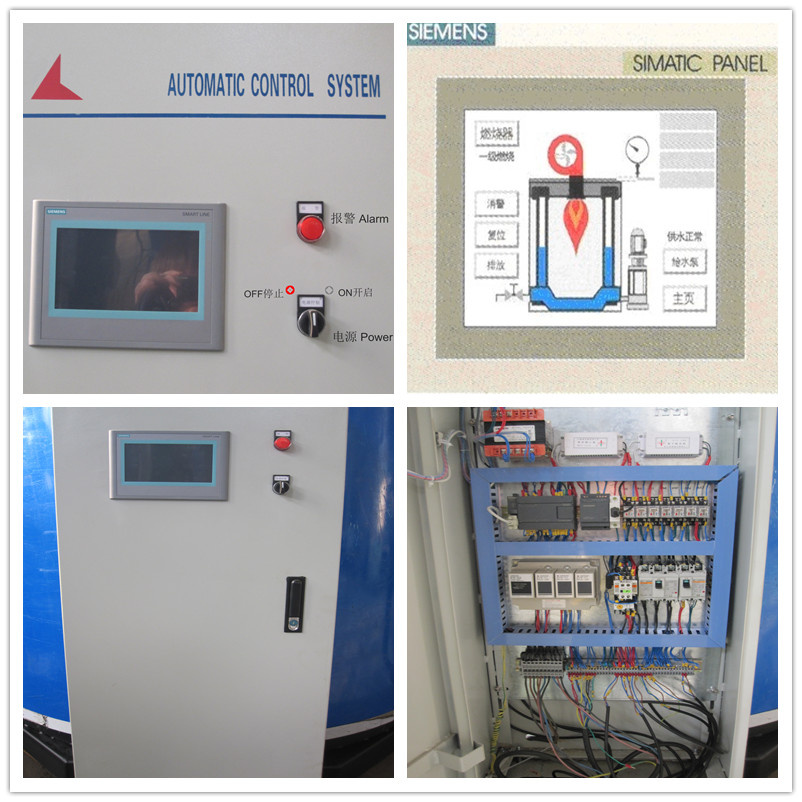

| Electric Control System: | PLC Touch Screen, Mechanical |
| Thermal Effieiency: | 92% |
| Design Pressure: | 1.0MPa |
| Saturated Steam Temp.: | 184 °c |
| Main Power Source: | 3p/220-480V/50-60Hz |
| Burner: | Weishaupt, Baltur, Riello |
| Lead Time: | 35 Days/Set |
| Function: | Steam Boilers |
| Fuel: | Gas-Fired |
| Installation: | Packaged Boiler |
| Structure: | Water Tube |
| Media: | Steam |
| Water Circulation: | Natural Circulation |
| Drum Placement: | Vertical Boiler |
| Pressure: | Low Pressure |
| Manufacturing Level: | B |
| Burning Style: | Chamber Combustion Boiler |
| Usage: | Industrial |
