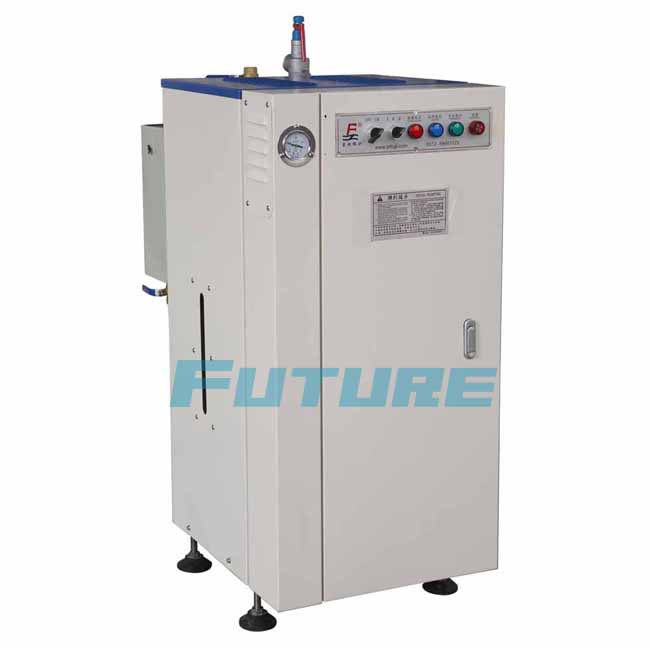

Hot Selling Electric Steam Boilers (100-500KW):
Product Features:
FUTURE offers a complete line of electric steam boilers for heating and process applications that range from 72kW to 360 kW (7.2 BHP to 36 BHP).
FUTURE Electric Steam Boilers are extremely efficient because the heating elements are totally immersed in water and the pressure vessel is fully insulated, which results in minimal radiation losses. With the carefully calculated heat to steam ratio, operating pressures are achieved quickly with maximum efficiency.
1) Electric steam boilers are efficient, quiet, and safe for your process needs.
2) Vertical design requires minimal floor space.
3) The heating elements are easily accessible-permit quick removal for service or inspection.
4) No NOX(Nitrogen oxides) emission. Electric boilers have no wasted fuel going out the stack as electric boilers are environmentally friendly.
5) Completely wired control panel box located in front of the boiler.
6) All electrical components have demonstrated signs CE to ensure product safety and service life.
7) 98% thermal efficient because the heating elements (CE tested) are totally immersed in water.
Quiet, clean. Vertical design requires minimal floor space
IDEAL FOR CLOTHES PRESSING, LAUNDRY, HOSPITAL, FOOD PROCESSING AND STEAM ROOM APPLICATIONS etc...
Model | LDR0.1-0.8 | LDR0.15-0.8 | LDR0.2-0.8 | LDR0.25-0.8 | LDR0.3-0.8 | LDR0.5-0.8 |
| Item | Unit |
| Rated Steam Capacity | Kg/h | 100 | 150 | 200 | 250 | 300 | 500 |
| Rated Working Pressure | MPa (bar) | 0.8 / 8 |
| Saturated Steam Temperature | °C | 175 |
| Input Power | KW | 72 | 108 | 144 | 180 | 216 | 360 |
| Input Current | A | 113 | 169.2 | 235 | 270 | 329 | 547 |
| Voltage | V | 380 (Available for adjustment) |
| Water Inlet | DN | 15 | 25 | 25 | 25 | 25 | 25 |
| Steam Outlet | DN | 25 | 25 | 32 | 32 | 32 | 40 |
| Blowdown Valve | DN | 25 | 25 | 32 | 32 | 32 | 32 |
| Safety Valve | DN | 25 | 25 | 25 | 32 | 32 | 40 |
| Dimension | mm | 1020×1230
×1750 | 1250×1400×1870 | 1320×1510×2100 | 1380×1600×2260 |
| Weight | kg | 280 | 320 | 410 | 650 | 770 | 960 |
Zhangjiagang Future Boiler Manufacture Co., Ltd., is a National boiler manufacture license enterprise, which has the certified for the certificate of ISO9001: 2000 quality assurance system. Future Boiler specializes in Oil (Gas) Fired Steam Boiler, Electric Steam Boiler, Small Electric Steam Generator, Electric Hot Water Boiler, Oil(Gas) Fired Hot Water Boiler, Marine Boilers, Boiler Accessories & Auxiliary Machines, etc...We satisfy the requirements of different customers to a maximum extent. In the last few years, we brought products development and sales into the field of high-tech energy conservation and environmental protection.
The company enjoys a good reputation in domestic and abroad by the outstanding quality and consummation service, our products already exported to more than 50 countries and regions, including USA, Europe and other developed countries. Continues growing market needs numerous innovative product concepts.
"Chariness, Carefulness, Patience and Permanent fine quality" is our company's entrepreneurial spirit, which is embodied in our sustainable advancing pace, and in getting along with customers, partners, internal staff and competitors.
