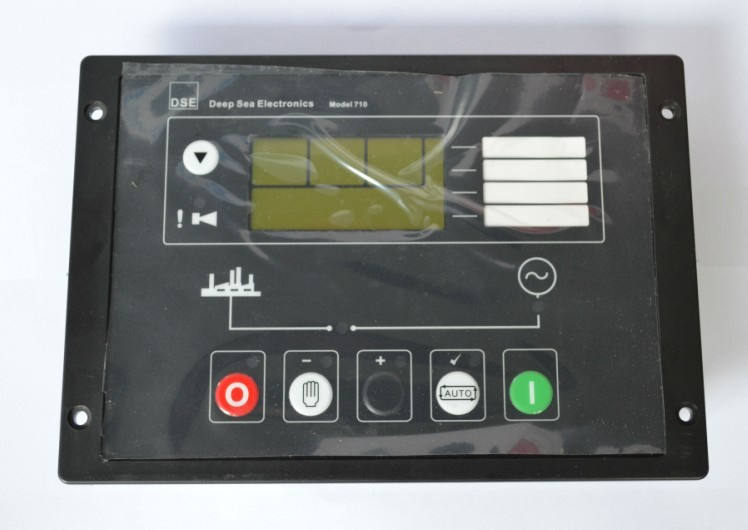

The DSE710 is an automatic start control module that offers an advanced range of engine monitoring and protection features. The module has been designed to monitor generator fregency, generator volts, generator current, engine oil pressure, engine coolant temperature, engine running hours and battery volts. The module aslo display the engine speed. When the module detects a fault condition it automatically shuts down the engine and indicate the exact fault on the modules LCD dispaly or relevant LED indicator. The module can be configured using the front panel or via the DSE810 interface and a PC. The module can aslo be controlled from a PC that is located up to 100 metres away.
Feature:
- PC/Front panel configuration
- Digital and analogue inputs
- Digital outputs
- Automatic shutdown or warning when fault conditions are detected
- Automatic/Manual/Remote start
- Engine pre-heat
- Engine monitoring and protection features
- Protected Solid State (PSS) outputs
Specification
Power Supply 8 to 35 Vdc Continuous
Cranking Dropouts: Able to survive 0 V for 50 mS, providing supply was at least 10 V
Before dropout and supply recovers to 5V. This is achieved without the need for internal batteries.
Max Current Operating 180mA at 12V, 190mA at 24V; Standby 145mA at 12V. 150mA at 24V
Alternator Input Range 35V(L-N) to 277V(L-N) AC (+20%) 50Hz - 60Hz (min 15V AC)
Auxiliary Output: Solid state 2.4A DC at supply voltage.
Fuel/Start Output: Solid state 3.4A DC at supply voltage
Generator C. T. 5A secondary 0.5VA
Operating Temperature Range: -30 to +70° C
