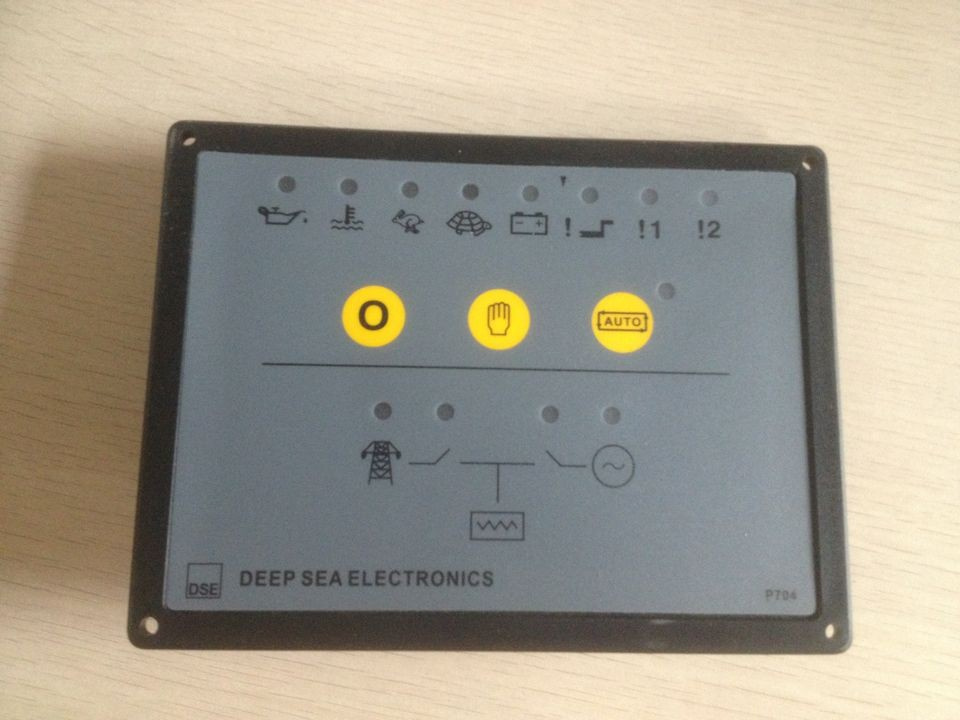

Main Features:
Automatic mains (utility) supply monitoring
Automatic shutdown when fault conditions are detected
Manual start
Engine pre-heat
Engine monitoring and protection features
Protected solid state (PSS) outputs
Front panel mounting
Front panel programming
Remote start
LED indicators
Configurable timers
Configurable outputs
DC Supply: 9 to 33 V Continuous.
Cranking Dropouts: Able to survive voltage dips during cranking. This is achieved without the need for internal batteries.
Alternator Input Range: 15 - 305 V AC RMS
Alternator Input Frequency: 50 - 60 Hz at rated engine speed.
Magnetic Input Range: 0.5 V to +/- 80 V
Magnetic Input Frequency: 2300Hz to 6000 Hz at rated engine speed.
Start Relay Output: 16 Amp DC at supply voltage.
Run Relay Output: 16 Amp DC at supply voltage.
Alarm Output: 1 Amp DC at supply voltage.
Dimensions: 72 X 72 X 118.5 (Excluding Key-switch)
Operating Temperature Range: -30 to +70° C
Installation: Front panel mounting via suitable cut-out. Retaining clips supplied. Cable connections via locking plug and socket type connectors.
Calibration: Speed trip setting and meter calibration adjustment potentiometer are accessible from the rear of the modul
