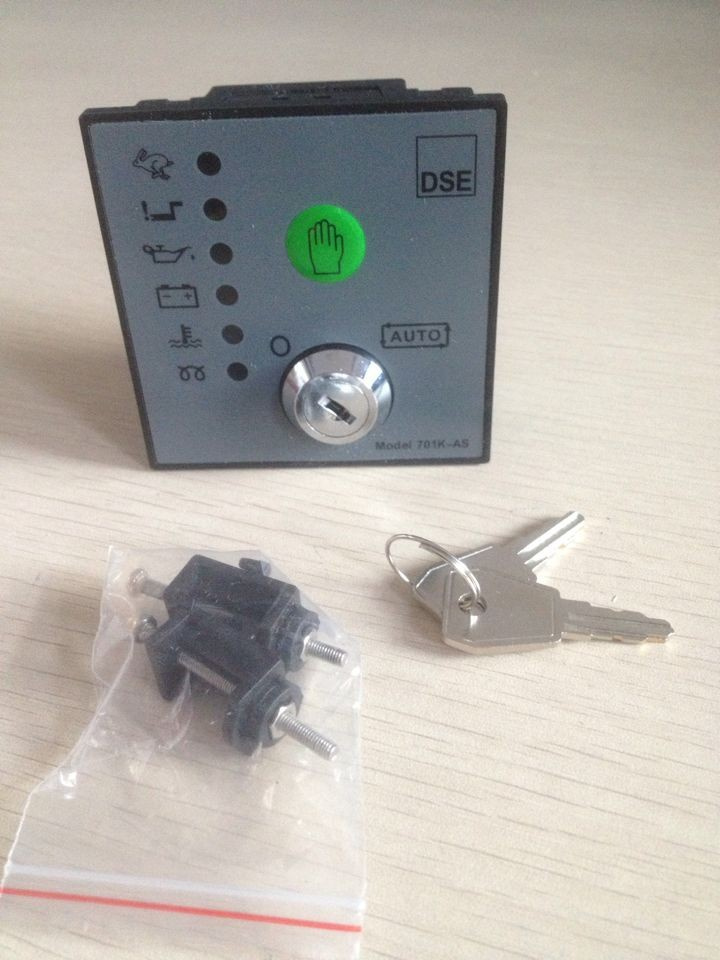

The DSE701 is available in Manual and Auto Start versions, offering an excellent range of engine monitoring and protection features.
The module has been designed to monitor low oil pressure, high engine temperature, over speed and a user defined auxiliary input.
It also has the capability to monitor battery charging by utilising the WL terminal on the charge alternator. When themodule detects a fault condition it automatically shuts down the engine.
The DSE701 modules include a remote start signal input. This input allows the module to be started from a pre-defined remote location.
FEATURES
Manual start
Engine pre-heat
Engine monitoring and protection features
Protected solid state (PSS) outputs
Front panel mounting
Tamper proof engine hours counter
Remote start
LED indicators
BENEFITS
Hours counter provides accurate information for monitoring maintenance and warranty periods;
Multiple engine parameters are monitored simultaneously
OPERATION
MANUALMODE
The module is started using the on-board key/buttons
The user turns the key to the position
The engine pre-heat button is then pressed for the required time
The start button is then pressed to start the engine
To stop the engine the key needs
AUTOMATICMODE
The key needs to be permanently left in the position
The module is powered up by the remote start signal
The pre-heat function is automatically carried out and then the engine is started
To stop the engine the remote switch is turned to the off position
OVERSPEED PROTECTION
The engine over speed trip setting can be calibrated at the rear of the module for 50Hz or 60Hz nominal operation (57Hz or 68Hz trip respectively).
During engine cranking and for the first 10 seconds after the engine starts running, all alarm conditions are suspended (overspeed is enabled) to allow the engine to reach its optimum running speed.
