Electric Steam Generators from China Supplier:
I. Product Introduction:

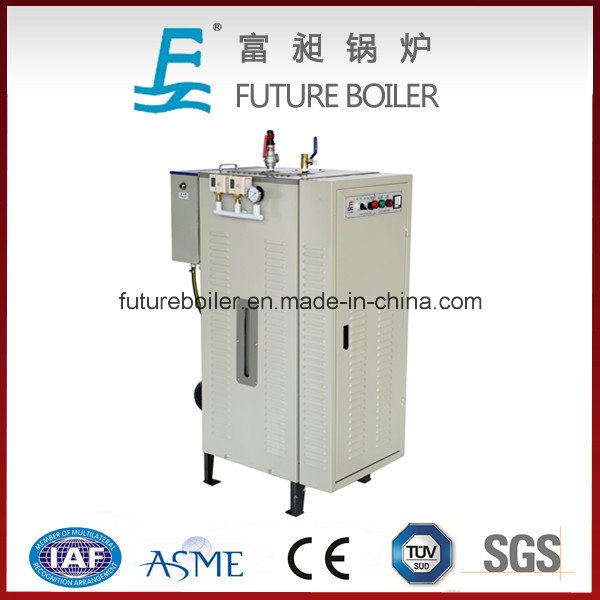

"FUTURE" electric steam generator is run by power energy, no noise, no pollution. Using high quality heating elements, with a lower surface heat load and higher thermal efficiency. This product adopts cabinet design style, elegant appearance, compact internal structure and it's ideal for saving space.
How to use? (After finish connecting piping)
A: Press "ON" button on control panel.
B: Check pressure gauge, when up to 0.4MPa(availble for adjustment), opening steam valve, and use the steam.
Safety assurance:
A: Pressure: By pressure controller when steam pressure reaches to the setting pressure, electric steam generator will shut off automatically.
B: With high water level, low level, super high level alarm protections.
Advantage:
Safer Running
Electric steam generator is flameless and safer. This eliminates the risk of flareback, firebox explosions,
And smoke damage.
Application:
In Building heat, chemical processing, health care, laundry, paper processing, drinking, textile & dying, etc...
II. Technical Parameters:
|
Model |
LDR0.042-0.7 |
LDR0.05-0.7 |
LDR0.065-0.7 |
LDR0.075-0.7 |
LDR0.085-0.7 |
|
Item |
Unit |
|
Rated Steam Capacity |
Kg/h |
42 |
50 |
65 |
75 |
85 |
|
Rated Working Pressure |
Bar / Psig |
7 / 101 (Made to order) |
|
Saturated Steam Temperature |
°C |
171 |
|
Input Power |
KW |
30 |
36 |
48 |
54 |
60 |
|
Input Current |
A |
45 |
54 |
72 |
81 |
90 |
|
Power Source |
V/Hz |
380,50 (Made to order) |
|
Water Inlet |
DN |
15 |
15 |
20 |
20 |
25 |
|
Steam Outlet |
DN |
15 |
20 |
25 |
20 |
25 |
|
Blowdown Valve |
DN |
15 |
15 |
25 |
20 |
25 |
|
Safety Valve |
DN |
15 |
15 |
25 |
20 |
25 |
|
Overall Dimension(L*W*H) |
mm |
920×700×1200 |
960×750×1400 |
990×820×1590 |
|
Weight |
kg |
132 |
160 |
200 |
220 |
260 |
Zhangjiagang Future Boiler Manufacture Co., Ltd., is a National boiler manufacture license enterprise, which has the certified for the certificate of ISO9001: 2000 quality assurance system. Future Boiler specializes in Oil (Gas) Fired Steam Boiler, Electric Steam Boiler, Small Electric Steam Generator, Electric Hot Water Boiler, Oil(Gas) Fired Hot Water Boiler, Marine Boilers, Boiler Accessories & Auxiliary Machines, etc...We satisfy the requirements of different customers to a maximum extent. In the last few years, we brought products development and sales into the field of high-tech energy conservation and environmental protection.
The company enjoys a good reputation in domestic and abroad by the outstanding quality and consummation service, our products already exported to more than 50 countries and regions, including USA, Europe and other developed countries. Continues growing market needs numerous innovative product concepts.
"Chariness, Carefulness, Patience and Permanent fine quality" is our company's entrepreneurial spirit, which is embodied in our sustainable advancing pace, and in getting along with customers, partners, internal staff and competitors.
