Electric Steam Generators for Wholesale
| Price: |
US $ 1200-1280/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,D/P |
Electric Steam Generators for Wholesale
1)Steam Capacity: 4-150Kg/h
2)Input Power: 3-108KW
3)Working Pressure: 4-10bar
4)Power Voltage: 220V/380V/400V/415V/440/480V/600V
I. Product Introduction:
Mini electric steam generator is run by power energy, no noise, no pollution. Using high quality heating elements, with a lower surface heat load and higher thermal efficiency. This product adopts cabinet design style, elegant appearance, compact internal structure and it's ideal for saving space.
1. Small Input Power(3-108KW) with higher output(4-150Kg/h).
2. Use of Nichrome Heating Element, it ensures long-term effective operation of the boiler.
3. Mini Electric Steam Generator has a compact structure with fast heating speed, reaching to use pressure by several minutes.
4. Unique built-in steam-water separator solved a problem of steam with water which brought by similar products.
II. Technical Data:| Model | LDR0.004-0.4 | LDR0.009-0.7 | LDR0.013-0.7 | LDR0.017-0.7 | LDR0.025-0.7 | LDR0.033-0.7 | LDR0.042-0.7 |
| Item | Unit |
| Rated steam capacity | Kg/h | 4 | 9 | 13 | 17 | 25 | 33 | 42 |
| Rated working pressure | MPa | 0.4 (0.7) | 0.7 (0.8, 1.0) |
| Saturated steam temp. | °C | 150 (171) | 171 (175, 184) |
| Input Power | KW | 3 | 6 | 9 | 12 | 18 | 24 | 30 |
| Input current | A | 6 | 9 | 14 | 18 | 27 | 36 | 45 |
| Electric Voltage | V | 220 | 220/380 | 380 (Made to order) |
| Water inlet dia. | DN | 15 | 15 | 15 | 15 | 15 | 15 | 15 |
| Steam outlet dia. | DN | 15 | 15 | 15 | 15 | 15 | 15 | 15 |
| Blowdown valve dia. | DN | 15 | 15 | 15 | 15 | 15 | 15 | 15 |
| Safety valve dia. | DN | 15 | 15 | 15 | 15 | 15 | 15 | 15 |
Overall dimension
(L×W×H) | mm | 480×520×850 | 500×550×920 | 500×550×920 | 500×550×920 | 520×600×1000 | 520×600×1000 | 550×730×1130 |
| Net weight | kg | 50 | 75 | 79 | 85 | 92 | 118 | 136 |
| Model | LDR0.05-0.7 | LDR0.065-0.7 | LDR0.074-0.7 | LDR0.082-0.7 | LDR0.1-0.7 | LDR0.13-0.7 | LDR0.15-0.7 |
| Item | Unit |
| Rated steam capacity | Kg/h | 50 | 65 | 74 | 82 | 100 | 130 | 150 |
| Rated working pressure | MPa | 0.7 (0.8, 1.0) |
| Saturated steam temp. | °C | 171 (175, 184) |
| Input power | KW | 36 | 48 | 54 | 60 | 72 | 96 | 108 |
| Input current | A | 54 | 72 | 81 | 90 | 110 | 145 | 163 |
| Electric voltage | V | 380 (Made to order) |
| Water inlet dia. | DN | 15 | 15 | 15 | 15 | 15 | 15 | 20 |
| Steam outlet dia. | DN | 15 | 15 | 15 | 20 | 20 | 20 | 25 |
| Blowdown valve dia. | DN | 15 | 15 | 15 | 20 | 20 | 20 | 25 |
| Safety valve dia. | DN | 15 | 15 | 15 | 20 | 20 | 20 | 25 |
Overall dimension
(L×W×H) | mm | 550×730×1130 | 550×730×1190 | 550×730×1190 | 560×770×1250 | 560×770×1290 | 630×810×1450 | 630×810×1450 |
| Net weight | kg | 136 | 149 | 149 | 190 | 210 | 236 | 270 |

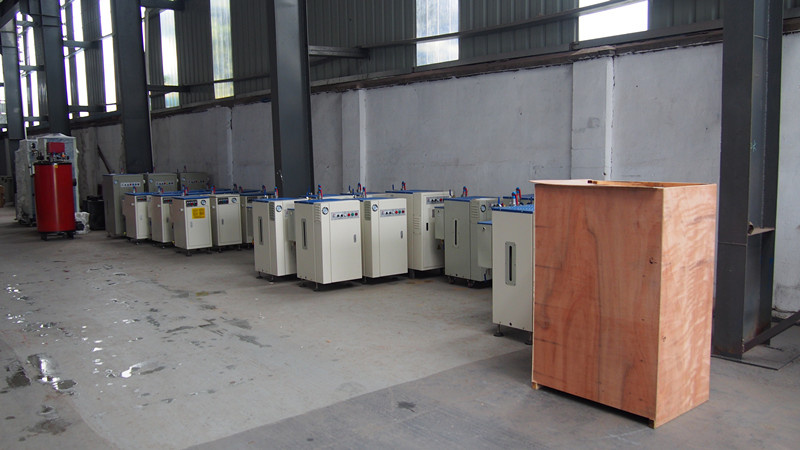

1) Ready for shipment:

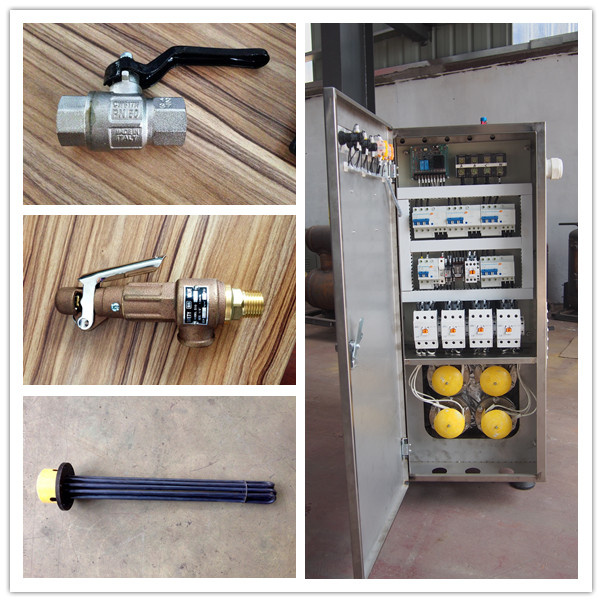

2. High Quality Parts & Components(Imported):
| Prod Model: |
LDR 4-150kg/h |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
Electric Steam Generators for Wholesale |
| Steam Output: |
4-150kg/H |
| Working Pressure: |
0.4-1.0MPa |
| Main Power Source: |
110-600V |
| Thermal Efficiency: |
98% |
| Saturated Steam Temp.: |
150-174 °c |
| Heating Elements: |
Titanium Alloy, #316L Stainless Steel |
| Port Of Loading: |
Shanghai-China |
| Condition: |
New |
| Lead Time: |
5-15days/Set |
| Function: |
Steam Boilers |
| Fuel: |
Electric Heating |
| Installation: |
Packaged Boiler |
| Media: |
Steam |
| Drum Placement: |
Vertical Boiler |
| Pressure: |
Low Pressure |
| Manufacturing Level: |
B |
| Usage: |
Industrial |
| Structure: |
Tubular |
| Water Circulation: |
Boiling Boiler |
| Burning Style: |
Electric Heating |
Zhangjiagang Future Boiler Manufacture Co., Ltd., is a National boiler manufacture license enterprise, which has the certified for the certificate of ISO9001: 2000 quality assurance system. Future Boiler specializes in Oil (Gas) Fired Steam Boiler, Electric Steam Boiler, Small Electric Steam Generator, Electric Hot Water Boiler, Oil(Gas) Fired Hot Water Boiler, Marine Boilers, Boiler Accessories & Auxiliary Machines, etc...We satisfy the requirements of different customers to a maximum extent. In the last few years, we brought products development and sales into the field of high-tech energy conservation and environmental protection.
The company enjoys a good reputation in domestic and abroad by the outstanding quality and consummation service, our products already exported to more than 50 countries and regions, including USA, Europe and other developed countries. Continues growing market needs numerous innovative product concepts.
"Chariness, Carefulness, Patience and Permanent fine quality" is our company's entrepreneurial spirit, which is embodied in our sustainable advancing pace, and in getting along with customers, partners, internal staff and competitors.
