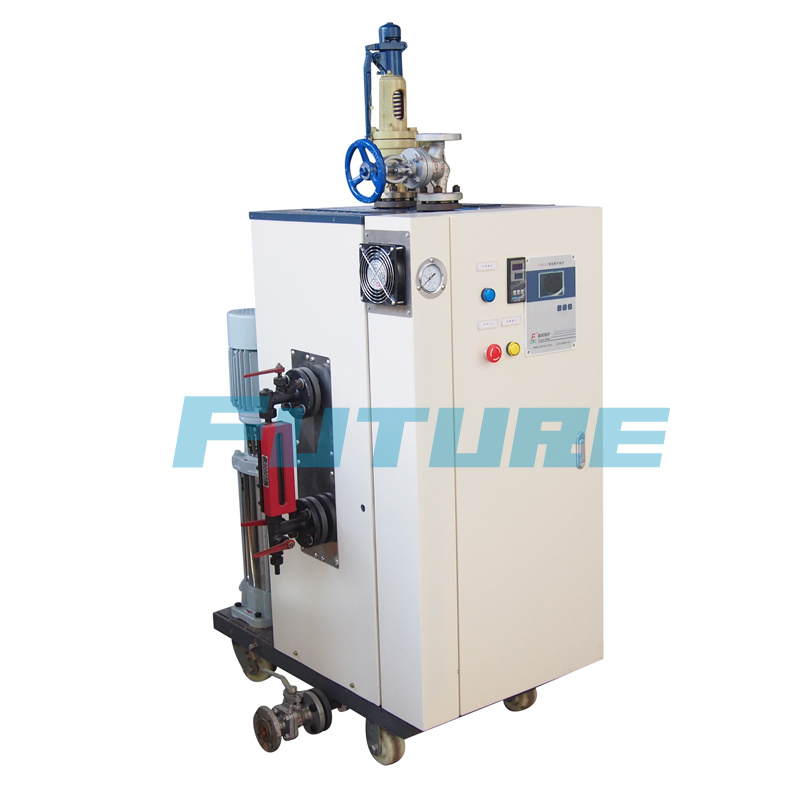

Electric Steam Generator Price (3-60KW)

Name: Electric Steam Generator Price (3-60KW)
Brand: aboutgenerator.com
SKU: 620469584
Availability: InStock
Rating: 4.8 (21 reviews)

Price:	US $ 1100-1180/Set
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Set
Pay Type:	L/C,T/T,D/P

Contact Supplier

Zhangjiagang Future Boiler Manufacture Co., Ltd.

Showroom Product Company Profile

Electric Steam Generator Price (3-60kW)

I. Product Description:
"FUTURE" electric steam generator is run by power energy, no noise, no pollution. Using high quality heating elements, with a lower surface heat load and higher thermal efficiency. This product adopts cabinet design style, elegant appearance, compact internal structure and it's ideal for saving space.

1. Small Input Power(3-60KW) with higher output(4-85Kg/h).
2. Use of Nichrome Heating Element, it ensures long-term effective operation of the boiler.
3. Small output electric steam boiler has a compact structure with fast heating speed, reaching to use pressure by several minutes.
4. Unique built-in steam-water separator solved a problem of steam with water which brought by similar products.

Model		LDR0.004 -0.7		LDR0.009 -0.7	LDR0.013 -0.7	LDR0.017 -0.7	LDR0.025 -0.7	LDR0.035 -0.7	LDR0.05 -0.7	LDR0.065 -0.7	LDR0.085-0.7
Item	Unit	LDR0.004 -0.7		LDR0.009 -0.7	LDR0.013 -0.7	LDR0.017 -0.7	LDR0.025 -0.7	LDR0.035 -0.7	LDR0.05 -0.7	LDR0.065 -0.7	LDR0.085-0.7
Rated Steam Capacity	Kg/h	4		9	13	17	25	35	50	65	85
Rated Working Pressure	MPa	0.7
Saturated Steam Temperature	° C	171
Input Power	KW	3		6	9	12	18	24	36	48	60
Input Current	A	6		9	14	18	27	41	55	73.8	92
Voltage	V	220 / 380 (Available for adjustment )
Water Inlet	DN	15		15	15	15	15	15	15	15	15
Steam Outlet	DN	15		15	15	15	15	15	15	15	25
Blowdown Valve	DN	15		15	15	15	15	15	15	15	25
Safety Valve	DN	15		15	15	15	15	15	15	15	25
Dimension	mm	680× 520× 850	750× 550× 920				850× 600× 1000		920× 700× 1200		960× 730× 1390
Weight	kg	50		75	79	85	92	118	132	160	210

Prod Model:	Mini LDR
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe
Electric Steam Generator Price:	36-60kw Electric Steam Generator Price
Steam Capacity:	50-85kg/H
Electric Control Mode:	LCD, Mechanical
Function:	Steam Boilers
Fuel:	Electric Heating
Installation:	Packaged Boiler
Media:	Steam
Water Circulation:	Forced Circulation
Drum Placement:	Vertical Boiler
Pressure:	Low Pressure
Manufacturing Level:	B
Structure:	Tubuless
Burning Style:	None
Usage:	Food, Drinking, Beer, etc...

Zhangjiagang Future Boiler Manufacture Co., Ltd., is a National boiler manufacture license enterprise, which has the certified for the certificate of ISO9001: 2000 quality assurance system. Future Boiler specializes in Oil (Gas) Fired Steam Boiler, Electric Steam Boiler, Small Electric Steam Generator, Electric Hot Water Boiler, Oil(Gas) Fired Hot Water Boiler, Marine Boilers, Boiler Accessories & Auxiliary Machines, etc...We satisfy the requirements of different customers to a maximum extent. In the last few years, we brought products development and sales into the field of high-tech energy conservation and environmental protection.

The company enjoys a good reputation in domestic and abroad by the outstanding quality and consummation service, our products already exported to more than 50 countries and regions, including USA, Europe and other developed countries. Continues growing market needs numerous innovative product concepts.

"Chariness, Carefulness, Patience and Permanent fine quality" is our company's entrepreneurial spirit, which is embodied in our sustainable advancing pace, and in getting along with customers, partners, internal staff and competitors.
