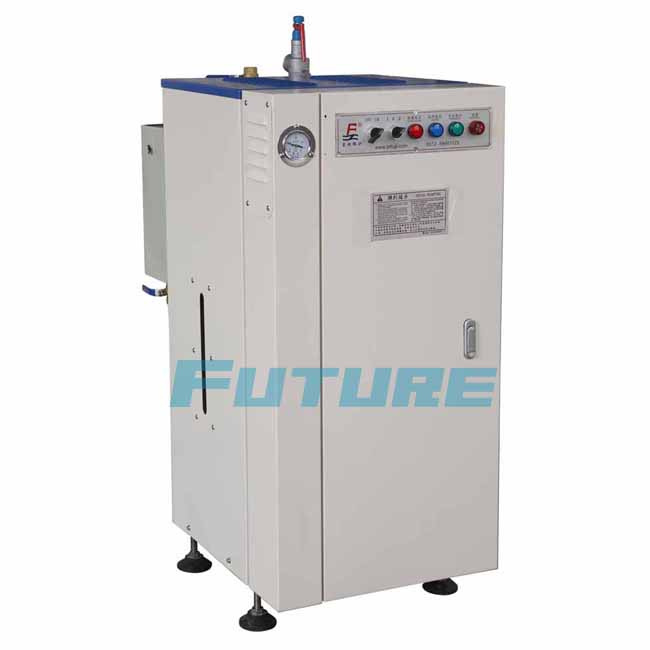

Electric Steam Generator for UHT
The electric boiler is run by power energy, no noise, no pollution. Using high quality heating elements, with a lower surface heat load and higher thermal efficiency. This product adopts cabinet design style, elegant appearance, compact internal structure and it's ideal for saving space.
Characteristics of Boiler Control System:
1. Adjustable for steam pressure.
2. Power sub-file with switching function.
3. Adopt of advanced Micro-computer controller, has the features of reliable performance, high automation and easy to operate, etc.
4. Main Electrical Components adopt Schneider Brand products.
5. By use of Nichrome Heating Element, high temperature resistance of electric wire more than 1000° C, service life is 5-10 times than traditional one, the application of magnesium rod anode technology, it ensures that that heating element difficult to form scale, any other product is incomparable.
Model | LDR0.05-0.7 | LDR0.065-0.7 | LDR0.074-0.7 | LDR0.082-0.7 | LDR0.1-0.7 | LDR0.13-0.7 | LDR0.15-0.7 |
Item | Unit |
Rated steam capacity | Kg/h | 50 | 65 | 74 | 82 | 100 | 130 | 150 |
Rated working pressure | MPa | 0.7 (0.8, 1.0, 1.25) |
Saturated steam temperature | °C | 171 (175, 184, 194) |
Input power | KW | 36 | 48 | 54 | 60 | 72 | 96 | 108 |
Input current | A | 54 | 72 | 81 | 90 | 110 | 145 | 163 |
Electric voltage | V | 380 ( / Made to order) |
Water inlet diameter | DN | 15 | 15 | 15 | 15 | 15 | 15 | 20 |
Steam outlet diameter | DN | 15 | 15 | 15 | 20 | 20 | 20 | 25 |
Blowdown valve diameter | DN | 15 | 15 | 15 | 20 | 20 | 20 | 25 |
Safety valve diameter | DN | 15 | 15 | 15 | 20 | 20 | 20 | 25 |
Overall dimension (L×W×H) | mm | 550×730×1130 | 550×730×1190 | 550×730×1190 | 560×770×1250 | 560×770×1290 | 630×810×1450 | 630×810×1450 |
Net weight | kg | 136 | 149 | 149 | 190 | 210 | 236 | 270 |
