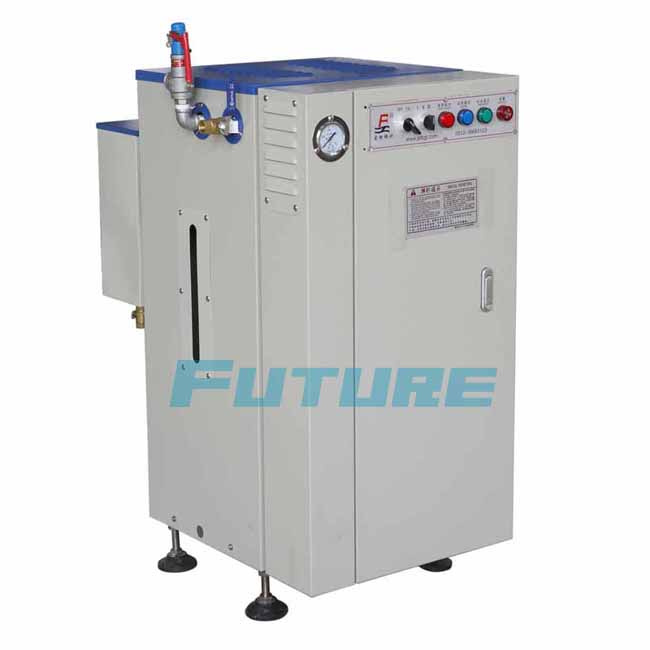

Steam Generator (Boiler) Applictions:
Home-use: For heating water, food(fruit, sea foods, drink. ) processing, high-temperature sterilization, pharmaceutical, etc.
Industry-use: Provide steam for steam iron and laundry, reaction kettle, jacket kettle, concrete curing, etc.
Steam Boiler Features:
1. Work with electric and water.
Clean easy, convenient and eco-friendly
2. Small size and light weight.
Save space and easy moving, no need to prepare a "Boiler Room"
3. Easy operated
Qucik assembly, Automatic one, connect the water inlet with faucet
Our advantages:
1. We have 10 years' experience and mature technic in manufacturing steam boilers
2. Our products are long tested by sharp market competition
3. Our quality and service are highly praised by thousands of customers and partners.
| Model | LDR0.004
-0.7 | LDR0.009
-0.7 | LDR0.013
-0.7 | LDR0.017
-0.7 | LDR0.025
-0.7 | LDR0.035
-0.7 | LDR0.05
-0.7 | LDR0.065
-0.7 | LDR0.08-0.7 |
| Item | Unit |
| Rated Steam Capacity | Kg/h | 4 | 9 | 13 | 17 | 25 | 35 | 50 | 65 | 80 |
| Rated Working Pressure | MPa | 0.7 |
| Saturated Steam Temperature | °C | 171 |
| Input Power | KW | 3 | 6 | 9 | 12 | 18 | 24 | 36 | 48 | 60 |
| Input Current | A | 6 | 9 | 14 | 18 | 27 | 41 | 55 | 73.8 | 92 |
| Voltage | V | 220 / 380 (Available for adjustment ) |
| Water Inlet | DN | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 |
| Steam Outlet | DN | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 25 |
| Blowdown Valve | DN | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 25 |
| Safety Valve | DN | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 25 |
| Dimension | mm | 680×520×850 | 750×550×920 | 850×600×1000 | 920×700×1200 | 960×730×1390 |
| Weight | kg | 50 | 75 | 79 | 85 | 92 | 118 | 132 | 160 | 210
|
