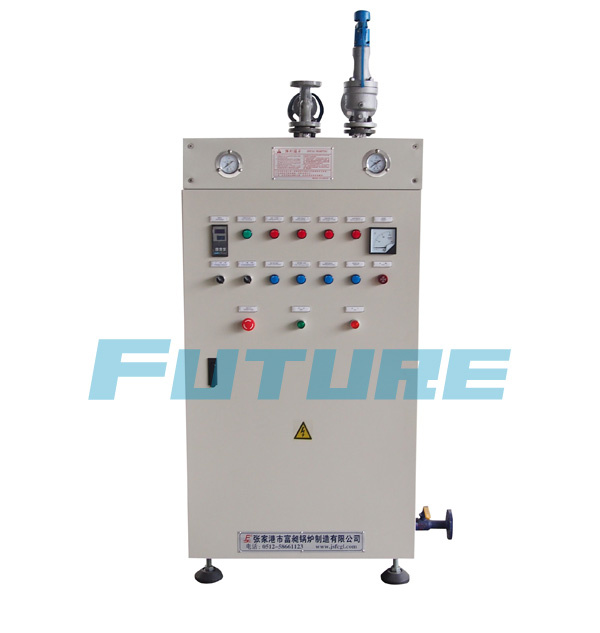

Best Selling Electric Steam Boiler for Reactor
| Price: |
US $ 14500-15200/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,D/P |
Best Selling Electric Steam Boiler for Reactor1)Steam Capacity: 500Kg/h
2)Input Power: 360KW
3)Working Pressure: 0.8MPa
4)Voltage: 220-600V
I. Main Features:
1.Electric steam boiler is high efficient, quiet, and safe for your process needs.
2.Vertical design requires minimal floor space.
3.The heating elements are easily accessible-permit quick removal for service or inspection.
4.No NOX(Nitrogen oxides) emission.Electric boilers have no wasted fuel going out the stack as electric boilers are environmentally friendly.
5.Completely wired control box located in front of the boiler.
6.All electrical components have demonstrated signs CE and equipped with world famous brands (SCHNEIDER, SIMENS, OMRON, and LG) to ensure product safety and service life.
7.98% thermal efficient because the heating elements (CE tested) are totally immersed in water.
8.Power switch function to allow different steam using requirement.
9.Heating elements start one by one, reducing the electric loading.
IDEAL FOR CLOTHES PRESSING, LAUNDRY, HOSPITAL, FOOD PROCESSING AND STEAM ROOM APPLICATIONS etc...
II. Details:

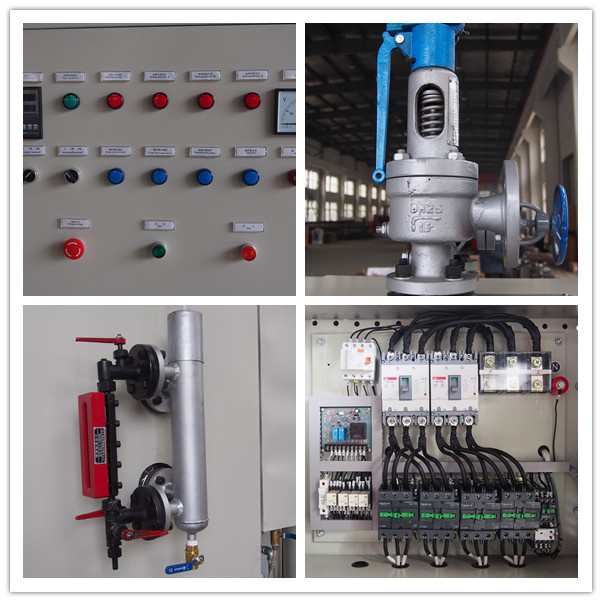

1) Parts & Components:

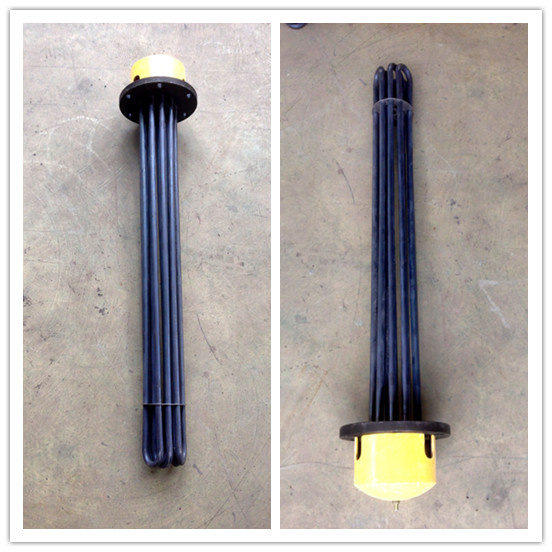

2) Titanium Alloy Heating Elements:
III. Why Choose US!
We are a professional electric boiler manufacturer and exporter.
Very sincerely looking for long-term win-win business here.
Major exports include electric steam boiler, oil(gas) steam boiler, oil(gas) hot water boiler, and oil(gas)thermal oil boiler and marine boiler, etc.
We warmly welcome you to enquiry us, and also appreciate any of your comments!IV.Technical Parameters:| Model | LDR0.1-0.8 | LDR0.15-0.8 | LDR0.2-0.8 | LDR0.25-0.8 | LDR0.3-0.8 | LDR0.4-0.8 | LDR0.5-0.8 |
| Item | Unit |
| Rated Steam Capacity | Kg/h | 100 | 150 | 200 | 250 | 300 | 400 | 500 |
| Rated Working Pressure | MPa | 0.8 (1.0, 1.25, 1.6) |
| Saturated Steam Temperature | °C | 175 (184, 194, 204) |
| Input Power | KW | 72 | 108 | 144 | 180 | 216 | 288 | 360 |
| Input Current | A | 113 | 169.2 | 235 | 270 | 329 | 432 | 547 |
| Voltage | V/Hz | 380,50 (Made to order) |
| Water Inlet | DN | 15 | 25 | 25 | 25 | 25 | 25 | 25 |
| Steam Outlet | DN | 25 | 25 | 32 | 32 | 32 | 32 | 40 |
| Blowdown Valve | DN | 25 | 25 | 32 | 32 | 32 | 32 | 32 |
| Safety Valve | DN | 25 | 25 | 25 | 32 | 32 | 32 | 40 |
| Dimension | mm | 1020×1230
×1750 | 1250×1400×1870 | 1320×1510×2100 | 1380×1600×2360 |
| Weight | Kg | 280 | 320 | 410 | 650 | 770 | 850 | 960 |
| Prod Model: |
LDR0.5-0.8 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe |
| Product Name: |
Electric Steam Boiler for Reactor |
| Steam Capacity: |
500kg/H |
| Rated Working Pressure: |
0.8MPa |
| Saturated Steam Temp.: |
175°c |
| Thermal Efficiency: |
98% |
| Heating Elements: |
Titanium Alloy |
| Lead Time: |
20days/Set |
| Function: |
Steam Boilers |
| Fuel: |
Electric Heating |
| Installation: |
Packaged Boiler |
| Media: |
Steam |
| Drum Placement: |
Vertical Boiler |
| Pressure: |
Low Pressure |
| Manufacturing Level: |
B |
| Usage: |
Industrial |
| Structure: |
Tubular |
| Water Circulation: |
Boiling Boiler |
| Burning Style: |
Heating Element |
