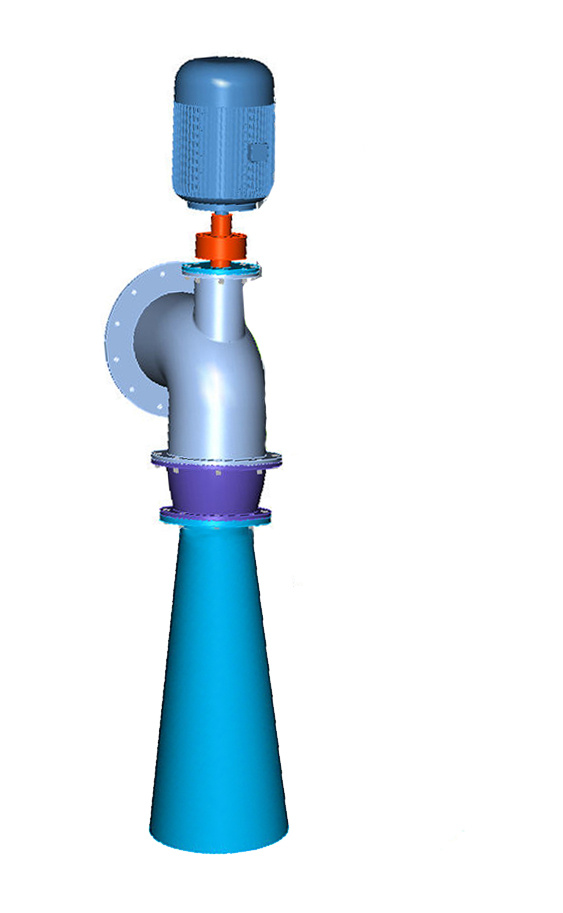

Micro Hydroelectric Generator GD-LZ-20-6KW
GD-LZ-20-6KW is a AC direct systems consist of a Tubular turbine-generator unit producing AC power which is used as needed. That is, it is fed directly to the appliances. No need of battery and inverter, GD-LZ-20-6KW offers a complete water to wire system with integral turgo turbine, generator and valve flow control. Designed to deliver ready-to-use 115V/230V VAC power, it employs a brushless, special rare-earth permanent magnet alternator and therefore has a higher efficiency than ordinary alternator. Output voltage and frequency are controlled by the electronic load controller(with ballast). As little as 140 to 156 liter per second (l/s) falling 7meter through a pipe can supply enough power to comfortably run a small household. This machine is compact, easy to install and requires little maintenance except lubricating the bearing every few months.
Water is collected upstream from the turbine and channeled in a pipe down to the turbine location. At the turbine, the water strike the turbine runner, and turn a AC single-phase brushless permanent magnet alternator. A electric load controller is built on the alternator which stabilizes the voltage to 110V or 220V to protect electrical appliances during use. Installation is very simple and explained in the manual. Once installed there are no running costs and maintenance costs are very low.
If you feel you may have a suitable site, please email specific information on your actual site. The information that is required for a preliminary assessment is:
1. The volume of water flowing in your stream, expressed as liters per second.
2. The head (height of drop) of the falling water, expressed in meters.
3. The length of the penstock (pipeline) in meters.
Water is collected upstream from the turbine and channeled in a pipe down to the turbine location. At the turbine, the water strike the turbine runner, and turn a AC single-phase brushless permanent magnet alternator. A electric load controller is built on the alternator which stabilizes the voltage to 110V or 220V to protect electrical appliances during use. Installation is very simple and explained in the manual. Once installed there are no running costs and maintenance costs are very low.
If you feel you may have a suitable site, please email specific information on your actual site. The information that is required for a preliminary assessment is:
1. The volume of water flowing in your stream, expressed as liters per second.
2. The head (height of drop) of the falling water, expressed in meters.
3. The length of the penstock (pipeline) in meters.
|
Item |
Parameters |
|
Model |
GD-LZ-20-6KW |
|
Water Head Range |
6 – 7 meter |
|
Water Flow Range |
140 – 156 liter/second |
|
Rated Power Output |
6,000W |
|
Intended voltage |
115/230V~ |
|
Rotary Speed |
1500 rpm |
|
Turbine runner type |
Tubular Turbine |
|
Runner diameter |
200 mm |
|
Number of buckets |
4 |
|
Generator |
Single phase permanent magnet alternator |
|
Power factor |
1.0 |
|
Insulation level |
B/B |
|
Protection level |
IP44 |
|
Temperature |
-25~+50C |
|
Humidity |
≤90% |
|
Safety protection |
Short circuit, over load, Islanding, Grounding fault |
|
Packing material |
Fiberboard |
|
Packing size |
165x50x81cm & 64x45x34cm |
|
Gross weight |
295 kg |
Suzhou Yueniao Machinery & Electronics Imp & Exp Co., Ltd. is one of the pioneer renewable energy business and has been in this field since 2002. We are dedicated exclusively to the business of small wind generator, mini hydroelectric generator and solar energy.
As a manufacturer with advanced technology, we are making in our own workshop the wind turbine from 300W to 20kw with CE certificates. Beside that we are dealing with business of mini hydroelectric generator from 200W up to 60KW and solar panel from 20W to 280W.
We do not claim any of its products to be the best, but we are proud to hear the owners of our products praise them. And that is what makes all the time and effort we spend on our products worthwhile.
Thank you for your support!
