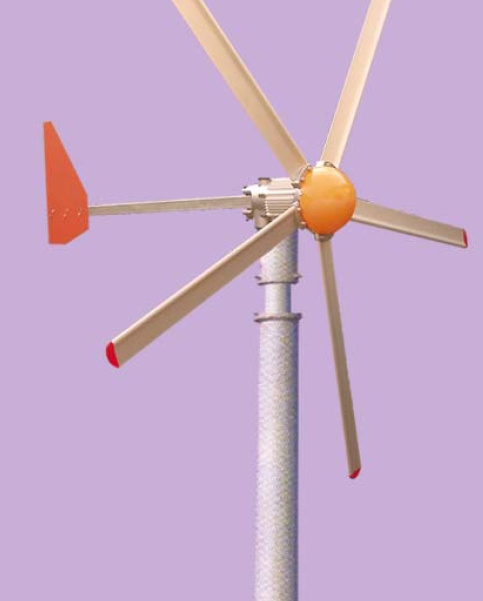

A 5 blades wind generator with beautiful shape, safe, portable and Reliable. It is especially designed to meet the demand from individual householders for a renewable energy source.
APPLICATION
The WFD500W is used to charge 24V or 36V batteries. Equipped with suitable DC to AC inverter, it is capable of supplying power for:
Refrigeration, Electric fan, Lights, Navigational equipment and
Communication equipment
Advantages of 5-blade wind turbines over 3-blade wind turbines
1) 5-blade wind turbines will greatly improve annual energy production in low wind conditions. For areas with average wind speeds of 11 MPH (5m/s). If you compare annual energy output to conventional 3-blade wind turbine, there is an increase of annual energy output of more than 60%.
2) 5-blade wind turbines will dramatically improve the reliability and safety of the wind turbine. The blade rotation speed of a 5-blade turbine is 60% of the rotational speed for a 3-blade wind turbine. 5-blade wind turbines will greatly reduce the chance of overspeed control malfunction. This will ensure operational reliability from a long term perspective.
3) The lower blade rotation speed of a 5-blade wind turbine will lower wind turbine noise and make 5-blade wind turbines more community friendly than 3-blade wind turbines.
Features:
Reliable passive self furling
Autobrake slows down the blades spin when the batteries are charged
Marine quality powder coated aluminum body, all stainless steel hardware, water tight housing
Iron Boron Neodymium magnet alternator.
Reliability: The design of the body efficiently flows excess heat into the wind reducing operating temperature
Strong aluminum alloy blades, silent when working.
Simple to install, easy to use and requires little maintenance.
Two years warranty; Operational life expected to be in excess of 15 years.
|
Model |
WFD500W at wind speed 10m/s |
|
RATED POWER |
500W |
|
MAX POWER |
600W |
|
Kilowatt Hours Per Month |
77 kWh/month /average 5.8 m/s |
|
Voltage Options |
24V, 36V& Grid Tie |
|
Start Wind Speed |
3 m/s |
|
Rated Wind Speed |
10 m/s |
|
Survival Wind Speed |
40 m/s |
|
Cut-Out Wind Speed |
12 m/s |
|
Over speed Protection |
Auto Furl |
|
TemperatureRange |
-40 to +60 Deg. C |
|
Rotor Diameter |
2.0 m |
|
Swept Area |
3.14 m 2 |
|
Rotor speed |
500 rpm |
|
Rotor Starting Torque |
0.4 Nm |
|
Blade material |
Aluminum Alloy |
|
Rotor thrust(at 20 meters/second) |
175 Newton |
|
Generator |
3 phase Neodymium permanent magnet alternator |
|
Noise |
Max 1-3 dB above background |
|
Weight of turbine |
17 kg |
Suzhou Yueniao Machinery & Electronics Imp & Exp Co., Ltd. is one of the pioneer renewable energy business and has been in this field since 2002. We are dedicated exclusively to the business of small wind generator, mini hydroelectric generator and solar energy.
As a manufacturer with advanced technology, we are making in our own workshop the wind turbine from 300W to 20kw with CE certificates. Beside that we are dealing with business of mini hydroelectric generator from 200W up to 60KW and solar panel from 20W to 280W.
We do not claim any of its products to be the best, but we are proud to hear the owners of our products praise them. And that is what makes all the time and effort we spend on our products worthwhile.
Thank you for your support!
