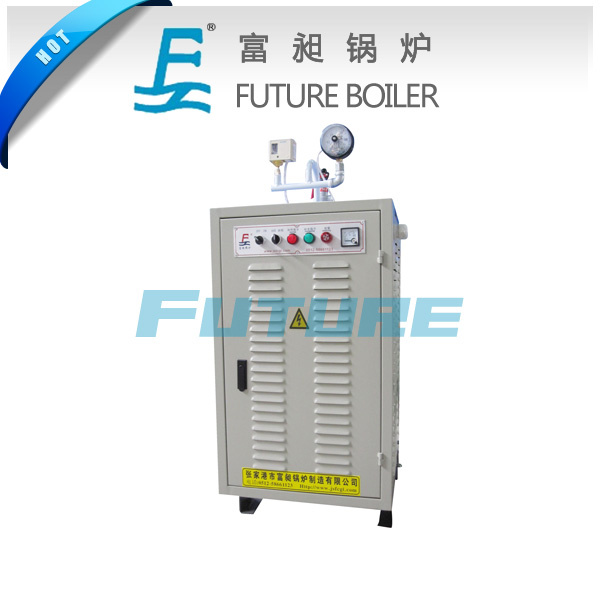

42-85Kg/h Electric Steam Generator Price:
I. Product Description:
"FUTURE" electric steam generator is run by power energy, no noise, no pollution. Using high quality heating elements, with a lower surface heat load and higher thermal efficiency. This product adopts cabinet design style, elegant appearance, compact internal structure and it's ideal for saving space.
1. Small Input Power(3-60KW) with higher output(4-85Kg/h).
2. Use of Nichrome Heating Element, it ensures long-term effective operation of the boiler.
3. Small output electric steam boiler has a compact structure with fast heating speed, reaching to use pressure by several minutes.
4. Unique built-in steam-water separator solved a problem of steam with water which brought by similar products.
II. Technical Parameters:
|
Model |
LDR0.042-0.7 |
LDR0.05-0.7 |
LDR0.065-0.7 |
LDR0.075-0.7 |
LDR0.085-0.7 |
|
Item |
Unit |
|
Rated Steam Capacity |
Kg/h |
42 |
50 |
65 |
75 |
85 |
|
Rated Working Pressure |
Bar / Psig |
7 / 101 (Made to order) |
|
Saturated Steam Temperature |
°C |
171 |
|
Input Power |
KW |
30 |
36 |
48 |
54 |
60 |
|
Input Current |
A |
45 |
54 |
72 |
81 |
90 |
|
Power Source |
V/Hz |
380,50 (Made to order) |
|
Water Inlet |
DN |
15 |
15 |
20 |
20 |
25 |
|
Steam Outlet |
DN |
15 |
20 |
25 |
20 |
25 |
|
Blowdown Valve |
DN |
15 |
15 |
25 |
20 |
25 |
|
Safety Valve |
DN |
15 |
15 |
25 |
20 |
25 |
|
Overall Dimension(L*W*H) |
mm |
920×700×1200 |
960×750×1400 |
990×820×1590 |
|
Weight |
kg |
132 |
160 |
200 |
220 |
260 |
