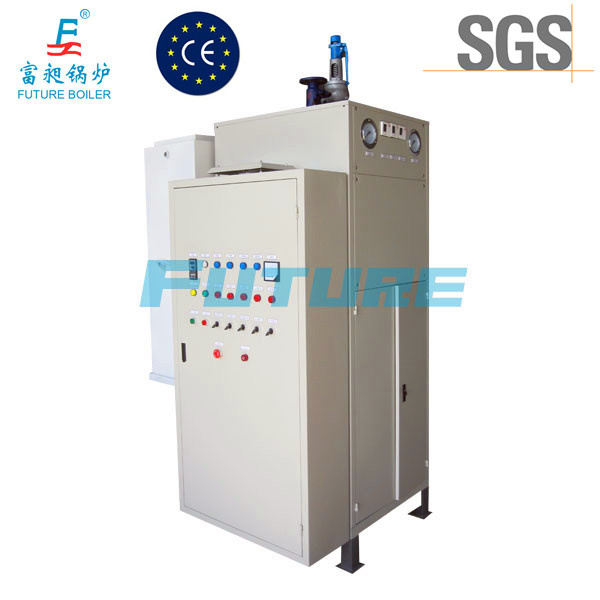

400kg/H Steam Generator Electrical (288kW)
| Price: |
US $ 12000-12500/Set |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,D/P |
400kg/h Steam Generator Electrical(288kW):
I. Product Description:
"Future" Steam Generators Electrical type have the higher thermal efficiency while radiation loss is minimal. With a carefully calculated heat to steam ratio, operating pressure is achieved quickly with maximum efficiency. Electric boiler has no exhaust going out the stack as associated with fossil fuel, therefore, electric boiler will be environmentally friendly. There is no NOx emission to the atmosphere.
II. Details of of Steam Generator Electrical:2.1 Features:1) Electric steam boilers are efficient, quiet, and safe for your process needs.
2) Vertical design requires minimal floor space.
3) The heating elements are easily accessible-permit quick removal for service or inspection.
4) No NOX(Nitrogen oxides) emission. Electric boilers have no wasted fuel going out the stack as electric boilers are environmentally friendly.
5) Completely wired control panel box located in front of the boiler.
6) All electrical components have demonstrated signs CE and equipped with world famous brands (SCHNEIDER, SIMENS, OMRON, and LG) to ensure product safety and service life.
7) 98% thermal efficient because the heating elements (CE tested) are totally immersed in water.
8. Power switch function to allow different steam using requirement.
9. Heating elements start one by one, reducing the electric loading.
IDEAL FOR CLOTHES PRESSING, LAUNDRY, HOSPITAL, FOOD PROCESSING AND STEAM ROOM APPLICATIONS etc...

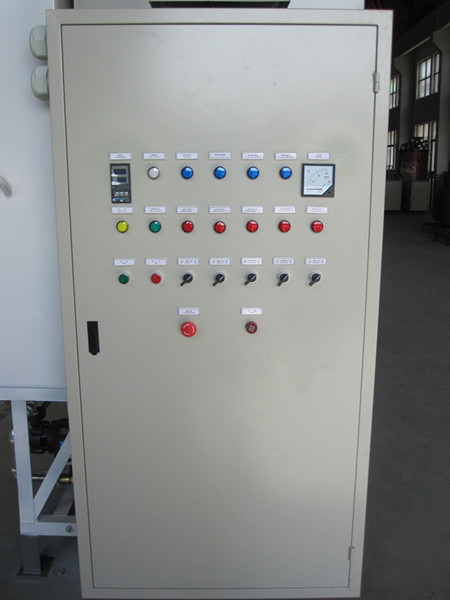

2.2 Integrated Electric Control Cabinet:
2.3 Finished Products:
III. Why Choose Us! We are a professional steam generator manufacturer and exporter.
We're very sincerely looking for long-term win-win business here.
Major exports include electric steam boiler, oil (gas) steam boiler, oil (gas) hot water boiler, and oil (gas) thermal oil boiler and marine boiler, etc.
We warmly welcome you to enquiry us, and also appreciate any of your comments!
IV. Technical Parameters:
|
Model |
LDR0.1-0.8 |
LDR0.15-0.8 |
LDR0.2-0.8 |
LDR0.25-0.8 |
LDR0.3-0.8 |
LDR0.4-0.8 |
LDR0.5-0.8 |
|
Item |
Unit |
|
Rated Steam Capacity |
Kg/h |
100 |
150 |
200 |
250 |
300 |
400 |
500 |
|
Rated Working Pressure |
MPa (bar) |
0.8 / 8 (Made to order) |
|
Saturated Steam Temperature |
°C |
175 (Made to order) |
|
Input Power |
KW |
72 |
108 |
144 |
180 |
216 |
288 |
360 |
|
Input Current |
A |
113 |
169.2 |
235 |
270 |
329 |
432 |
547 |
|
Voltage |
V/Hz |
380,50 (Made to order) |
|
Water Inlet |
DN |
15 |
25 |
25 |
25 |
25 |
25 |
25 |
|
Steam Outlet |
DN |
25 |
25 |
32 |
32 |
32 |
32 |
40 |
|
Blowdown Valve |
DN |
25 |
25 |
32 |
32 |
32 |
32 |
32 |
|
Safety Valve |
DN |
25 |
25 |
25 |
32 |
32 |
32 |
40 |
|
Dimension |
mm |
1020×1230
×1750 |
1250×1400×1870 |
1320×1510×2100 |
1380×1600×2360 |
|
Weight |
Kg |
280 |
320 |
410 |
650 |
770 |
850 |
960 |
| Prod Model: |
LDR0.4-0.8 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Steam Generator Electrical: |
400kg/H Steam Generator Electrical |
| Brand Name: |
Future Boiler |
| Input Power: |
288kw |
| Rated Current: |
432A |
| Steam Capacity: |
400kg/Hr |
| Rated Working Pressure: |
0.8MPa (Made to Order) |
| Main Power Source: |
3phase 220, 240, 380, 400, 415, 440, 480V |
| Heating Element: |
#321 Stainless Steel, Titanium Tube |
| Certificate: |
CE, Asme, SGS |
| Lead Time: |
20 Days/Set |
| Function: |
Steam Boilers |
| Fuel: |
Electric Heating |
| Usage: |
Industrial |
| Pressure: |
Low Pressure |
| Drum Placement: |
Vertical Boiler |
| Media: |
Steam |
| Installation: |
Packaged Boiler |
| Manufacturing Level: |
B |
| Burning Style: |
None |
| Structure: |
Tubular |
| Water Circulation: |
Boiling Boiler |
