2 (3) Wy Horizontal Marine Steam Generator
| Price: |
US $ 20300-22800/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,D/P |

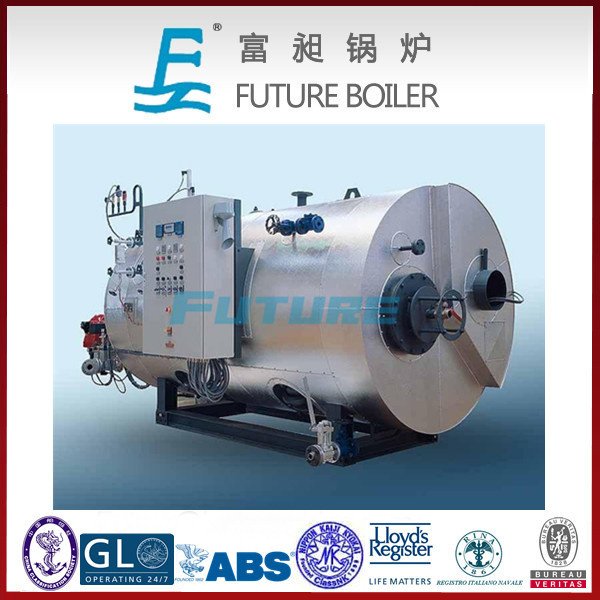

Horizontal Marine Steam Generator
1. Introduction:
The boiler is a horizontal smoke-tube steam generator. The oil fired section consists of a water cooled furnace, a smoke tube convection section as well as a water space and a steam space.
All steel plates are shot blasted and primes, and before shipment the boiler is given a shop coat of anti-corrosion paint in order to provide it with a temporary protection against weather.

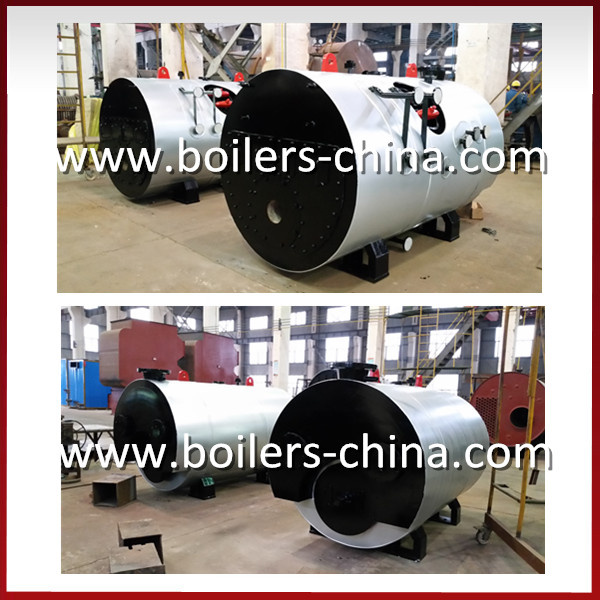

The boiler is designed and manufactured to comply with latest requirements of the classification societies CCS and will be delivered with the certificates.Details of Marine Steam Generator:1) Finished Products in Factory:

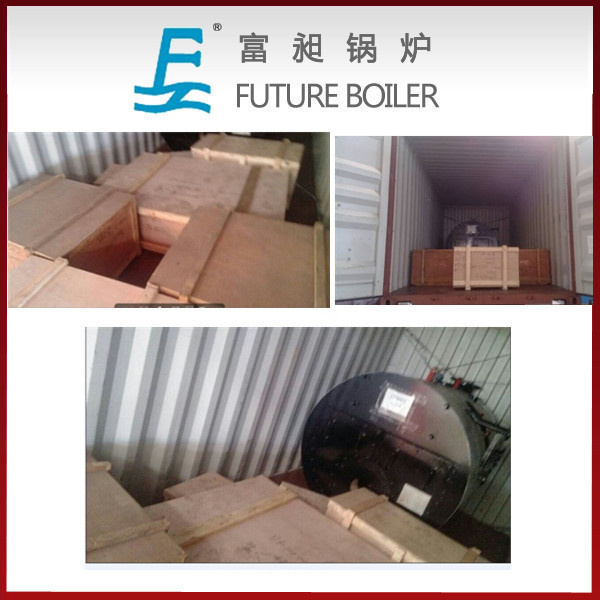

2) Transportation:
3. Technical Parameters:| Model/Data | 3WY0.5 | 3WY0.7 | 2WY1.0 | 3WY1.0 | 2WY1.5 | 3WY2.0 | 3WY2.5 | 3WY3.0 | 3WY3.5 | 3WY4.0 | 3WY5.0 | 3WY6.0 |
| Rated steam output (t/h) | 0.5 | 0.7 | 1.0 | 1.0 | 1.5 | 2.0 | 2.5 | 3.0 | 3.5 | 4.0 | 5.0 | 6.0 |
| Rated working pre (MPa) | 0.7 ( 1.0) |
| Saturated steam temp. (° C) | 171 (184) |
| Supply water temp.(° C) | 60 |
| Applicable fuel | Marine Diesel Oil, Heavy Fuel Oil/Marine Gas Oil |
| Light oil(kg/h) | 34 | 47.6 | 68 | 68 | 102 | 136 | 170 | 205 | 240 | 272 | 340 | 410 |
| Heavy oil(kg/h) | 35.4 | 49.5 | 70.7 | 70.7 | 106 | 141.5 | 177 | 213 | 249 | 283 | 354 | 426 |
Overall
Dimension
(L×W×H) | mm | 2860 | 2950 | 3740 | 3780 | 4290 | 4180 | 4530 | 4980 | 5360 | 5430 | 5620 | 5860 |
| 1570 | 1750 | 2020 | 1920 | 1710 | 2300 | 2590 | 2700 | 2820 | 3020 | 3100 | 3200 |
| 1850 | 1850 | 2370 | 2340 | 2315 | 2620 | 2700 | 2900 | 3070 | 3280 | 3480 | 3480 |
| Voltage(V) | 380 50Hz (Made to order) |
| Net Weight(t) | 3.3 | 3.45 | 4.6 | 4.8 | 6.0 | 7.0 | 8.6 | 10.5 | 12.3 | 14.5 | 15 | 16.8 |
| Prod Model: |
2(3)WY Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Marine Steam Generato: |
Horizontal Marine Steam Generator |
| Classification: |
CCS,Dnv,ABS,Nk,BV,Gl,Lr,RS,Kr,Irs |
| Available Fuel: |
Mdo, Hfo, Low Sulfur Oil |
| Steam Capacity: |
500-6000 Kg/H |
| Design Pressure: |
0.8MPa |
| Cladding Material: |
Galvanized Steel Sheets |
| Main Power Source: |
3p/220-600V/50-60Hz |
| Insulation Thickness: |
80-150mm |
| Lead Time: |
40-150days/Set |
| After-Sales Service Provided: |
Engineers Available to Service Overseas |
| Function: |
Steam Boilers |
| Fuel: |
Oil-Fired |
| Pressure: |
Low Pressure |
| Burning Style: |
Chamber Combustion Boiler |
| Structure: |
Fire Tube |
| Drum Placement: |
Horizontal Boiler |
| Media: |
Steam |
| Installation: |
Packaged Boiler |
| Water Circulation: |
Natural Circulation |
| Manufacturing Level: |
B |
| Usage: |
Ship Cleaning, Oil Tanker & LPG Tanker Heating,etc |
