Name:

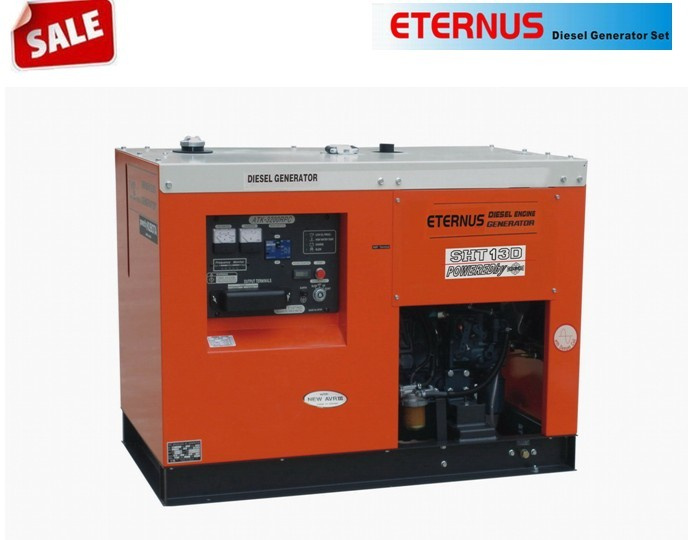

silent Power Big Diesel Generator (Sht13D)
Generator Set:
Yes
Engine:
Honda/Kohler/YAMAHA/Vangard/Cummins/China Engine
Fuel:
Gasoline/Diesel
Output Power:
0-30 Kw
Frequency:
50/60 Hz
Cooling System:
Forced Air Cooling
Current:
AC/DC
Certificate:
CE, ISO 9001:2008, Saso, Tlc
Lead Time:
30 Days
Type:
Basic Diesel Generator
Installation Method:
Fixed
Stroke:
Four Stroke
Cooling Method:
Wind Cooling
Output Type:
AC Three Phase
Product Description
PRODUCT DETAILS
Engine: Changchai CZ380Q Engine type: Water cooled, 4-stroke, three cylinders Starting system: Electric start Displacment: 1357CC Frequency: 50Hz Rated voltage: 220V Rated power: 10.8kw Max. Power: 12.4kw Fuel tank capaity: 30L Phase: Single Poles: 2 Drivertrain: Drict-coupled Sound level (dB(A)/7m): 76 100% copper coil AVR
Model
SHT13D
SHT15D
SHT20D
SHT23D
SHT25D
SHT30D
Dimensions(mm)
1350× 750× 800
N. W(kg)
400
410
425
450
480
490
Generator
Rated output
10.8kw
13.5kw
15.2kw
17.5kw
20.3kw
25.0kw
Max. output
12.4kw
14.8kw
17.6kw
19.3kw
23.5kw
27.5kw
Frequency
50Hz
Phase
three
Factor
CosΦ =0.8
Voltage Tegulation Syatem
AVR
Poles
2
Dirvetrain
Direct-coupled
Voltage
380v/220v
Insulation
Stator & Rotor: F grade
Engine
Model
CZ380Q
CZ480Q
Speed
3000rpm
Type
Water cooled, 4 stroke, three cylinders
Water cooled, 4-stroke, four cylinders
Displacement
1357cc
1809cc
Starting system
Electric start
Oil consumption(1/h)
5.2
Fuel tank capacity(L)
Sound leveal [db(A)/7m]
76
77
78
79
80
80
