Prod Model: |
BHW210 |
Markets: |
South America,Southeast Asia,Africa,Mid East,Eastern Asia |
Name: |
Cost Effective Welder Generator (Bhw210) |
Generator Set: |
Yes |
Engine: |
Honda/Kohler/YAMAHA/Vangard/Cummins/China Engine |
Fuel: |
Gasoline/Diesel |
Output Power: |
0-30 Kw |
Frequency: |
50/60 Hz |
Cooling System: |
Forced Air Cooling |
Current: |
AC/DC |
Certificate: |
CE, ISO 9001:2008, Saso, Tlc |
Lead Time: |
30 Days |
Output Type: |
AC Single Phase |
Product Description
PRODUCT DETAILS

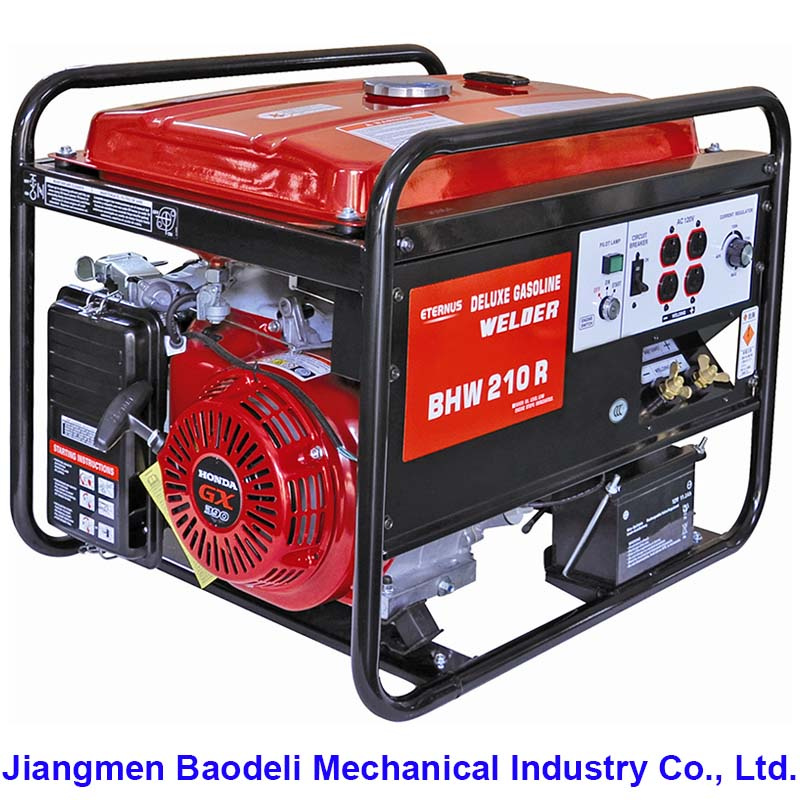

Cost Effective Welder Generator (BHW210)
1) Engine: Honda GX390
2) Engine type: Air-cooled, 4-stroke, OHV, single cylinder
3) Starting system: Recoil start ( Electric start available)
4) Displacement: 389.2CC
5) Frequency: 50Hz/60Hz
6) Rated Voltage: 220V, 240V/120V, 120V both available
7) Rated power: 5.0KW(AC)
8) Rated Max. Current: 200A
9) Load voltage: 28V
10) Fuel tank capacity: 25L
11) Current range: 60-190
12) Wire: 100% copper coil
13) Max. Current duty cycle: 32%
14) Applicable welding rod diameter: 2.5mm-5.0mm
MODEL | BHW190 | BHW210 |
Rated Voltage (V) | 230 | 230 |
Rated Frequency (A) | 9.1 | 15.2 |
Output Max. (KW) | 2.2 | 4.0 |
Rated Ouput (kW) | 2.0 | 3.5 |
Rated Frequency (Hz) | 50 | 50 |
Poer Factor | Cos φ1.0 | Cosφ1.0 |
Voltage Adjust | Auto-Ajust | Auto-Adjust |
Engine Model | HONDA GX390/KOHLER | HONDA GX390/KOHLER |
Output Max. | 8.2kW/3600rpm | 8.2kW/3600rpm |
BorexStroke (mm) | 88x64 | 88x64 |
Compression Ratio | 8.5:1 | 8.5:1 |
Starting System | Recoil | Recoil |
Ignition System | CDL | CDL |
Fuel Capacity (L) | 17 | 25 |
Oil Capacity | 0.6 | 0.6 |
Engine Model | OHV25'' Inclined; 1-Cylinder;4 Stroke | OHV25'' Inclined; 1-Cylinder;4 Stroke |
Noise (7 Meters Away) | 80dB | 82dB |
N.W/T.W (kg) | 85/87 | 88/90 |
Overall Dimesnsions (mm) | 580x425x430 | 580x425x430 |
20' Container (Set) | 128 | 87 |
COMPANY PROFILE
JIANGMEN BAODELI MECHANICAL INDUSTRY CO.,LTD. Is a HONKONG-funded enterprise,which is located in the Pearl River Delta of Guangdong nearby HongKong,Macao and Taiwan with convenient transport service.
BAODELI is specialized in research,developement,manufacture and sale of gasoline and diesel generator sets with high-tech power and best electronical systems.BAODELI had advanced production and test equipment for products research with quality management system of certification ISO9001:2008,CE,SASO,3C and JB/T 10304-2001
ETERNUS as the top brand of generator sets of BAODELI which is authorized OEM for HONDA,VANGUARD,MITBISHI and KOHLER engines with professional comprehensive performance test systems,the products all are comply with international standards of ISO8528 generator testing.
The main products are 2KW ~ 18KW gasoline generator sets with HONDA,KOHLER and VANGUARD engines.And 8 KW ~20KW diesel generator sets wits MITSUBISHI,Cummins and Changzhou diesel engines.The units are professional design,light,low noise,durable.
BAODELI strictly implements Japanese technoloogies,process assembly,compact units,powerful output,electric AVR adjustment,stable voltage,simple operation,convenient maintenance and so on.
The generator sets are widly used in majority enterprises such as telecon,bank,railway,oil field,construction,army,security systems etc.
Our products had sold in domestic market and exported to Europe,South America,Southeast Asia,Hongkong and Taiwan etc.
Science and technology as guide,strive for survival on the basis of quality as the tenet of BAODELI,which are offering the environment protection and high quality products.
