Prod Model: |
BVT3200/T3 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Name: |
Home Use China Portable Generator (Bvt3200/T3) |
Generator Set: |
Yes |
Engine: |
Honda/Kohler/YAMAHA/Vangard/Cummins/China Engine |
Fuel: |
Gasoline/Diesel |
Output Power: |
0-30 Kw |
Frequency: |
50/60 Hz |
Cooling System: |
Forced Air Cooling |
Current: |
AC/DC |
Certificate: |
CE, ISO 9001:2008, Saso, Tlc |
Lead Time: |
30 Days |
Output Type: |
AC Single Phase |
Power: |
14kw |
Product Description
PRODUCT DETAILS

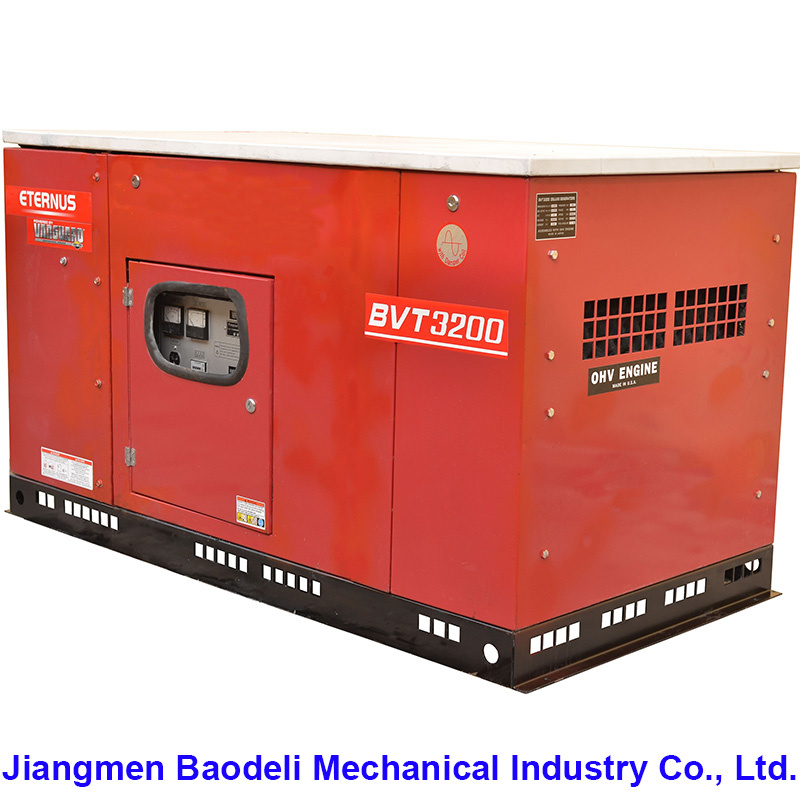

Home use China Portable Generator (BVT3200/T3)
Rated output power(kVA): 14/15
Output max(kw): 15/16
Rated frequency(Hz): 50/60
Rated voltage(V): 230/400
Rated current(A): 25.2/27
DC output: /
Power factor(cos): 0.8(lag)
Phase: 3 phase
Noise(7 meter away): 72dB
Fuel capacity(L): 40
Fuel:90# or higher grade
Fuel consumption rate (g/kW*h): ≤306
Lubrication oil capacity: 2.3
Oil alert system: Yes
Engine model: BRIGGS&STRTTON 543477/KOHLER/34HP
Engine type: double cylinder, 4-stroke, OHV
Rated power [kW(HP)/rpm]: 22.8/3600
Displacement [ml(cu. In)]: 895
Cooling system: forced air cooling
Bore*stroke(mm): 85.5*78
Net dimensions(mm): 1640*830*900
Net weight (kg): 415.6
Starting system recoil/electric starter
20'/40' FCL(PCS): 112
COMPANY PROFILE
JIANGMEN BAODELI MECHANICAL INDUSTRY CO.,LTD. Is a HONKONG-funded enterprise,which is located in the Pearl River Delta of Guangdong nearby HongKong,Macao and Taiwan with convenient transport service.
BAODELI is specialized in research,developement,manufacture and sale of gasoline and diesel generator sets with high-tech power and best electronical systems.BAODELI had advanced production and test equipment for products research with quality management system of certification ISO9001:2008,CE,SASO,3C and JB/T 10304-2001
ETERNUS as the top brand of generator sets of BAODELI which is authorized OEM for HONDA,VANGUARD,MITBISHI and KOHLER engines with professional comprehensive performance test systems,the products all are comply with international standards of ISO8528 generator testing.
The main products are 2KW ~ 18KW gasoline generator sets with HONDA,KOHLER and VANGUARD engines.And 8 KW ~20KW diesel generator sets wits MITSUBISHI,Cummins and Changzhou diesel engines.The units are professional design,light,low noise,durable.
BAODELI strictly implements Japanese technoloogies,process assembly,compact units,powerful output,electric AVR adjustment,stable voltage,simple operation,convenient maintenance and so on.
The generator sets are widly used in majority enterprises such as telecon,bank,railway,oil field,construction,army,security systems etc.
Our products had sold in domestic market and exported to Europe,South America,Southeast Asia,Hongkong and Taiwan etc.
Science and technology as guide,strive for survival on the basis of quality as the tenet of BAODELI,which are offering the environment protection and high quality products.
