Name:
5kw 5kVA Honda Engine Gasoline Generator with CE (
Generator Set:
Yes
Engine:
Honda/Kohler/YAMAHA/Vangard/Cummins/China Engine
Fuel:
Gasoline/Diesel
Output Power:
0-30 Kw
Frequency:
50/60 Hz
Cooling System:
Forced Air Cooling
Current:
AC/DC
Certificate:
CE, ISO 9001:2008, Saso, Tlc
Lead Time:
30 Days
Output Type:
AC Single Phase
Power:
5kw
Product Description
PRODUCT DETAILS

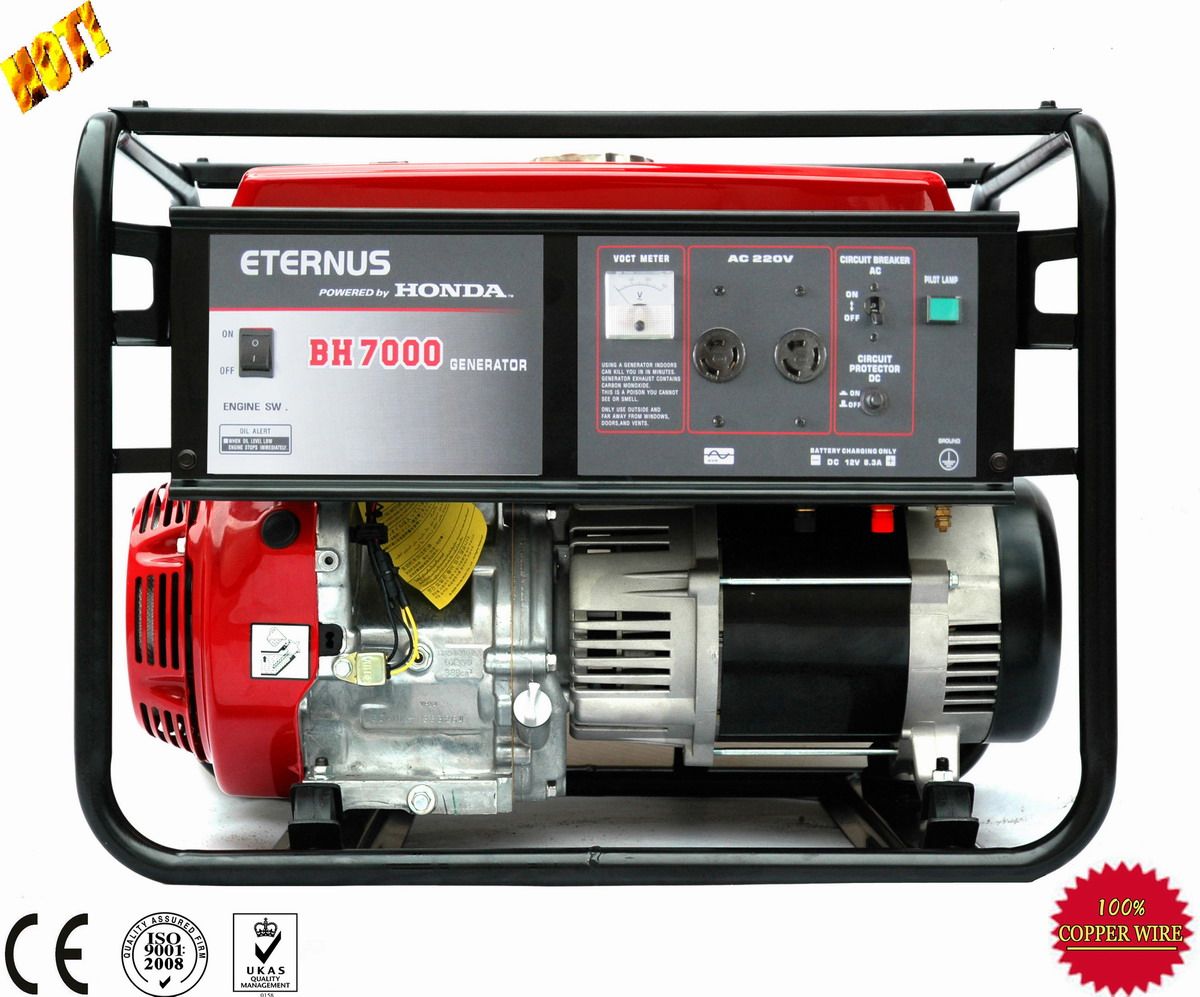

5kw 5kVA Honda Engine Gasoline Generator with CE ((BH7000E) 1) Engine: Honda GX390 2) Engine type: Air-cooled, 4-stroke, OHV, Single cylinder 3) Starting system: Recoil and Electric start 4) Dispalcement: 389.2CC 5) Frequency: 50Hz/60Hz 6) Rated voltage: 220V/(110/120/230/240V) 7) Rated power: 5.0kVA 8) Max. Power: 5.5kVA 9) Phase: Single 10) 100% copper coil 11) AVR
Gasoline generator
BH2900DX
BH5000DX
BH7000DX
BH7000DXE
BH8000DX
BH8000DXE
BH11000
BH13000
BH15000
Engine
Model
GX160
GX270
GX390
GX630
GX690
GX690
Type
4-Stroke OHV 1 cylinder
4-Stroke OHV 2 cylinders
Displacement
163 cm³
270.1 c m³
389.2 cm³
614 cm³
688cm³
688 cm³
Bore x Stroke
68x45mm
77x58mm
88 x 64 mm
77x66 mm
77x72 mm
78x72 mm
Cooling system
Air cooling
Starting system
Recoil
Recoil+ Electric
Recoil
Recoil+ Electric
Electric
Fuel tank capacity
25 L
25 L
Generator
Rated voltage
220V/(110/120/230/240V)
220V
220V (120V/240V)
230V(120V/240V)
Rated frequency
50Hz / 60Hz
50Hz / 60Hz
Rated current
8.7A(9.1A)
13.0A(13.6A)
21.7A(22.73A)
26A
38.6A (79.2A/ 39.6A)
47.7A (95.8A/ 48.9A)
47.8A (100A/ 50A)
Rated output
2.0kVA
3.0kVA
5.0kVA
6.0kVA
8.5kVA (9.5kVA)
10.5kVA (11.5kVA)
11.0kVA (12.0kVA)
Max. output
2.2kVA
3.3kVA
5.5kVA
6.2kVA
9.5kVA (10.5kVA)
11.5kVA (12.5kVA)
12.0kVA (13.2kVA)
Rated power factor
CosΦ = 1
Phase
Single
Other
Length x width x height(mm)
615x430x 430
680x510x 495
690x510.520
870x510.520
690x510x520
870x510x520
935 x 617x 622
Net weight(kg)
41.5
70
75.5
81
77
82.5
188
195
195
COMPANY PROFILE
JIANGMEN BAODELI MECHANICAL INDUSTRY CO.,LTD. Is a HONKONG-funded enterprise,which is located in the Pearl River Delta of Guangdong nearby HongKong,Macao and Taiwan with convenient transport service.
BAODELI is specialized in research,developement,manufacture and sale of gasoline and diesel generator sets with high-tech power and best electronical systems.BAODELI had advanced production and test equipment for products research with quality management system of certification ISO9001:2008,CE,SASO,3C and JB/T 10304-2001
ETERNUS as the top brand of generator sets of BAODELI which is authorized OEM for HONDA,VANGUARD,MITBISHI and KOHLER engines with professional comprehensive performance test systems,the products all are comply with international standards of ISO8528 generator testing. The main products are 2KW ~ 18KW gasoline generator sets with HONDA,KOHLER and VANGUARD engines.And 8 KW ~20KW diesel generator sets wits MITSUBISHI,Cummins and Changzhou diesel engines.The units are professional design,light,low noise,durable. BAODELI strictly implements Japanese technoloogies,process assembly,compact units,powerful output,electric AVR adjustment,stable voltage,simple operation,convenient maintenance and so on. The generator sets are widly used in majority enterprises such as telecon,bank,railway,oil field,construction,army,security systems etc. Our products had sold in domestic market and exported to Europe,South America,Southeast Asia,Hongkong and Taiwan etc. Science and technology as guide,strive for survival on the basis of quality as the tenet of BAODELI,which are offering the environment protection and high quality products.
COMPANY PROFILE
JIANGMEN BAODELI MECHANICAL INDUSTRY Co., Ltd. is a HONKONG-funded enterprise, which is located in the Pearl River Delta of Guangdong nearby HongKong, Macao and Taiwan with convenient transport service.
BAODELI is specialized in research, developement, manufacture and sale of gasoline and diesel generator sets with high-tech power and best electronical systems. BAODELI had advanced production and test equipment for products research with quality management system of certification ISO9001: 2008, CE, SASO, 3C and JB/T 10304-2001
Our company was established in 2004, in generator manufacturing industry has 10 years of technical research, specializing in the production of gasoline and diesel generators, water pumps and various kinds of garden tools.
ETERNUS as the top brand of generator sets of BAODELI which is authorized OEM for Honda, VANGUARD, MITBISHI and KOHLER engines with professional comprehensive performance test systems, the products all are comply with international standards of ISO8528 generator testing.
The main products are 2KW ~ 18KW gasoline generator sets with Honda, KOHLER and VANGUARD engines. And 8 KW ~20KW diesel generator sets Wits MITSUBISHI, Cummins and Changzhou diesel engines. The units are professional design, light, low noise, durable.
BAODELI strictly implements Japanese technoloogies, process assembly, compact units, powerful output, electric AVR adjustment, stable voltage, simple operation, convenient maintenance and so on.
The generator sets are widly used in majority enterprises such as telecon, bank, railway, oil field, construction, army, security systems etc.
Our products had sold in domestic market and exported to Europe, South America, Southeast Asia, Hongkong and Taiwan etc.
Science and technology as guide, strive for survival on the basis of quality as the tenet of BAODELI, which are offering the environment protection and high quality products.
