Prod Model: |
FDV-500W |
Markets: |
North America,South America,Eastern Europe,Africa,Oceania,Mid East,Western Europe |
Rated Power: |
500W |
Rotor Diameter: |
1.3m |
Rated Rotor Speed: |
150r/Min |
Phase: |
Three Phase |
Product Description

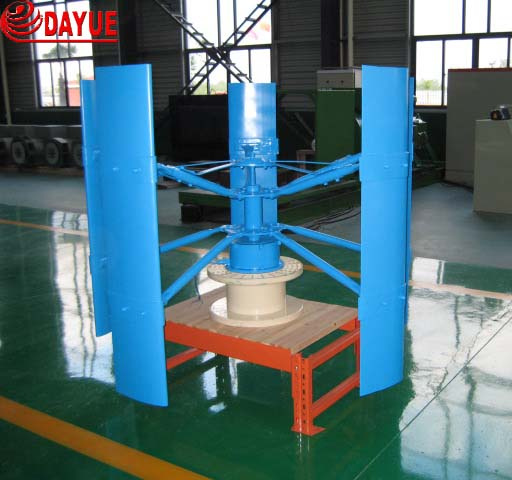

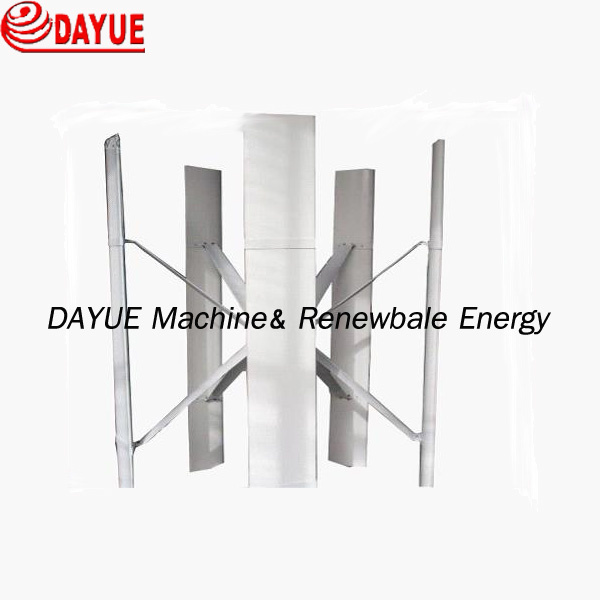

FDV-500W vertical axis wind turbine /wind power generator1. This turbine is adopted
maglev axis2. With
5Pcs carboform & FRP blades, which can withstand more than 50m/s wind gust
3. With
electricmagnetic brake system4. Equipped with the hybrid controller, which can connect 1/3 solar panel of rated power of wind turbine
5.
Low noise (in 63db, testing in tower base under more than 18m/s wind speed )
6. Easy installation, it can be installed on rooftop of users
Model |
FDV-500 |
Power |
500W |
Rotor diameter |
1.3m |
Height of blades |
1.6m |
Number of blades |
5 Pcs |
Rated rotor speed |
150r/min |
Rated wind speed |
9-11m/s |
Start-up wind speed |
2.2m/s |
Work wind speed |
2.2-25m/s |
Survival wind speed |
50m/s |
Generator Output voltage |
AC24/48V |
Charge Voltage |
DC48V |
Inverter Output Voltage |
220Vac/50hz |
Tower type |
Free Standing Tower |
Height of tower |
8m |
Suggested Batteries |
4Pcs
12V100AH |

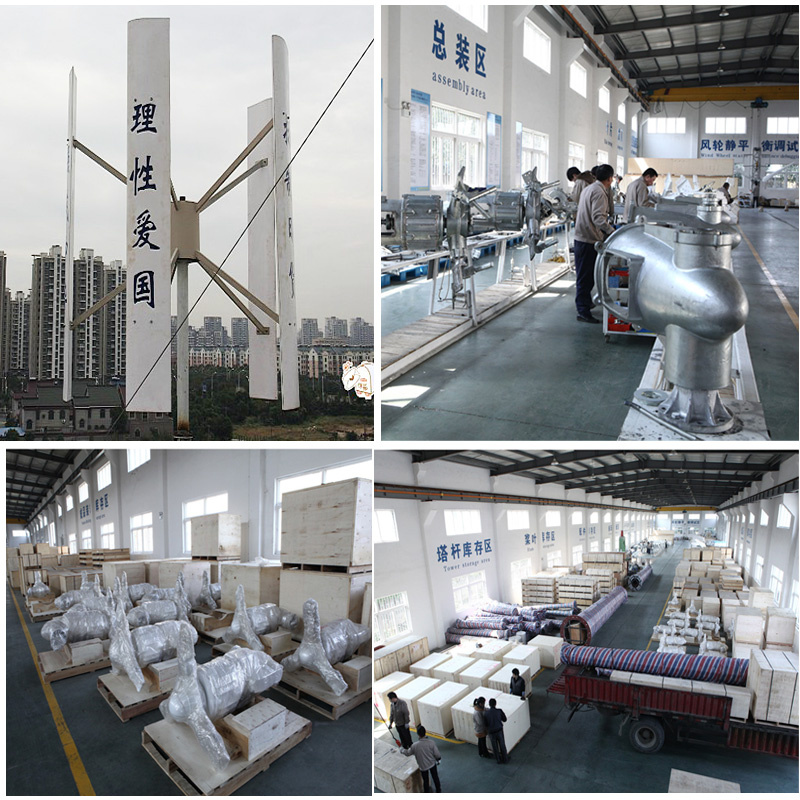

Wuxi Dayue Machine & Renewable Energy is a joint venture enterprise, which is involving in researching, developing, manufacturing alternative energy products and metal processing machinry for more than 17 years experience (Since 1994), now Dayue enterprise possesses two factories And one Export company.
The Dayue Renewable Energy Factory is specializing in designing and manufacturing the Alternative Energy Products including:
- FD series Horizontal Axis Fixed Blades Wind Turbine (300W-20KW)
-JD series Horizontal Axis Variable Pitch Blades Wind Turbine (2KW- 30KW)
-FDV series Vertical Axis Wind Turbine (300W-5KW)
-Wind & Solar Hybrid Street Light System (500W and 800W)
-Steel Pole (Floodlight Pole, Street Light Pole, Traffic Steel Pole)
These products have been strictly tested by SGS, Intertek, AOC testing institutions in China and obtained the CE certification, so far these products have been exported to UK, France, Germany, Portugal, Danmark, Poland, Italy, Canada, Kenya, USA, Mexico etc 63countries
In the Alternative Energy Field, Dayue just selecting the best electric elements such as on-grid controller, grid tied inverter, pure sine wave inverter with our on-grid version wind turbine, the grid tied inverter we selection which are produced by the professional factory and obtained the CE, G83, TUV certification;
There're good quality pure sine wave inverter with the FD series for off-grid version wind turbines, now we designed and successful tested the 500W & 900W wind and solar hybrid street lighting system for government's lighting project, which can be installed at low temperature -40 degree C to 50 degree C, this system can be installed at any places as street lighting in city and town.
If you are a serious users and rational investors, Dayue company will be you ideal cooperation partner, because you do not need to take any risks for you invest plan, we will provide you the technology and good quality products, even dispatch our technicians to assist you make the installation and commissioning etc A-Z service, just call or email to us.
