Rated Power:
10kw
Rotor Diameter:
6m Meters
Height Of Blades:
3.6meters
Rated Rotor Speed:
150r/Min
Number Of Blades:
5PCS
Start-up Wind Speed:
2m/S
Work Wind Speed:
2-25m/S
Survival Wind Speed:
50m/S
Model:
Fdv-10kw
Height Of Tower:
8m, 10m, 12m, 15m 18m, Optional
Number Of Blade:
Three Blade
Rotating Shaft:
Vertical
Stress Way Of Blade:
Lift Force
Phase:
3 Phase
Product Description

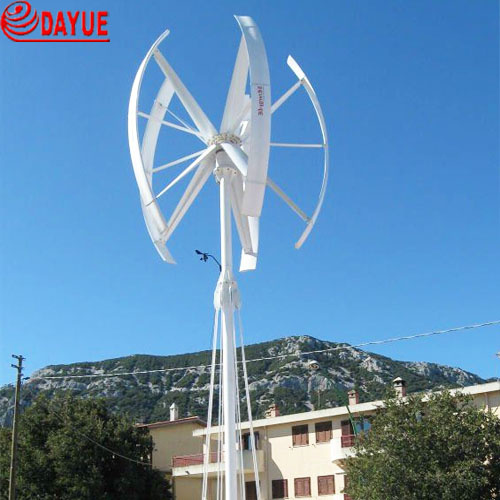

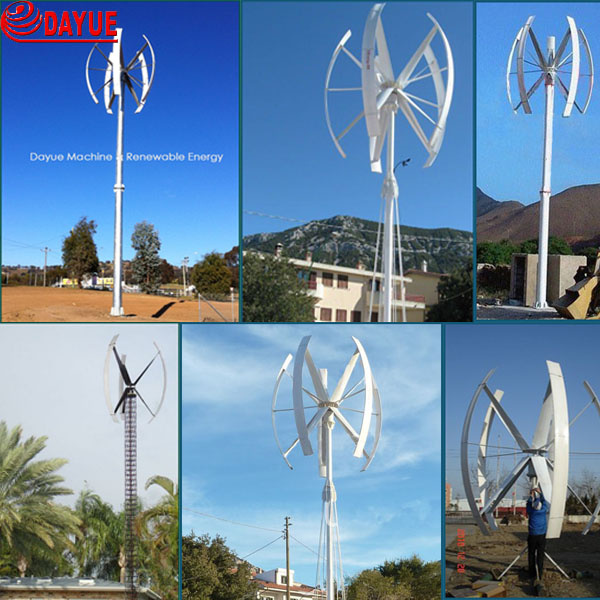

FDV-10KW Vertical Axis Wind Generator
This maglev vertical turbine is adopted maglev axis and can be used for on-grid and off-grid, we also supply complete system including the grid tie controller, grid tie inverter ,free standing tower or hydraulic tower optional .
1. Features :
-FDV-1KW-5KW VAWT which is running from 2m/s- 25m/s wind speed ,it is adopted the meglev axis technology for reducing friction between rotor and shaft , so the noise is really lower and can be installed at rooftop -JD-2KW-5KW HAWT (variable pitch blades) wind turbine can run from 3m/s -25m/s wind speed , it can be braked by disc-brake mechnism for automatic or manual way , it is a high quality ,high safety and high power generation efficiency wind system.
PS:if you want to know clearly and in depth the vertical wind turbine each details, designing , material, even the bolts mdels, plz click the "view video " buttom below the main picture, then you will see the FDV-10KW wind turbine complete installing steps and working conditions.
1. This turbine is adopted maglev axis and can be used for on-grid and off-grid, there's on-grid and off-grid controller and inverter we supply for this turbine
2. With 5PCS carboform & FRP blades, which can withstand more than 50m/s wind gust.
3. With electricmagnetic automatic brake system or by manual brake
4. Equipped with the hybrid controller, which can connect 1/3 solar panel of rated power of wind turbine
5. Low noise (in 63dB, testing in tower base under more than 18m/s wind speed )
6. Easy installation, it can be installed on rooftop of users
2. Wind Turbine Models Optional For Your House
- JD-2kW and FDV- 1KW or 2KW Wind Turbine (220Vac/50-60hz) : A family without more electric appliances, they can choose this unit just for powering lighting, TV set or DVD player , electric fans , computers , microwave ,refrigerator etc. pls note that it is difficult to use this unit power air condition or bigger water pump ,as well as electric water heater etc .
-JD-5kW and FDV-3KW or 5KW Wind Turbine (220Vac/50-60hz) : A family can use it power 1- 2 sets of air condition with 1 or 1.5P, and all of normal home electric appliances such above mentioned lighting, TV set or DVD player , electric fans , computers , microwave ,refrigerator etc.
For more details about our other products, pls feel free to visit our website www.chinawindsun.com or email us , we will try our best to assist you

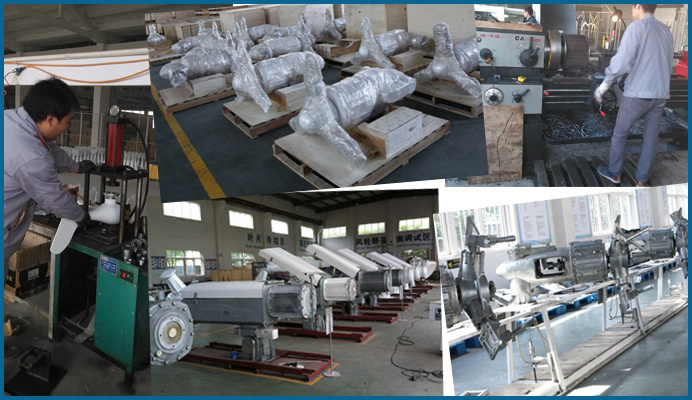

Our Factory:
Model
FDV-10000
Rated Power
10KW
Rotor diameter
6m
Height of blades
3.6m
Number of blades
5 Pcs
Rated rotor speed
150r/min
Rated wind speed
9-11m/s
Start-up wind speed
2m/s
Work wind speed
2-25m/s
Survival wind speed
50m/s
Generator Output voltage
AC220V/380V
Charge Voltage
DC120 or 240V
Inverter Output Voltage
220Vac/50hz
Tower type
Free Standing Tower
Height of tower
8m, 10m, 12m, 15m height for selection Hydraulic Tower and Free standing Tower Available
Suggested Batteries
20Pcs-12V100AH, or 10 Pcs -12V-150AH
PS:if you want to know clearly and in depth the vertical wind turbine each details, designing , material, even the bolts mdels, plz click the "view video " buttom below the main picture, then you will see the FDV-10KW wind turbine installing steps completely and working conditions.
Wuxi Dayue Machine & Renewable Energy is a joint venture enterprise, which is involving in researching, developing, manufacturing alternative energy products and metal processing machinry for more than 17 years experience (Since 1994), now Dayue enterprise possesses two factories And one Export company.
The Dayue Renewable Energy Factory is specializing in designing and manufacturing the Alternative Energy Products including:
- FD series Horizontal Axis Fixed Blades Wind Turbine (300W-20KW)
-Wind & Solar Hybrid Street Light System (500W and 800W)
-Steel Pole (Floodlight Pole, Street Light Pole, Traffic Steel Pole)
These products have been strictly tested by SGS, Intertek, AOC testing institutions in China and obtained the CE certification, so far these products have been exported to UK, France, Germany, Portugal, Danmark, Poland, Italy, Canada, Kenya, USA, Mexico etc 63countries
In the Alternative Energy Field, Dayue just selecting the best electric elements such as on-grid controller, grid tied inverter, pure sine wave inverter with our on-grid version wind turbine, the grid tied inverter we selection which are produced by the professional factory and obtained the CE, G83, TUV certification;
There're good quality pure sine wave inverter with the FD series for off-grid version wind turbines, now we designed and successful tested the 500W & 900W wind and solar hybrid street lighting system for government's lighting project, which can be installed at low temperature -40 degree C to 50 degree C, this system can be installed at any places as street lighting in city and town.
If you are a serious users and rational investors, Dayue company will be you ideal cooperation partner, because you do not need to take any risks for you invest plan, we will provide you the technology and good quality products, even dispatch our technicians to assist you make the installation and commissioning etc A-Z service, just call or email to us.
